5.8G 32CH 400MW HD 1.80P FPV Weirless Transmitter DV and Camera for Multicopter
Description:
- HD 1080p30fps
- Built in 4 band 400MW 32CH5.8GHz transmitter
- LENS rotation range: 45 degrees
- FOV Angel: 150 degrees (diagonal)
- PWM 5.Support remote controller
- Support OSD
Note:
- Please make sure the DV battery is full ; charging before using
- Connect the USB cable of micro 5Pin to the DV, the other end is connected to the 5V power supply (power adapter, PC or power bank)
- It takes about 90 minutes to charge. The charging LED is red, it turns green when the chargign is done.
- Please ensure that the power supply is not greater than 5V/1.2A , charging and recordign are at the same time.
- ThePWM remote control functions realize the remote control switch 3.
- ThePWM remote control functions can be realized when matched to the suitable liquid crystal display products.
- Press the power button for 3 seconds, then the PWM remote controller is on and the blue LED flashes. After that, press and enter the camera and camera review mode.
- Press and enter the checking mode menu system
- In the menu mode - press ESC key
- Press for 3 seconds to turn off the device
Picture key:
- Press once enters the review mode shooting
- Press once enters the video mode shooting
Recording key:
- Press once enters the recording review mode shooting
- Press 3, then it is the second time to enter the playing mode under the checking mode.
Video mode:
- Red LED flash when recording, the mark of REC is red.
- Video file will be automatically saved (REACH sets the video length), and create a new file to continue recording. (the recording time will be shown on the screen until the recording is stopped).
Remote / channel setting:
- Connect3P remote control cable to the receiver and the other end of the S1 end.
- Distribution channel, with the band / channel setting and distribution of the other 3 switch, CH band, CL channel
Remote camera control (should be with a LCD product ):
- Connect 3P remote control cable to the PWM channel to a receiver and the other end is connected to the camera's S2 port
- To arrange channel camera remote control port S2
- ConnectLCD remote monitor output port to the remote control input PWM. Then you can operate the camera through the LCD screen
External OSD device:
- Press UP/ DOWN key while in the camera view mode switch to OSD transmission mode. Then the video output to the external OSD and then back to the camera
- Press two buttons to return to the normal mode of video transmitter
Remote / channel setting:
- Connect 3P remote control cable to the receiver and the other end of the S1 PWM channel on the camera
- To distribute the channel, with the band / channel setting and distribution of the other 3 switch, CH band, CL channel
Remote camera control (should be with a LCD product):
- Connect 3P remote control cable to the PWM channel to a receiver and the other end is connected to the camera's S2 port
- To arrange channel camera remote control port S2
- Connect LCD remote monitor output port to the remote control input PWM. Then you can operate the camera through the LCD screen
External OSD device:
- Press UP/DOWN key while in the camera view mode switch to OSD transmission mode. Then the video output to the external OSD and then back to the camera
Press two button to return to the normal mode of video transmitter

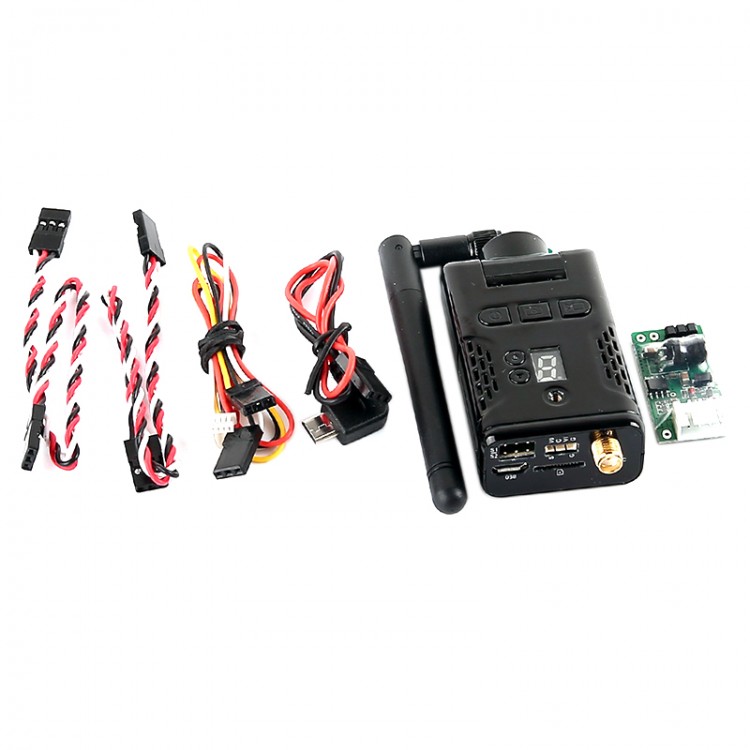

Package included:
- 1 x 5.8G 32CH 400MW HD 1.80P FPV Weirless Transmitter
