500MHZ-1000MHz 5-8W RF Power Amplifier RF Power Amp Module for Research EMC Test Radio Management

Application:

Due to its wide frequency range, high gain and high output power, it is mainly used for the driving stage and final stage of various RF transmitters. It can also be widely used in various scientific research experiments and EMC electromagnetic compatibility tests. In addition, thanks to the ultra-wide bandwidth, the RF amplifier can also be used for radio management to test full-band spectrum monitoring.

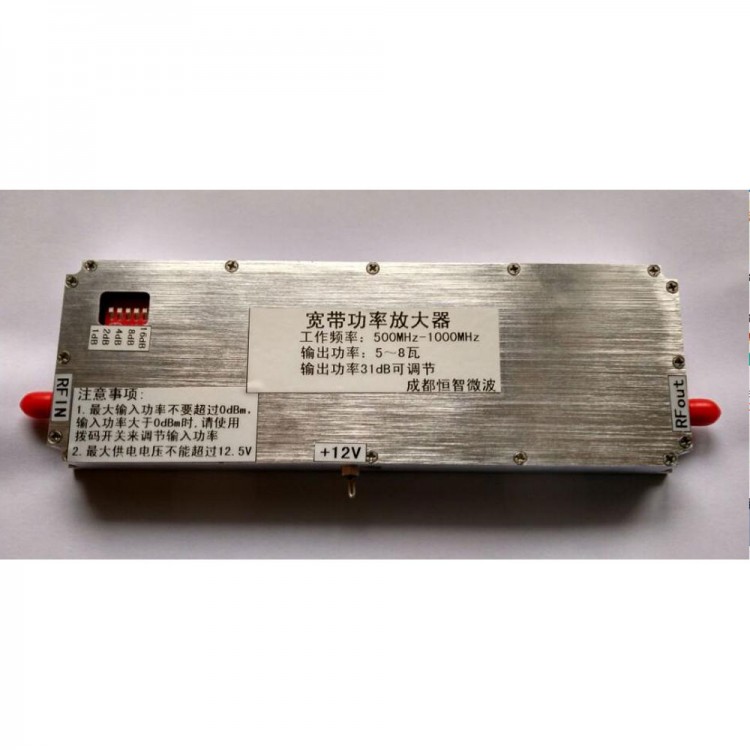

The RF power amp is made of aviation aluminum alloy milled out by CNC and it has high precision and light weight. Its appearance has been treated with natural conductive oxidation, so its conductivity and electromagnetic shielding effect are very good. Its power supply port adopts RF feed-through capacitor because the capacitor can effectively filter out clutter such as pulse spike on the power supply!

Advantages:
- Its output power is adjustable in 1dB steps, with attenuation range of 30dB (DIP switch can be used to adjust attenuation).
- The amplifier has a 3dB bridge synthesis network at the output, so there is no danger of burning the amplifier even if the output is not connected to a load or antenna for a short time! This is a unique feature which is not the feature of every amplifier.

Specifications:
- Working frequency: 500MHz-1000MHz
- Output power: 36.8dBm at 520MHZ; 38.5dBm at 650MHZ; 39dBm at 700MHZ; 38.8dBm at 800MHz; 38.5dBm at 900MHz
- Gain: 37dB (±1dB in-band spectrum ripple)
- Power supply: 12V 2A at 0dBm input power
- Size: 180 x 60 x 18mm/7.1 x 2.4 x 0.7"
- With 4 mounting screw holes

Attention:
1. The input power should not exceed 0dBm. If the input power exceeds 0dBm, please use the DIP switch on the amplifier module and reduce the input power to 0dBm before powering on.
2. The supply voltage must not exceed 12.5V.

Package Included:
- 1 x RF Amplifier
