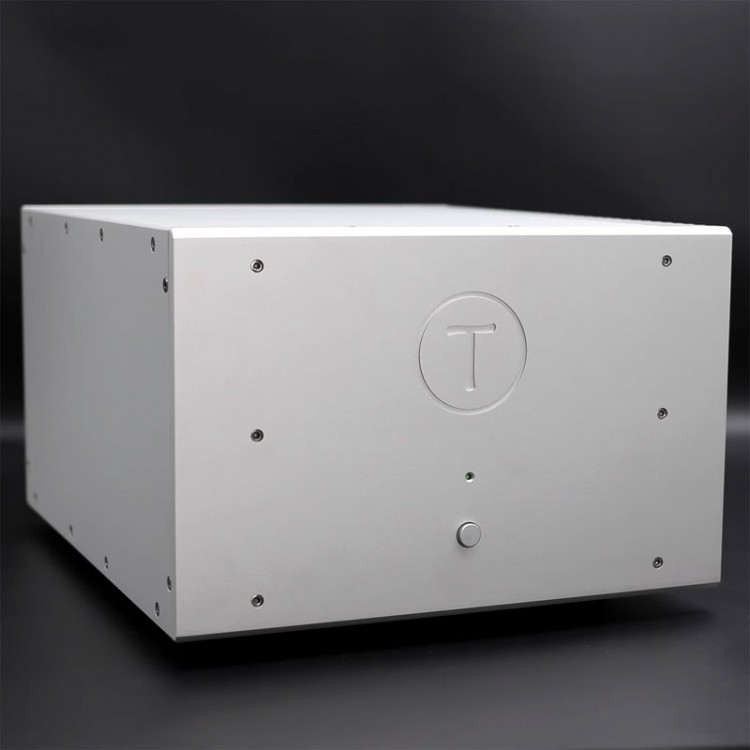

500W 8Ω Mono Amplifier Hi-End Fully Balanced Power Amplifier (T11PRO BC Capacitor Version Silver)

500W 8Ω Mono Amplifier Hi-End Fully Balanced Power Amplifier (T11PRO BC Capacitor Version Silver)

Upgrades:
* T11PRO features a flagship-class large housing, large transformer, and high output power, providing greater control.

Circuit Features:
* Derived from the fully symmetrical X-Amp ultra-fast power amplifier circuit for Burmester 909
* Fully DC-coupled circuit with high damping, capable of driving all low-sensitivity large speakers
* Completely true balanced input — this unit only has XLR balanced input
* Fully bridged circuit design
* Uses monoblock (single-channel) design
* Delivers rigorous sound: high resolution, first-class control, and exceptional bass performance

Design and Materials:
* There is an extra-large heavy housing (340×415×240mm), with a 15mm thick front panel and the rest made of 5mm aluminum plates. The whole unit features top-tier heat dissipation performance.
* Uses two original 600W transformers (for Nippon Steel) in parallel, delivering superior low-frequency performance.
* It is equipped with twelve 10,000µF audio-grade electrolytic capacitors.
* Fourteen pairs of precision-matched, genuine power transistors (for Sanken) in a fully balanced bridged configuration — 7 push pairs and 7 pull pairs — providing unlimited driving force.
* Very large static current, with each transistor running at 100mA
* Comprehensive speaker protection effectively safeguards your expensive speakers.
* It features soft-start at power-on and DC power supply filtering.
* Exceptional control capability, ultra-high resolution, and ultra-high signal-to-noise ratio.
* Massive exposed heatsink integrated into a full aluminum chassis
* Supports both RCA single-ended and XLR balanced inputs
* Four binding post outputs support bi-wiring speaker connection

AP-Assisted Design and Test Parameters:
* Test Conditions: Data tested with 8Ω 800W load
* Output RMS Voltage: 55.86Vrms
* Channel Gain: 30.9 (35.2 times)
* Signal-to-Noise Ratio: 116.3dB
* Dynamic Range: 116.3dB
* THD: 0.0008%
* THD + Noise: 0.0026%
* Frequency Response Bandwidth: ±0.021dB
* Input Sensitivity: 1.58Vrms
* Damping Factor: 2000
* Amplifier Weight: Over 28kg
* Static Power Consumption: Over 130W (Class AB design)
* Output Power: 500W at 8Ω, 1000W at 4Ω — easily drives large high-power speakers
* Housing Color: Silver or Black
* Power Supply Voltage: AC 110V or AC 220V

Quality Assurance and After-Sales Service:
* To ensure quality, each amplifier undergoes comprehensive AP testing to meet design specifications.
* Tests include bandwidth, noise (signal-to-noise ratio), dynamic range, distortion, intermodulation distortion, channel separation, amplification gain, and more.
* The entire unit undergoes a 72-hour burn-in test; the amplifier is subjected to full-load 8Ω testing for 1 hour, followed by more than 1 hour of listening tests.
* The whole unit has a 1-year warranty.

Packing List:
* 1 x Set of Power Amp

Packaging Details:
* Weight: 30kg
