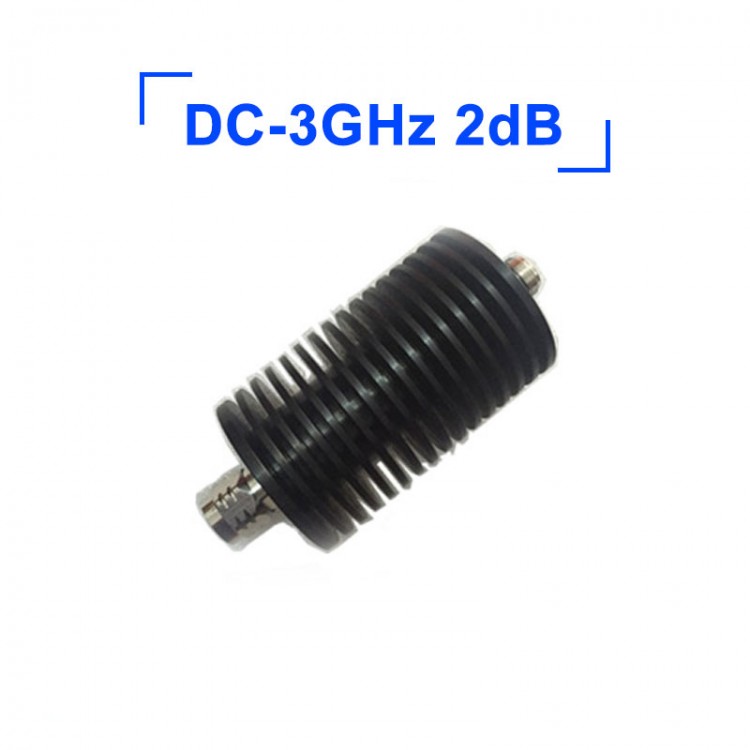

50W DC-3GHz 2dB Quality RF Attenuator Coaxial Fixed Attenuator Designed with N Type Connectors
Description:
Attenuator is an electronic component that provides attenuation. It can be used to adjust the size of the signal in the circuit. It can also be used to directly read the attenuation value of the measured network in comparative measurement circuits. It can also be used to improve impedance matching.
The coaxial fixed attenuator has a wide working frequency band, low standing wave coefficient, and good anti-pulse and anti-burnout performance.
Features:
- RF coaxial fixed attenuator: safe and durable to use
- Exquisite craftsmanship: extremely high hardness and abrasion resistance
- Low insertion loss and high conductivity
- High safety and good heat dissipation performance
- Can be used widely
- Premium quality: durable, high precision and high efficiency
Technical Data:
- Frequency range: DC-3GHz
- Power: 50W
- Attenuation: 2dB
- Max. VSWR: 1.2
- Impedance: 50Ω
- RF Connector): N-M (IN); N-F (OUT)
- Temperature: -20 to +70℃
- Weight: 0.4Kg/0.9Lb
- Dimensions: Diameter 60 x 134.5mm/2.4 x 5.3"
- Certification: RoHS
Package Included:
- 1 x Attenuator
