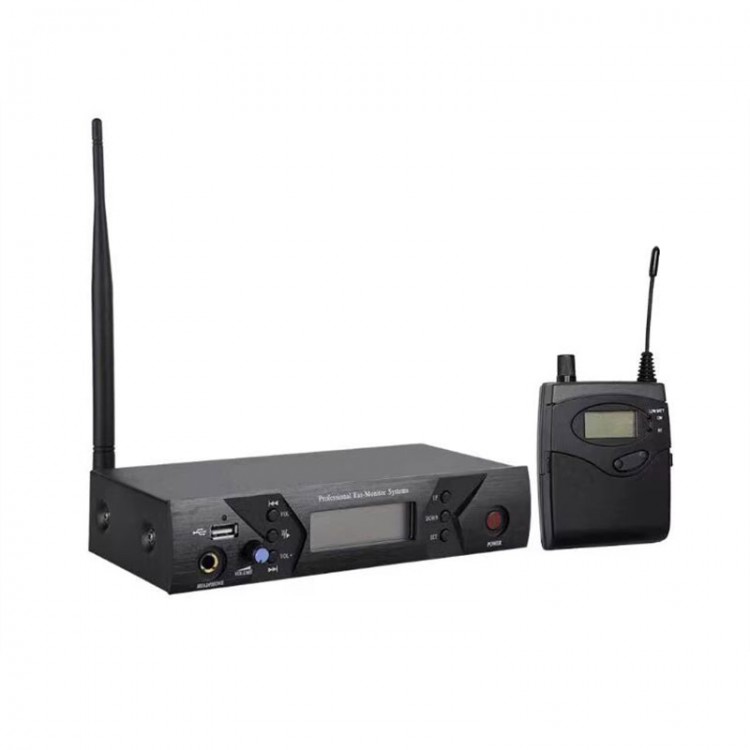

510 Mono Professional In Ear Monitor System UHF IEM System (with Black Transmitter and One Receiver)
Features:
- With one transmitter and one receiver
- LCD display shows working status in a clear way
- Strong signal and UHF frequency
- 40 preset channels can be set in 4 groups
- Audio output: mono
Technical Indicators:
Transmitter:
- Oscillation mode: PLL frequency synthesis
- RF stability: ±0.005%
- Bandwidth: UHF 798.200-829.700MHz; UHF 572.000-603.500MHz; UHF606.000-613.800MHz
- Preset channels: 40 preset channels can be set in 4 groups
- Comprehensive frequency response: 50Hz-15KHz±3dB
- TX output power: 100mW (50Ω)
- Audio inputs: XLR and 6.3mm composite socket
- Earphone output : 6.3mm stereo socket and adjustable volume
- Earphone load impedance: ≥ 16Ω
- Current consumption: DC 12V/300mA
Receiver:
- Oscillation mode: PLL frequency synthesis
- RF stability: ±0.005%
- Bandwidth: UHF 798.200-829.700MHz; UHF 572.000-603.500MHz; UHF 606.000-613.800MHz
- Preset channels: 40 preset channels can be set in 4 groups
- Comprehensive frequency response: 80Hz-15KHz±3dB
- Output power (32Ω): 2x35mW at 1KHz
- Earphone load impedance: ≥ 16Ω
- Current consumption: DC 3V/120mA (at moderate volume use)
- Antenna: SMA antenna can be detached
Package Included:
- 1 x Transmitter main unit
- 1 x Receiver
- 1 x Earphones
- 2 x Ear Hooks
- 1 x Antenna
- 1 x Power supply
- 2 x Cables
Packaging Details:
- Weight: 1.6kg
