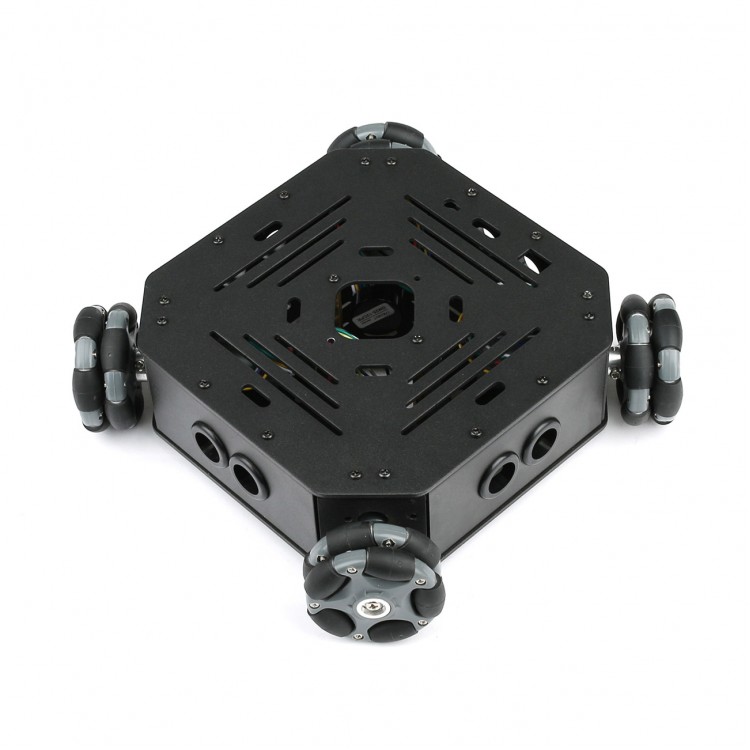

58mm 4WD Omnidirectional Wheel Chassis Mobile Smart Robot Car GA25 Motor for Arduino
Motor Parameters:
Motor type: GA25 motor
Speed measurement type: Hall speed measurement
Motor voltage: 3-12V
Motor current: 120mA@12V
Rated power: 2W
Rated load: 1.2kg.cm
Locked-rotor current: 3.5A
Locked-rotor torque: 8kg
No-load speed: 320rpm/min
Coding accuracy: 12CPR
Reduction ratio: 1:34
Encoder voltage: 3.3-5V
Wheel Chassis Parameters:
Vehicle size: 27cm*27cm (measured diagonally)
Vehicle weight: 1.2kg
Wheel size: 58mm
Maximum load: 8kg@12V
Working voltage: 6-12V
Rated current: 400mA*4
Encoder accuracy: 12CPR (Hall)
Encoder output phase: A/B phase
Chassis material: aluminum alloy
Package List:
1 x Wheel Chassis
