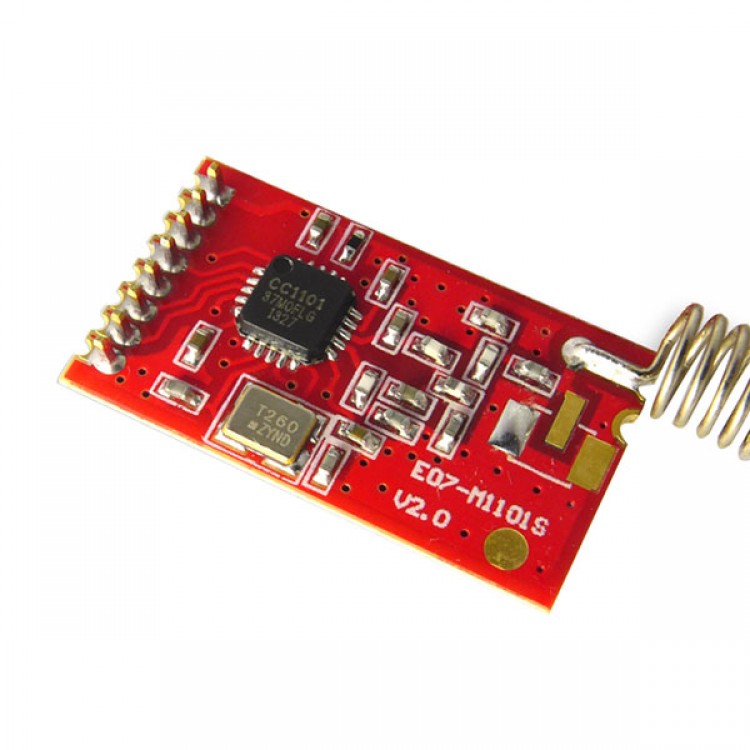

5PCS CC1100/CC1101 433MHz Wireless Transceiver Module NRF905/SX1212 Model E07-M1101S
Description:
- Model: E07-M1101S
- Voltage: 1.8--3.6V
- Interface: SPI
- Modulation System:ASK/OOK/MSK/2-FSK/4-FSK
- Carrier Frequency: 433MHz (other ISM band such as 868M/915M can be Supported)
- high sensitivity :1.2KBaud，433MHz
- Transmission Rate:0.6～500KBaud
- Support Carrier Sense System
- Separate 64-byte RX and TX data FIFO
- Automatic Cleaning Channel Access before transmission (CCA)
- Size: 22mm(length)*12mm(width)
- Pitch: 1.27mm DIP interfaces for embedded applications
- Pin definition: 1 VDD, 2 GD00, 3 CSN, 4 SCK,
5 MOSI, 6 GD01, 7 GD02, 8 GND
Package included:
- 5PCS CC1100/CC1101 433MHz Wireless Transceiver Module NRF905/SX1212 Model E07-M1101S
