Description:

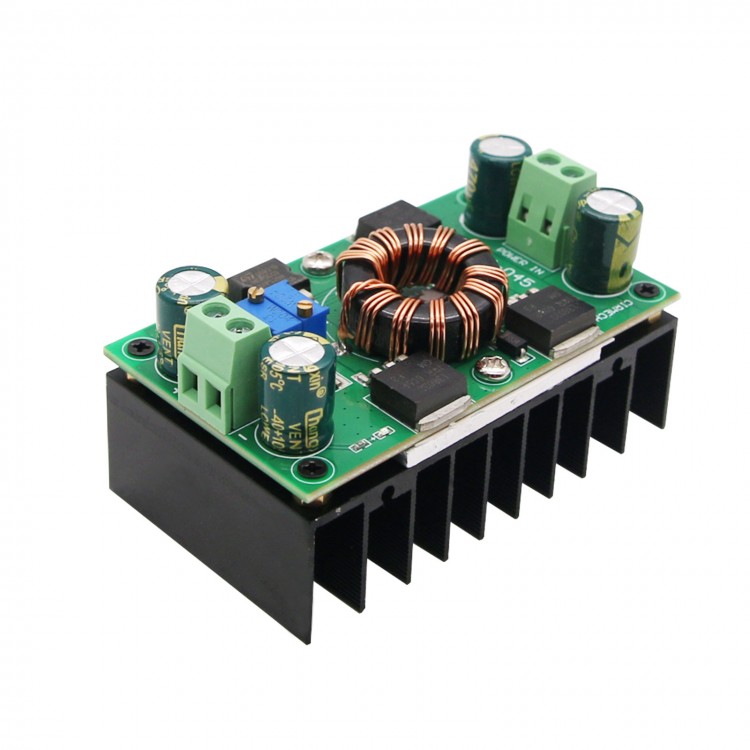

- This buck-boost power supply module uses a large heatsink to enhance heat dissipation, four pieces high-power high-quality voltage regulator tubes, three-wire 0.6 and wire-wound iron-silicon-aluminum magnetic ring inductors, which are not easy to saturate, further reducing heat loss; The 1.6mm circuit PCB board adds stability; the input and output use high-frequency low-resistance capacitors, making the output ripple very small.
- Since the module input voltage allows a relatively large range and the output requirements are relatively stable, it is widely used in various fields, such as solar charging and driving high-power LED lamps etc.
Features:
- Name: Automatic Step-Up/Down CVCC Power Supply Module
- Input Voltage: DC 5V-30V
- Output Voltage: DC 1.25V-30V
- Output Current: 5A-10A
- Output Power: 300W (Max)
- Conversion Efficiency: Max 93% (Depending on the input and output voltage difference)
- Working Frequency: 150KHz
- Protection Function: Short circuit protection, over current protection, over temperature protection
- Board Size: 68mm x 26.5mm x 22mm
- Net Weight: about 35g
Notice:
Output current: 10A (Max) (5A or less for long-term natural heat dissipation). For larger output current, two modules can be used in parallel. For example, the output needs 10A, and the two modules can be connected in parallel, and the output current of each module can be adjusted to 5A.
Packing List:
- 1pcs x Automatic Step-Up/Down CVCC Power Supply Module
