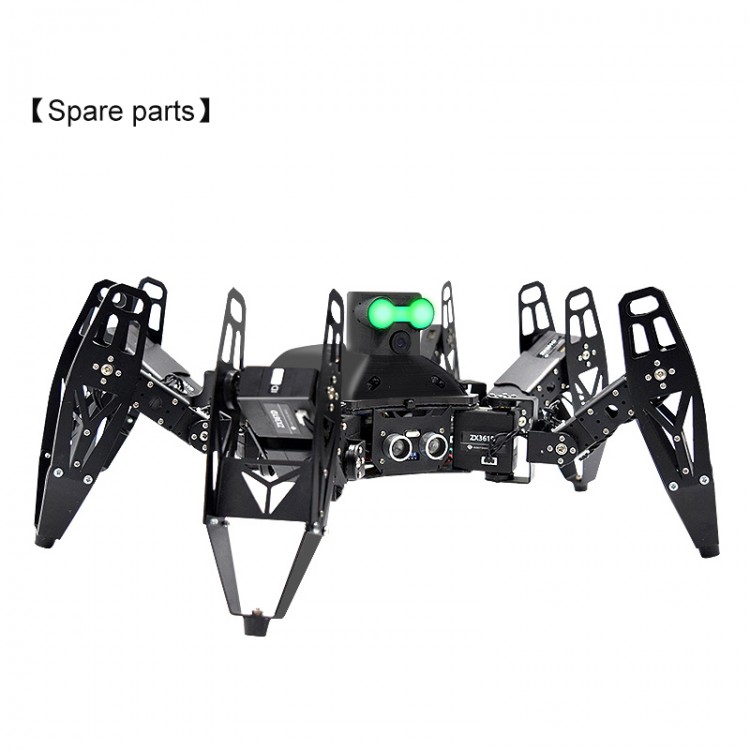

6 Legs Robot DIY Kit 3DOF Hexapod Bionic Spider Robot Programmable for Teaching Education Unassembled

6 Legs Robot DIY Kit 3DOF Hexapod Bionic Spider Robot Programmable for Teaching Education Unassembled

Control Methods:
-Remote controller handle control
-Mobile phone control
-Computer control
-WiFi control
-Somatosensory glove control (not included)

15 Ways to Play:
1. Walk in a high posture, when encountering obstacles, change to walking in a low posture to cross obstacles.
2. The gesture is from left to right, the robot moves to the right; the gesture is from right to left, the robot moves to the left.
3. When the red object is detected close, the robot will twist its body.
4. Ultrasonic distances the front object, and the robot moves back and forth with the front object.
5. When an object is detected, the robot launches a defense against the offensive.
6. The cool RGB lights let the robot also have a light show.
7. When walking on the table top, it will move backward.
8. Touch the robot and it will walk.
9. Touch the abdomen of the robot, it will open its six legs.
10. Turn over skills.
11. Defensive skills.
12. Intelligent voice control.
13. Follow light walking.
14. Free obstacle avoidance.
15. Infrared remote control.

Powerful Control System:
Bus Bluetooth servo controller
1. It can be connected to 24 bus servos
2. Computer graphics programming
3. The servo features anti-reverse connection and intelligent anti-blocking rotation
4. Built-in dual-mode Bluetooth 2.0 compatible with 4.0
5. With acrylic protective shell

Weight: 22g (bare board)
Dimensions: 70mm*49mm
Hole size: 63mm*42mm
Power supply voltage: 6-8.4V
Online/offline operation: support
Storage actions: 10000+
USB free drive: support
Servo interface: 6 channels (5 channels can be connected in series for each channel)
Bluetooth module: built-in dual-mode Bluetooth 4.0 compatible with 2.0
Support: PS2 handle/WiFi/infrared remote control, etc.
Low pressure alarm: support
Secondary development: support
Computer software: provide
WeChat mini program: provide

Programming Methods:
Computer graphical programming

Serial Bus Servo:
-The servos are connected in series with each other, and the wiring is simple, reducing wiring troubles.
-Intelligent anti-blocking, protecting the steering gear as much as possible.
-Each servo has its own ID, and each servo can be controlled independently.
-It is more convenient to use with computer host computer software.

Smart Lithium Battery:
Large capacity lithium battery with overcharge and overdischarge protection.

Multiple Posture Transformation:
High, medium and low walking posture action group, each posture can adjust the speed.

Specification:
Basic information:
Size: unfolded total length 680mm, single leg length 255mm
Weight: 1.9kg
Body material: hard aluminum alloy, surface hardening treatment combined with strengthened structure design

Power supply system:
Battery: 7.4V 200mAh large capacity lithium battery
Endurance time: continuous operation 60min

Degree of freedom:
Legs: 3DOF (each leg) x 6

Robot control system:
Hardware part: bus Bluetooth servo controller
PC software: PC software + mobile phone WeChat applet

Servo parameters:
Name: ZX361D Intelligent Serial Bus Servo
Weight: 59g
Size: 40 x 20 x 40.5cm
Locked-rotor torque: 13kg.cm(6V), 15kg.cm(7.4V)

Package List:
1 x Robot DIY Kit

Note: The product is not assembled
