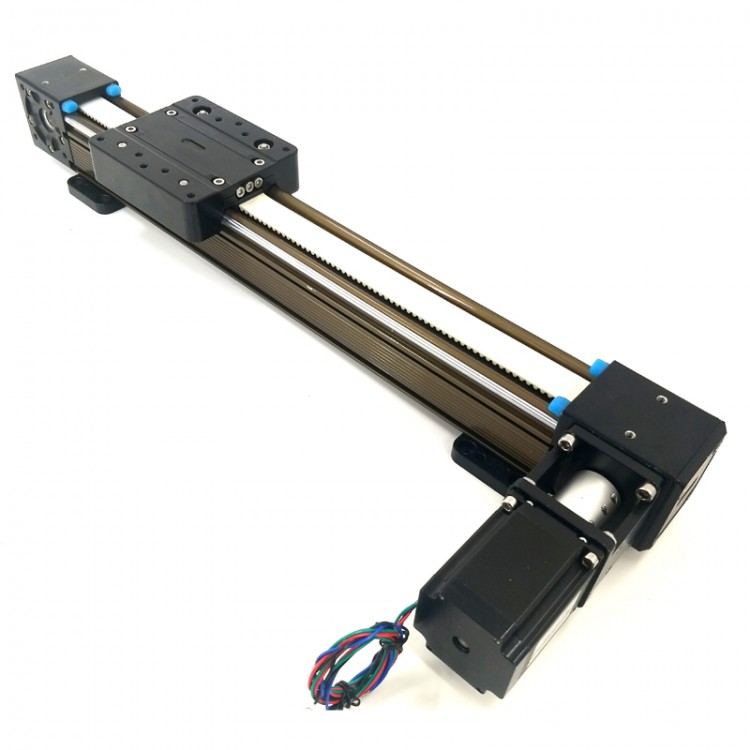

60*60mm CNC Linear Rail with Module Block Electric Slide Table Cross Rail Slide System with 57 Stepper Motor
Description:
- Profile: 60mm*60mm
- Material: Anodized Aluminum Housing with a Chrome Steel GCr 15 shaft
- Straightness/ Distortion: ≤0.03mm/300mm
- Loading Capacity: 100N
- Linear Travel Per Shaft Revolution: 72mm
- Pulley Teeth: 25 teeth
- Gear-Teeth Type: HTD5m width: 25mm
- Weight: 8KG/m
- Slide type: 105*90
- Vertical Maximum lifting Force: 500N
- Horizontal maximum lifting force: 100N
- Maximum Torque: 50N.M
- Stepper motor: included
- Optional Guide Length: 500mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm
Features:
- High precision
- High speed
- Low noise
- Long warranty
- Years of experience
- Reliable quality
- Anti rust and corrosion
Package Included:
- 1 x CNC Linear Rail with Stepper Motor
Note: Please leave a message about your desired guide length when purchasing. Thank you!
