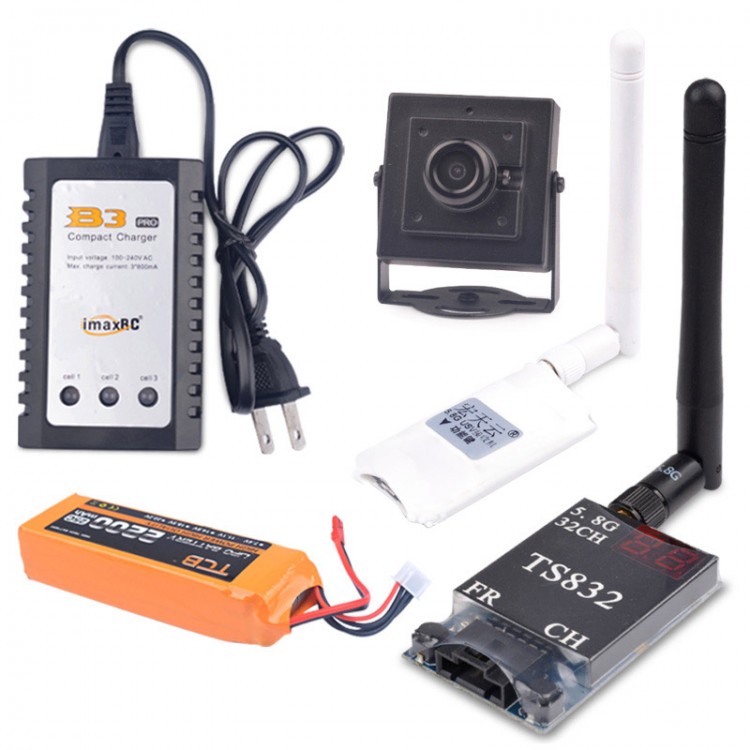

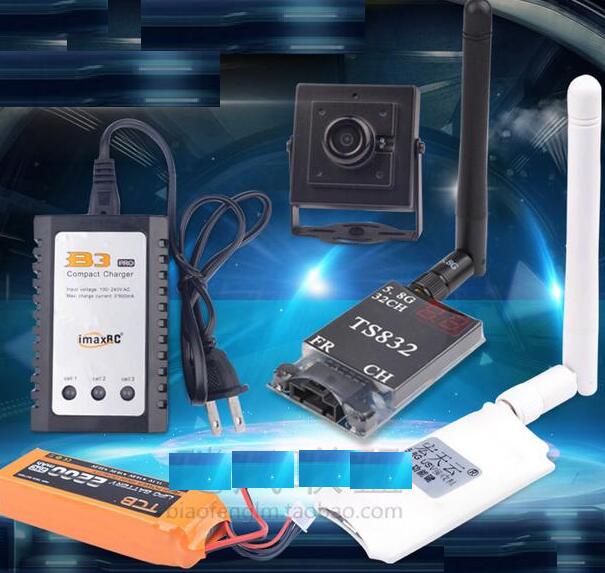

• 600MW TS832 Image Transmitter + USV Receiver + FPV Camera + 3S Power Battery + B3 charger

600MW TS832 Image Transmitter + USV Receiver + FPV Camera + 3S Power Battery + B3 charger

Availability: In stock, usually dispatched in 1 business day

  • Price:$74.30
  • Price in reward points: 743 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.81 $71.33 $69.10 $66.13 Contact US
Quantity:

600MW TS832 Image Transmitter + USV Receiver + FPV Camera + 3S Power Battery + B3 charger

Product Description:The USV receiver has requirements about phone mode.If you do not know wether the mobile phone applys.You can contect us and we will send the testing software for you.

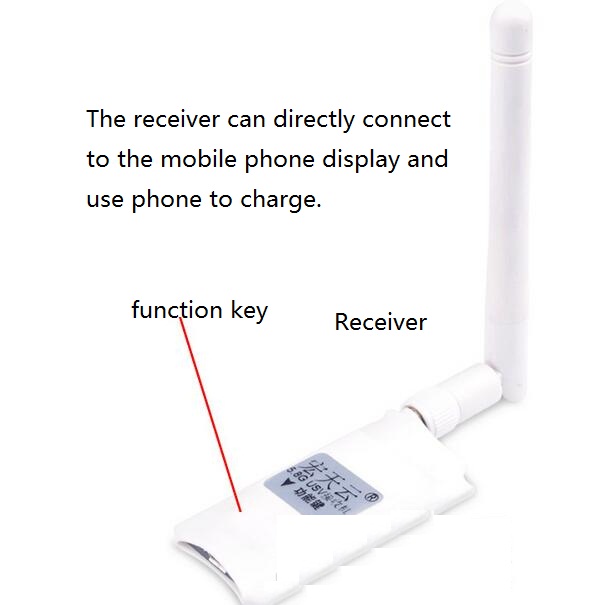

USV image receiver, receive image support three mode display:
- OTG link Android mobile phone or tablet (iPhone is on developing, please look forward to)
- The USB line connects to PC
- 3.AV connecte to monitor

Mobile phone use method:
- Android mobile phone install APP     Download address: directly search app<<pocket FPV>>
- Connect OTG wire to the mobile phone and receiver (You do not need to link external power supply)

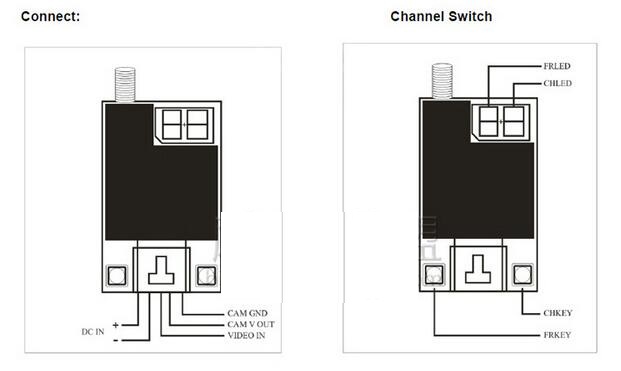

- When the airborne picture transmission deviced is powered on,long press the function key at the image transmitter for 3 seconds,It can automatically search channels and automatically lock the signal stronget frequency point.

Computer use method:

- Use USB wire connect the computer.
- XP system (open the lens) WIN7 sytem (Install amcap) lens software,WIN10 syatem automatically open the lens;
-  When the airborne picture transmission deviced is powered on,long press the function key at the image transmitter for 3 seconds,It can automatically search channels and automatically lock the signal stronget frequency point.

Display use method:
- Connect the receiver and the display screen interface with video wire,the receiver 5V power supply
- When the airborne picture transmission deviced is powered on,long press the function key at the image transmitter for 3 seconds,It can automatically search channels and automatically lock the signal stronget frequency point.

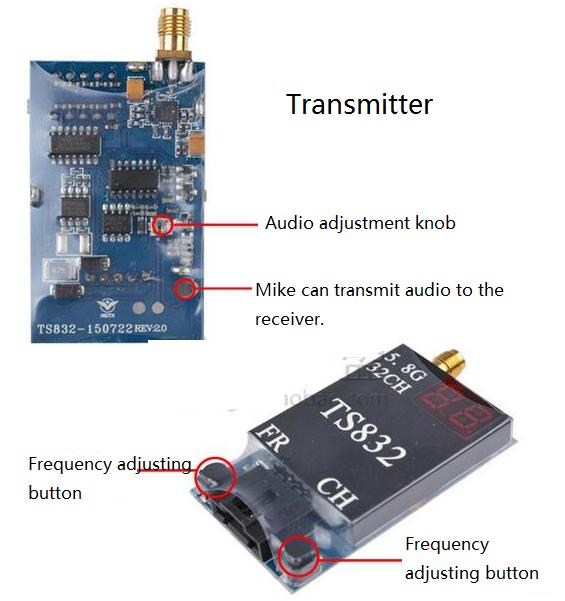

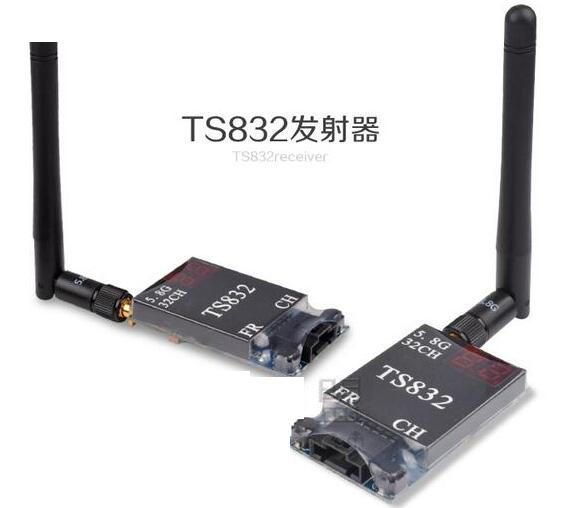

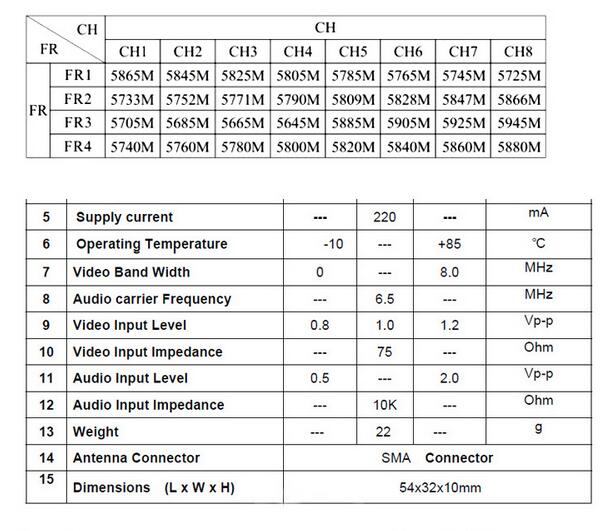

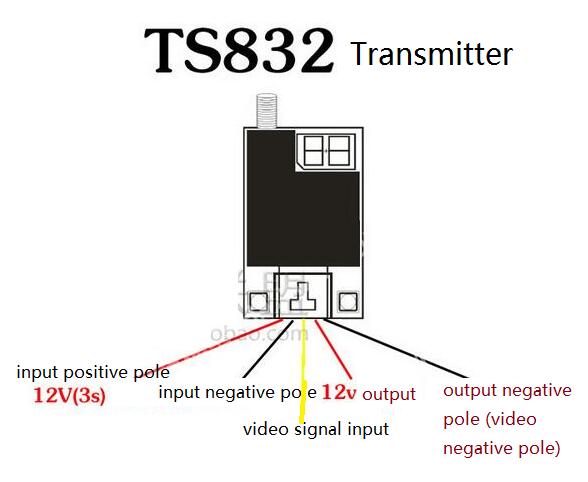

TS832 Transmitter parameter:

- Mode:TS832
- Power:600MW
- Frequency point:40-CH
- Working voltage:7-16V
- Working current:220MA
- Antenna interface:SMA head,
- External screw internal needle
- Antenna gain:2DBI
- Video standard:NTSC/PAL Auto
- Dimension:54x32x10mm
- Weight:22g

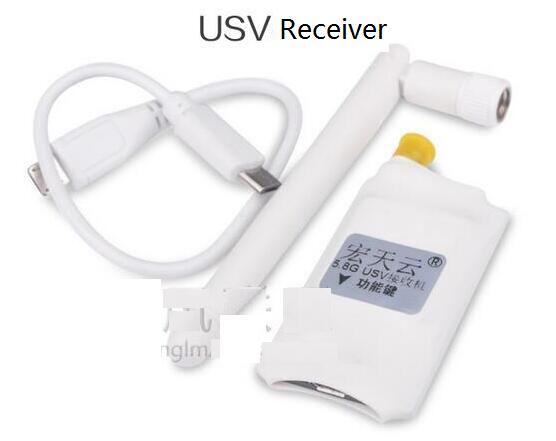

5.8G USV Transmitter parameter:
- Frequency point:Intensive 150-CH frequency point
- Frequency ditance:2mhz
- Input voltage:6.5V,mobile phone,tablet direct power supply
- Antenna interface:SMA head,external screw internal needle
- Antenna gain:2DBI
- Video standard:NTSC/PAL Auto
- Dimension:60x30x4mm
- Weight:20g
- Features:150 frequency point,accuracy:2MHZ,can automatically search channels,spectrum analyzer graphical interface,displays specific frequency.

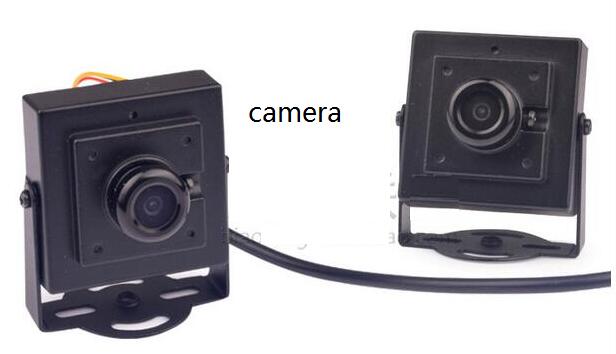

FPV camera parameter:
- Sensor:1/4 CMOS light sensitive components
- Definition:700
- Working voltage:12V
- Working current:100MA
- Lens:2.88 MM wide angle
- Dimension:36x36x20mm
- Weight:60g

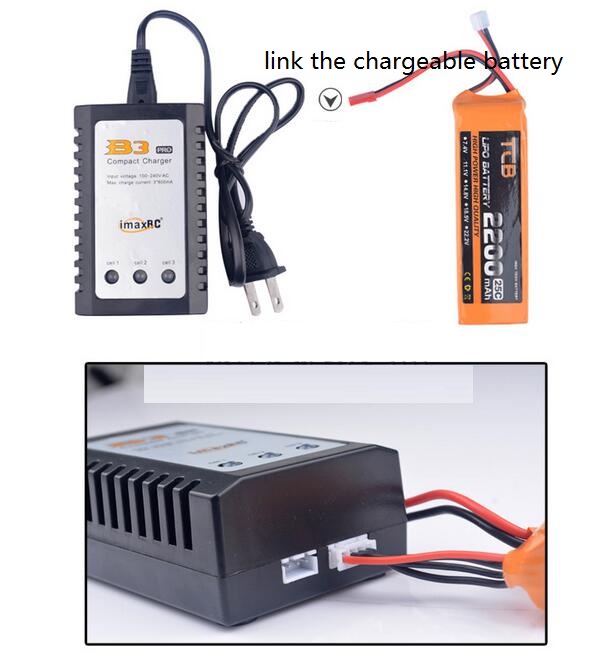

B3 Charger parameter:
- Rechargeable battery:2S/3S power battery
- Input voltage:110~240V
- The max charge current:3x800MA
- Charge mode:the red-light charging;the green light full charged

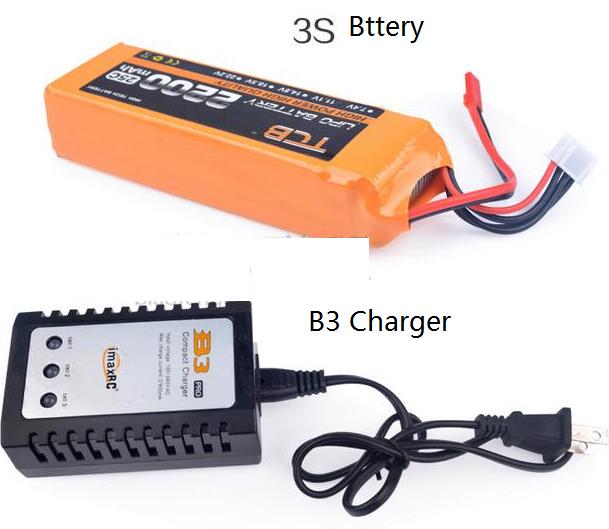

3S Power battery parameter:
- Core material: lithium polymer
- Core asemble:IPx3
- Monolithic core:3.7V
- Full monolithic core:4.2V
- Discharge Interface:JST interface
- Dimension:11x3.4x2.3mm
- Weight:160g

Use method:

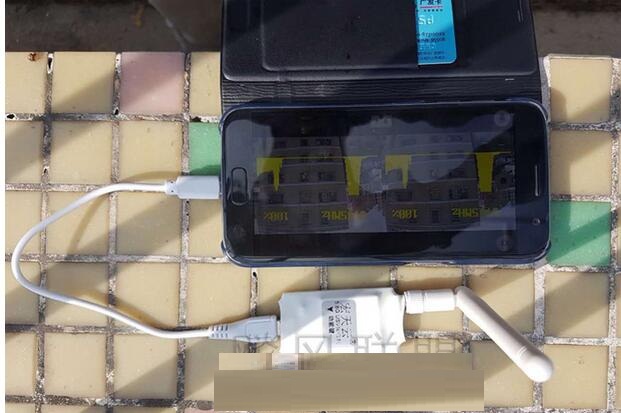

1.Plug the USV receiver to the mobile phone Android port (The arrow pattern connection wire connects to the USV,another port connects to the phone port.)
2.Download pocket FPV APP (You can search on the internet or contect us to ask for APP file)

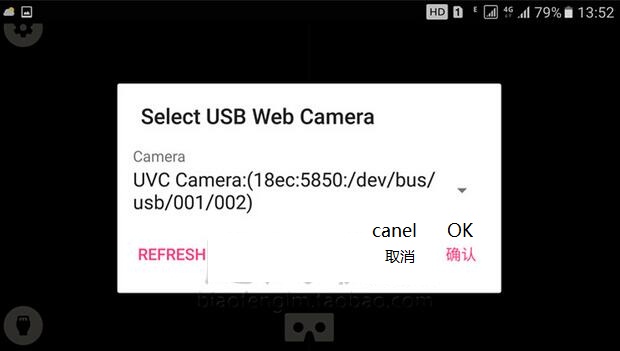

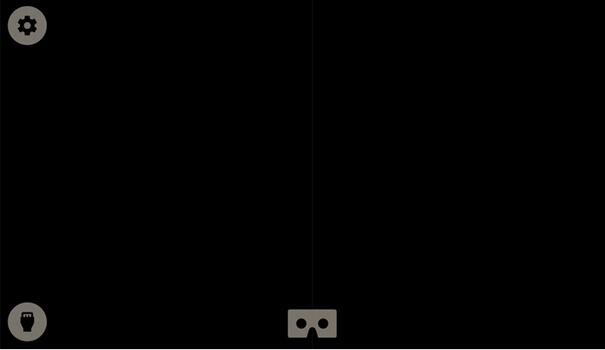

3.Open the APP software,click the left corner link key,then click "ok" in the pop-up window.

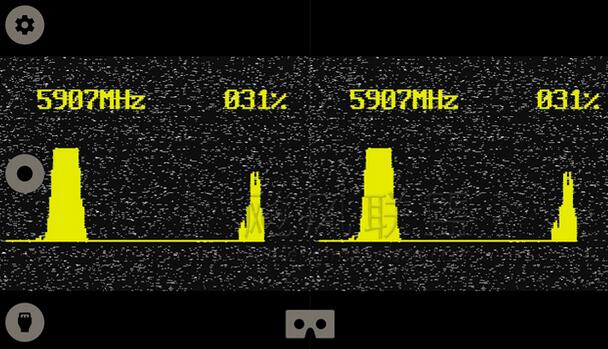

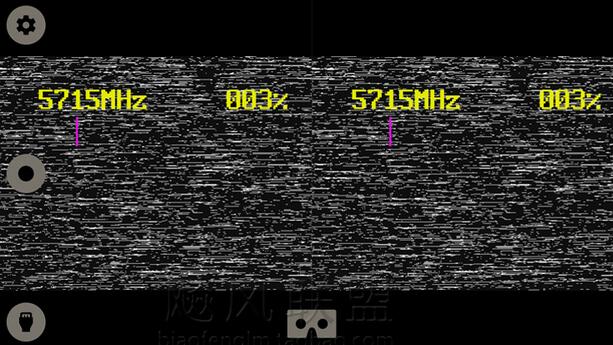

4.After the snow screen occurs,long press USV key for three seconds.The receiver will search channel automatically.

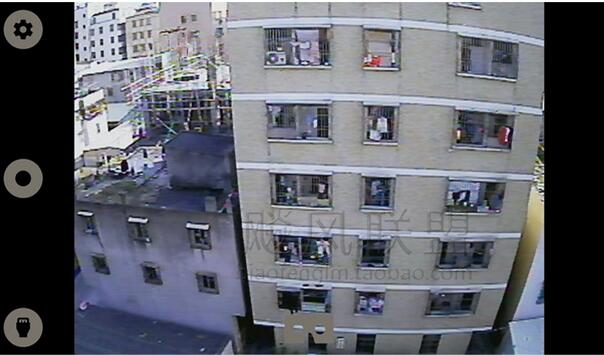

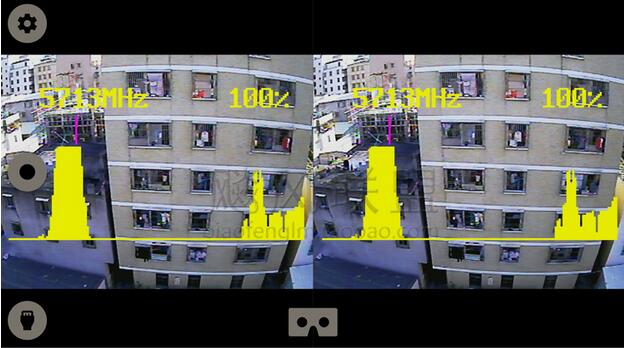

5.When the search is done,it will locate the most accurate frequency and the receiving image displays.

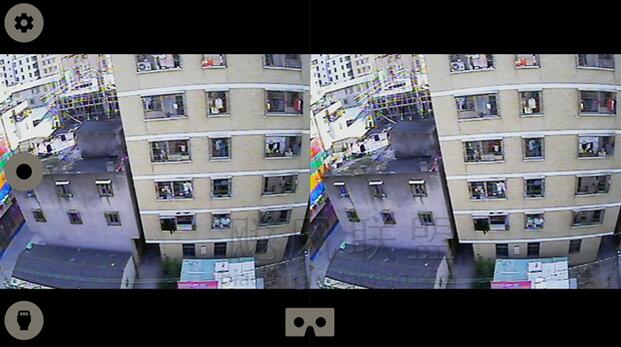

6.Click the key just below the screen,you can switch dual image or single image.

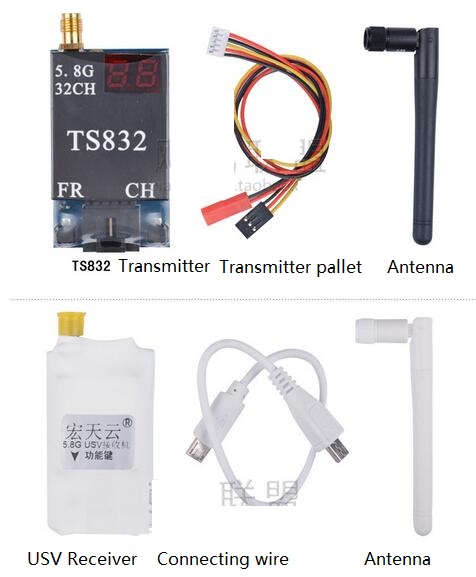

Package List:
- 1 x TS832 Transmitter
- 1 x Transmitter pallet
- 2 x Antenna
- 1 x USV Receiver
- 1 x Connecting wire
- 1 x FPV camera
- 1 x Wire
- 1 x B3 Charger
- 1 x Charger wire
- 1 x 3S Battery
