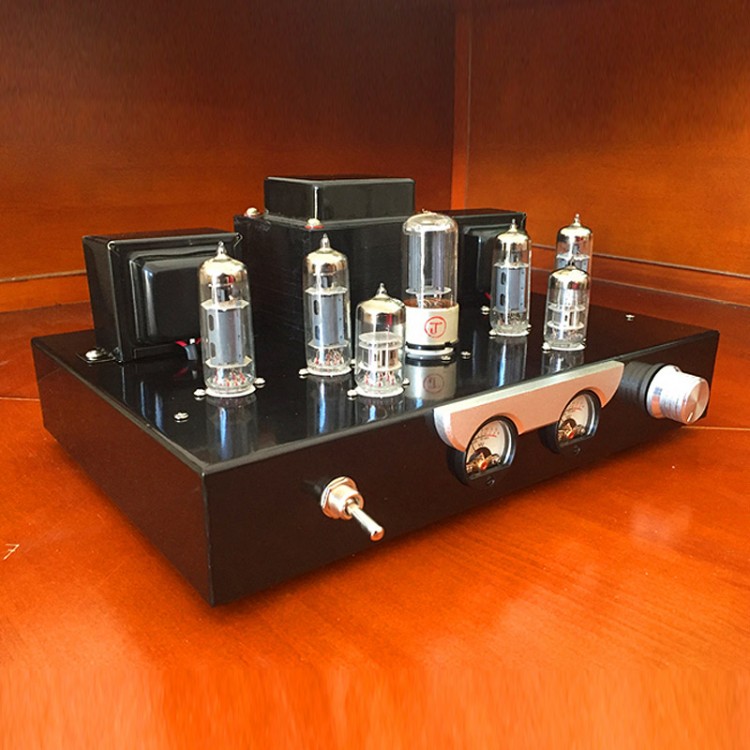

6N2 6P1 5Z4PA Spartan T1 Push-Pull Tube Amplifier 8W+8W Power Amplifier with Meter Finished Product
Description:
For the tube part, the front tube of this machine adopts 6N2 tube, which is a high U tube with large amplification coefficient and beautiful sound. The rear tube uses 6P1 tube, which is balanced in three sections and has a delightful timbre, which is very pleasing. The combination of these two pipes is perfect.
Specifications:
Electric cattle: 96*60 165W, brand new premium piece*1
Output cattle: 66*35 15W fever 4+3 winding method, imported Nippon Steel 0.35 Z11 piece*2
Chokes: 57*25 4H new premium piece*1
Electron tube: 6N2*2 / 6P1*4 / 5Z4PA*1
Output power: 8W+8W
Frequency response: 20hz-20khz
Output impedance: 4 ohms and 8 ohms
Signal to noise ratio: 90db
Input sensitivity: 500mv-1000mv
Input impedance: 100kΩ
Harmonic distortion: 1% (1khz)
Dimensions: 320mm (length) * 210mm (depth) * 160 (height)
Net weight: about 9kg
Package List:
1 x Finished Tube Amplifier
Note:
-This amplifier does not include power cords and audio cables.
-The amplifier must be connected to the speaker and then powered on, because the amplifier is an output transformer with a load, otherwise it is very easy to burn the output transformer.
