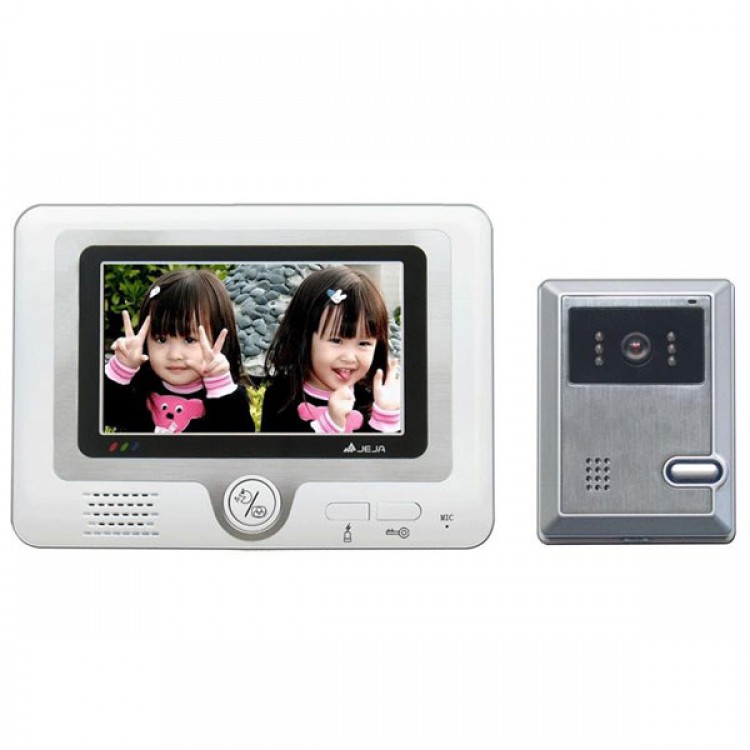

7" Color Monitor Camera Video Door Phone Intercom

Specification

Screen : High Performance 7" TFT LCD Monitor, Video Camera Phone and two way Intercom Operation Temperature : -20C~+40C

• Door Control with Hand-move, Alarm function, Video and Audio output
• Auto turn off Camera move vertically and rain-proof
• Suitable for Everywhere in the worldwide use
• Installation : Surface-mount
• Connection : Wire connection for nonpolarity
• Monitor Ex ternal Dimension : 185(L)*130(W)*27(H)mm
• Camera External Dimension : 127(L)*95(W)*35(H)mm
• Power Course : AC 100V-240V / DC12-18V
• Color : White (default)/Black(optional)

Indoor Monitor Features:

• External dimension: 252(L) x 182(W) x 23(T)mm
• Call Tone: " Ding Dong" Chime
• Conversation time: Automatic cut off after about 1 min
• Power consumption: about 10W in operation; about 0.5W in standby

Camera Features:

• Picture sensor: 1/4" Lens
• Power supply: DC 12V, 0.25A(supplied by the monitor)
• Lighting: Infrared illuminator
• External dimension: 120(L) x 88(W) x 34(T)mm
•  Imagery angle: Diagonal about 53 degree

Package Includes:

• 7" LCD Monitor
• IR Camera
• Power Adaptor
• 6 Feet Cable
• Metal wall-Bracket
• Operation guide
