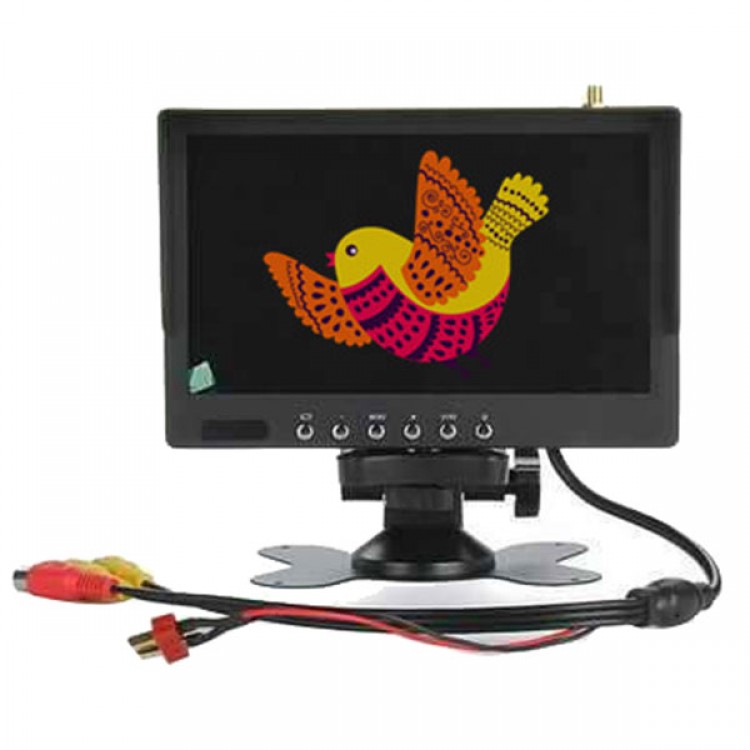

7 Inch Monitor 5.8G HD Receiver 450cdm High Brightness FPV Monitor for FPV Photography

SKU: 33449
0(0 Reviews)
Write a review(Get Thanksbuyer Points!)

Availability: In stock, usually dispatched in 1 business day

Price:$96.29
Price in reward points: 963 Reward Points: 10

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$94.36	$92.44	$89.55	$85.70	Contact US

Buy it now Add cart

You might like

JS Nighthawk X2 15mm Aluminum Alloy Thermal Imager 320x240 High Resolution Night Vision Device Type-C Charging $295.06
FOXEER Cat 4 Mini 22x22mm HS1278 Night Vision Camera Module 0.00001Lux Super Starlight Camera Module for Racing Drones $58.51
Foxeer Cat 4 MICRO Black 19X19mm HS12770.00001LUX Super Starlight Night Vision FPV Camera Module $58.51

Product details
Reviews (0)

7 Inch Monitor 5.8G HD Receiver 450cdm High Brightness FPV Monitor for FPV Photography

Description:
- FPV special high-definition aerial high brightness LED backlight, LCD monitor, T plug power supply, built-in 5.8 G wireless microwave receiver, compatible with the home station figure transmitter, 5.8 G (note that is not compatible with BaiTong equipment) without complex wiring, power supply can be normal receive images. Is currently the FPV aerial users the best LCD monitor.
- Shell with mini hood, suitable for fixed installation of large size hood users DIY.

Special tips:

Because different transmitter of manufacturer factory default channel is not consistent.

If found are close or no signal when using, please all back of the TV to dial the code switch to the other side.

Product name: FPV special 7 inch high brightness, high-definition aerial 800 * 480 LED backlight LCD monitor

Manufacturer number: TVX8002

1. Screen size: 7 inches

2. Screen type: TFT LCD screen/long life LED backlight

3. The physical resolution: 800 x 480

4. Brightness: 450 CD/m2

5. Contrast: 500:1

6. Visual Angle: 140/120 degrees (horizontal/vertical)

7. Working voltage: DC 7 to 13 V (circular power plug, inside is outside), recommend to use 3 s 11.1 V lithium batteries

8. Power consumption:

9. Size: 170 mm x 110 mm x 40 mm excluding antennas and base

10. Language menu: built-in nine languages menu Simplified Chinese and English

11. Working temperature: - 10 ° ~ + 65 °

12. The built-in receiver: RC305 figure 5.8 G microwave receiver.

13. The video input: 1 road AV1 for a receiving module, AV2 for external video input, including audio

14. The video output: 1

15. The antenna connector situation: monitor of SMA in the external thread the needle antenna: SMA internal thread hole

Receive frequency: 1 channel: 5705 MHZ;Channel 2:5685 MHZ;Channel 3:5665 MHZ;Channel 4:5645 MHZ;

Channel 5:5885 MHZ;Channel 6:5905 MHZ;Channel 7:5925 MHZ;Channel 8:5945 MHZ

Contains:

1 x monitor

1 x monitor base

1 x for the remote control

1 x base tape

1 x 5.8 G 2 db antenna
