71550 Hydraulic A/C Hose Crimper Crimping Tool Kit Conditioner Automotive Repair

71550 Hydraulic A/C Hose Crimper Crimping Tool Kit Conditioner Automotive Repair

Description:

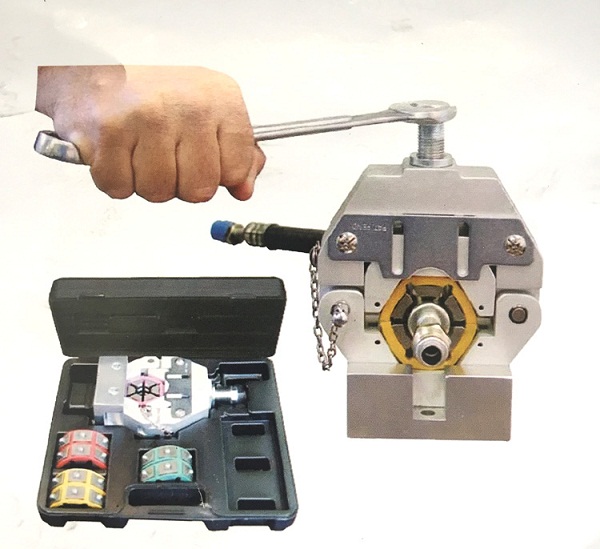

- Manually Operated A/C Hose Crimper

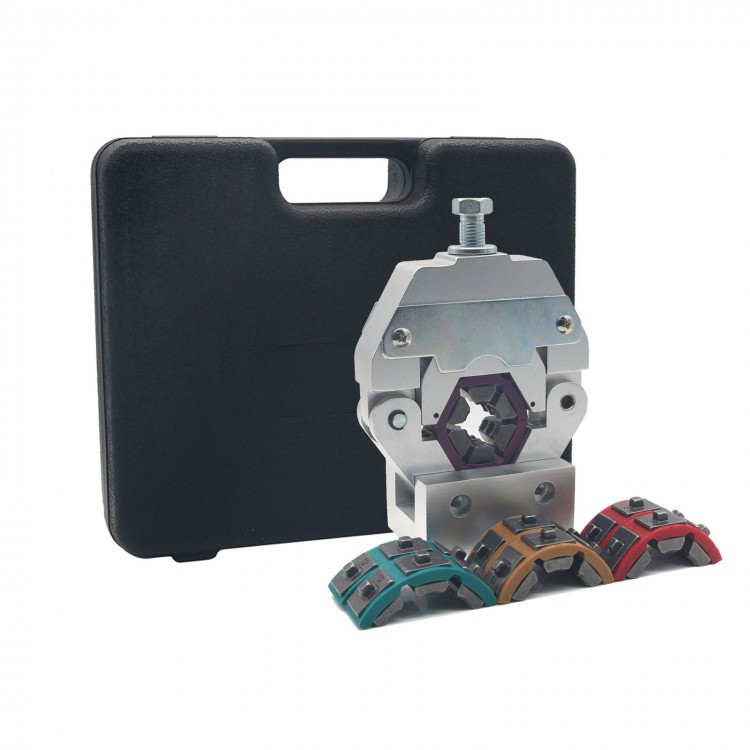

- This 71550 A/C Hose Crimper Tool Kit comes with four die sets for hose sizes (#6, #8, #10, & #12) and base for bench mounting.
- Crimps barbed and beaded fittings, Dies snap quickly into place requiring no pins or screws, Can be easily mounted to a bench using the holding fixture or held securely in a vice International Buyers: All electric tools and cordless tool chargers are standard USA voltage (120 Volt) unless otherwise stated in listing.

Features and Benefits:
- "Manual style" A/C hose crimper for crimping barbed and beaded fittings
- The dies snap quickly into place requiring no pins or screws
- The unit can be easily mounted to a bench using the holding fixture or held securely in a vice
- This kit comes with a complete set of dies covering standard hose sizes #6, #8, #10, and #12.

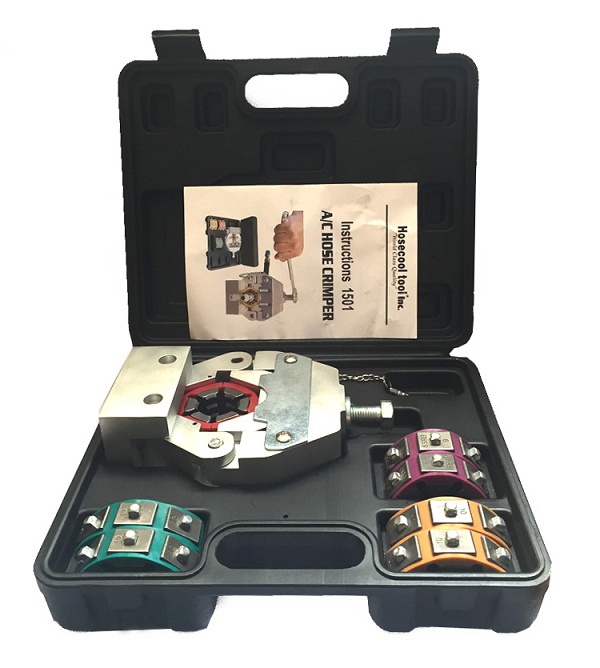

- Packaged in custom molded carrying case

Operating Instructions:
- Warning:Do NOT tighten the crimper without having a hose and fitting in place to crimp.This could damage the tool. Also, be careful not to place hands near any pinch points while using the tool!
- Romove pin and open topo joke
- Note: It may be necessary to turn the arbor screw counter clock-wise until to jpke can be open.

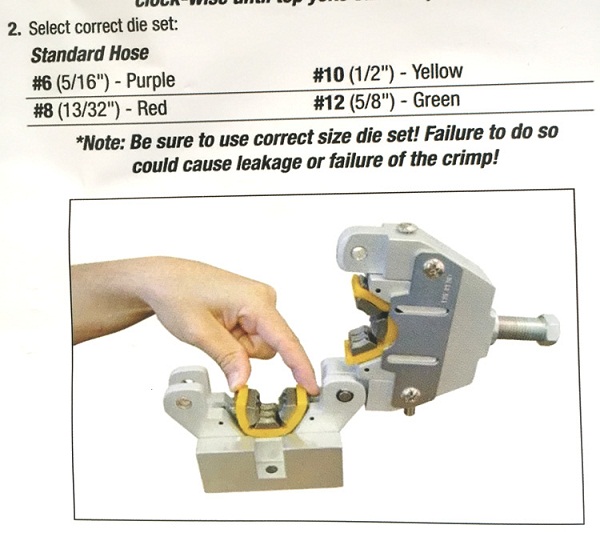

- Select correct die set

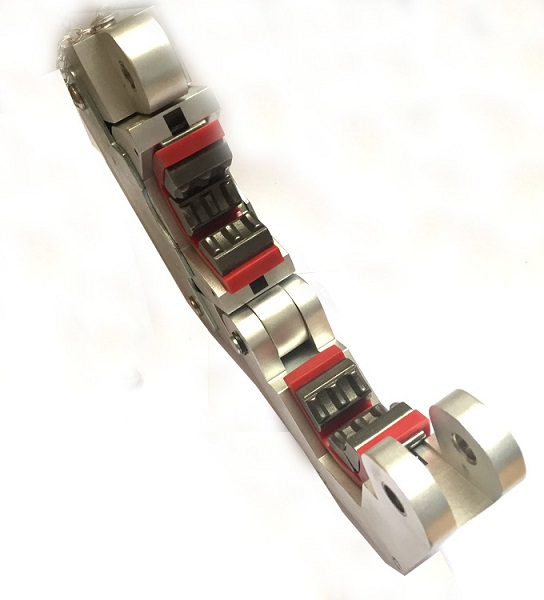

- Insert dies into yoke
- Place the fitting and hose in crimper and clese top yoke
- inser pin securely
- Position the hose fittting into the center of the dies
- Turn the arbon screw clockwise until the bottom of the yoke ram meets
- Check crimp for correct compression; continue to tighten screw if additional compression is required
- Once crimp is complete, turn arbon screw counter clock-wise until it stops
- Remove holding pin and open yoke
- Remove hose assembly

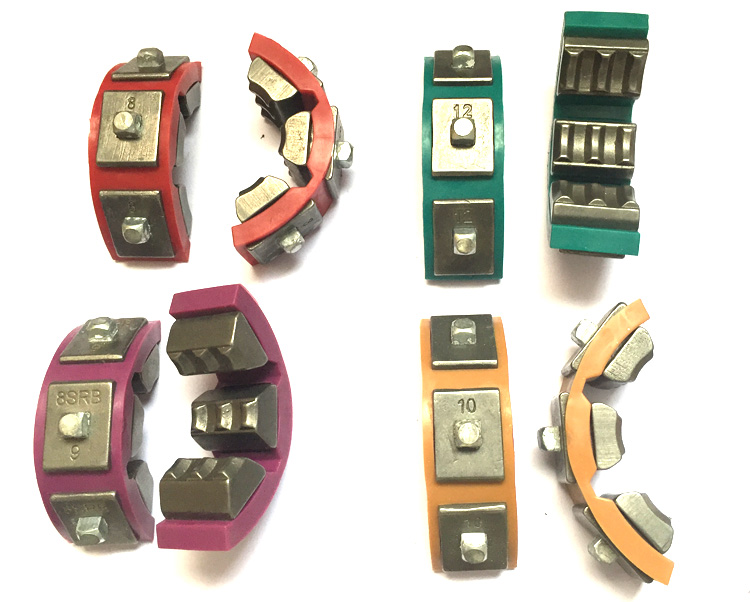

Standard Hose:
#6 (5/16'')--Purple       #10 (1/2"")--Yellow
#8 (13/32"")--Red        #12 (5/8"")--Green
Note:Be sure to use correct size die set.Failure to do so could cause leakage or failure of the crimp.

Specifications:
- Condition: NEW
- Type: Hose Crimper Tool
- Quantity: 1 piece
- Weight: 13.2LBS 6KG
- Material: Steel
- Product Size: 9*6*5 in /23*15*13 cm
- Package Size: 23*16*12 cm
- Warranty: Free 2-Year

Kit includes:yoke assembly,arbor assembly,holding fixture assembly,die set #6 (5/16"),die set #8 (13/32"),die set #10 (1/2"),die set #12 (5/8") and a carrying case.

Package included:
- 1 x Hose Crimper Tool Kit 71550
- 1 x Yoke
- 1 x Arbor
- 1 x Holding fixture
- 1 x Carrying case
