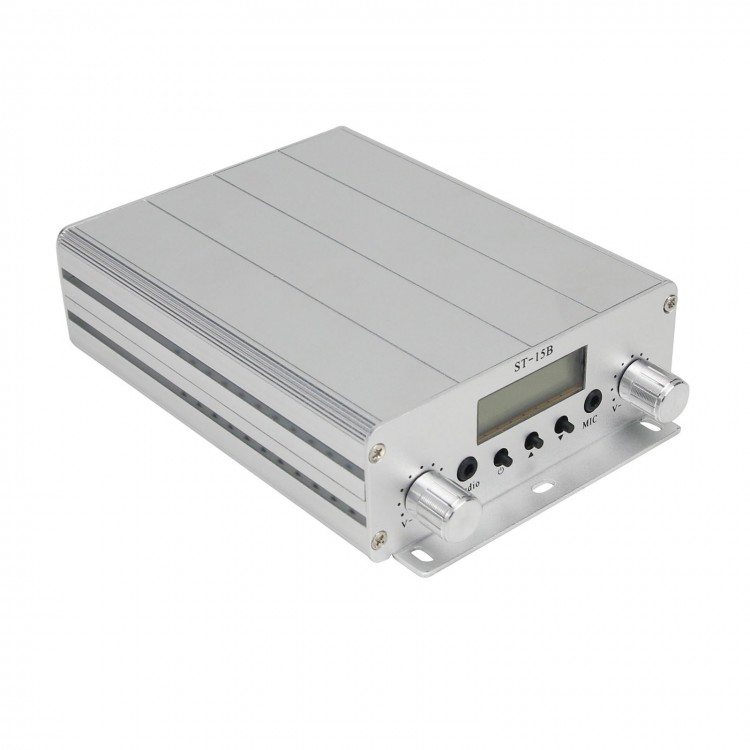

76MHz-108MHz 15W FM Broadcast Transmitter Stereo PLL FM Radio Broadcast Station TNC Interface ST-15B

Availability: In stock, usually dispatched in 1 business day

  • Price:$63.78
  • Price in reward points: 638 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.50 $61.23 $59.32 $56.76 Contact US
Quantity:

76MHz-108MHz 15W FM Broadcast Transmitter Stereo PLL FM Radio Broadcast Station TNC Interface ST-15B

Specification:

Power supply voltage: 12V/5A
Frequency range: 76-108MHz
Frequency step value: 100KHz
Frequency stabilization method: PLL phase-locked loop frequency synthesis
Frequency stability: ±10ppm (-10℃~+60℃)
Modulation frequency deviation: ≤±75kHz (100%)
Working method: continuous work
RF output impedance/power: 50 ohms/15W
Reference distance: 2km~10km (open area)
Size: length 180mm, width 120mm, height 45mm
Net weight: 0.6kg
Antenna output type: TNC interface

Features:
1. The working frequency can be set at will, and the frequency range can be changed according to customer requirements (such as 75-85MHz preset before the factory).
2. LCD display, blue background light.
3. Audio input (audio+mic), two channels input volume can be adjusted.
4. Automatically save the working frequency, it will automatically jump to the last working frequency when starting up.
5. PLL professional phase-locked loop, frequency is 100% without drift.

Package List:
1 x FM Broadcast Transmitter

Note: Power and antenna are not included.
