8" Crystal Bezel Press Case Back Closing Bench Rotate Watch Repair Tool 20 Dies

8" Crystal Bezel Press Case Back Closing Bench Rotate Watch Repair Tool 20 Dies

Technical Specifications:
- Material: Aluminium alloy machine， Plastic dies
- Color: Red machine, Beige dies
- Machine Sizes:
- Length: 120mm / 4.7"
- Width: 100mm / 3.9"
- Height: 200mm / 7.9"

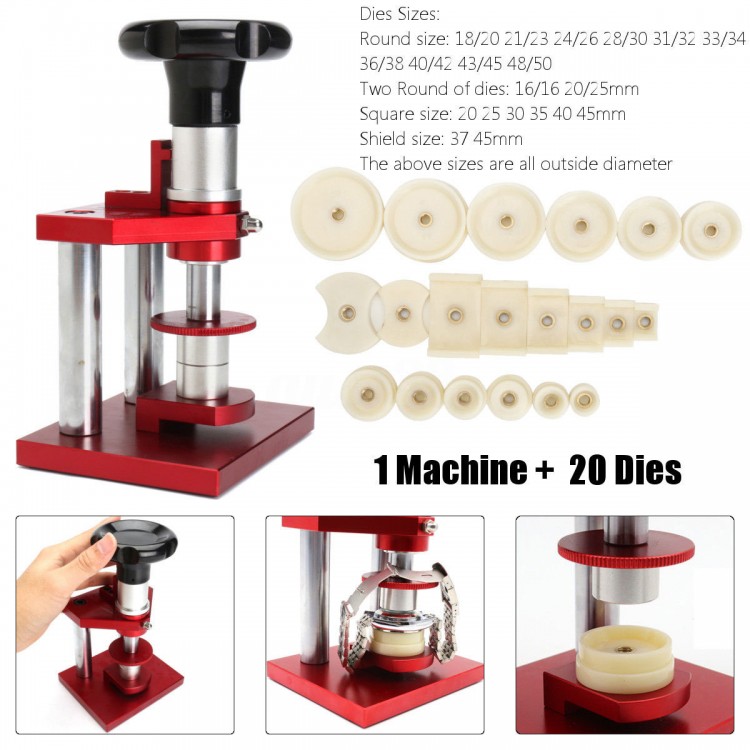

Dies Sizes:
- Round size: 18/20 21/23 24/26 28/30 31/32 33/34 36/38 40/42 43/45 48/50
- Two Round of dies: 16/16 20/25mm
- Square size: 20 25 30 35 40 45mm
- Shield size: 37 45mm
- The above sizes are all outside diameter

Features and Benefits:
- Opens From Closed To 1/2" to 1-1/8"
- Both the upper and lower are M6 thread which can accept most generic dies and/or the dies for Bergeon 5500A or 5500C
- Professional quality large crystal and case back press.
- This tool applies pressure by screwing top handle, this means you have total control how much pressure you use, you can use just enough pressure to fit crystal or case back. With many other press tools is very easy to apply to much and break the watch.

Instructions:
1. Firstly, select a larger than the table Mengzi bed, installed in the lower screw on the pliers
2. And then select a smaller than the rear cover table pressure, the installation of the pliers on the mouth
3. Place the watch down on the press on the lower side and set the rear cover in place
4. Gently press the pliers to close the back cover
5. It is advisable to place the cloth on the table

Notice:
1. Please allow 1-2mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. The color may have different as the difference display,pls understand.

Package Content:
- 1 x Screw Type Bench crystal bezel press back case closer
- 1 x 20 Dies
