• 8 in 8 out 10A WIFI Network Relay Wireless Net Switch TCP UDP Multi-Mode for Android iOS

8 in 8 out 10A WIFI Network Relay Wireless Net Switch TCP UDP Multi-Mode for Android iOS

Availability: In stock, usually dispatched in 1 business day

  • Price:$91.10
  • Price in reward points: 911 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.28 $87.46 $84.72 $81.08 Contact US
Quantity:

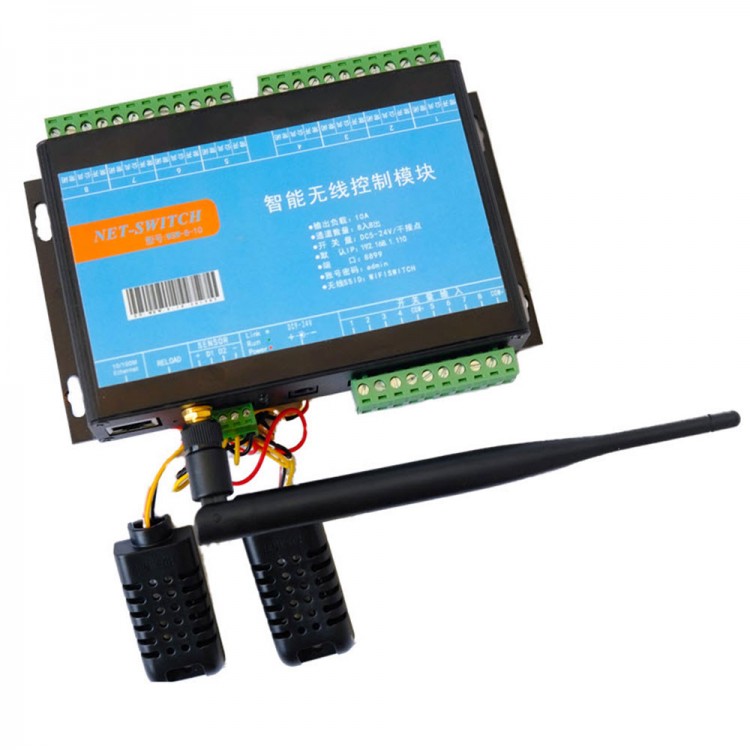

8 in 8 out 10A WIFI Network Relay Wireless Net Switch TCP UDP Multi-Mode for Android iOS Control


Features:

- 8 channel relay outputs control, 10A, 2000 watts current passive outputs per channel
- 8 digital inputs detection, support for passive dry contact (also supports active 5-12V DC switching inputs), With active trigger switch reporting functions.
- Maximum support 32 TCP connections, communication distance measured indoor 100 meters, outdoor 300 meters (depending on environment)!
- Supports three networking modes,  AP, STA, WDS, support up to 32 users simultaneously online control:
- Network Direct integration, support TCP client, TCP server, UDP protocol
- Support network WEB parameter settings, you can connect to a wireless router to get wireles wifi control.  default IP: 192.168.1.110, port 6000, admin / admin
- Standard 9V or 12VDC power supply (default 12v) , can be round hole or terminals type. (Leave message when ordering)
- Support Android mobile phone for wifi control
- Supports a variety of control modes. Supports digital input trigger relay switches, remote real-time control, timing control mode
- Easy to configure. Each channel can be configured among three modes.
- Trigger delay can be configured. 1-99 seconds.
- Auto power off memory. automatically save the last switch state when disconnected, restore after power on.
- Single or multiple jog control. Time delay control single channel or multi-channel at the same time.

NOTE: The power supply is 9/12V, optional,please leave us a message about the one you want.

Package List:
- 1 x Network Relay Controller
- 1 x Antenna
- 1 x RJ45 cable 1.8m
- 1 x DC 9/12V power adapter (optional)
