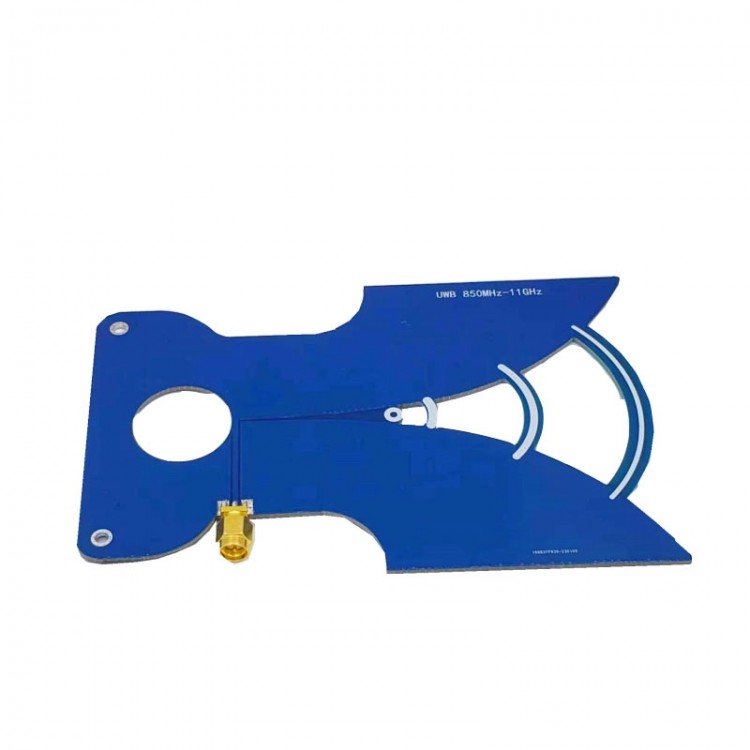

840MHz - 11GHz UWB Antenna with SMA Male Connector 7dBi High Gain Ultra Wide Band Antenna
Description:

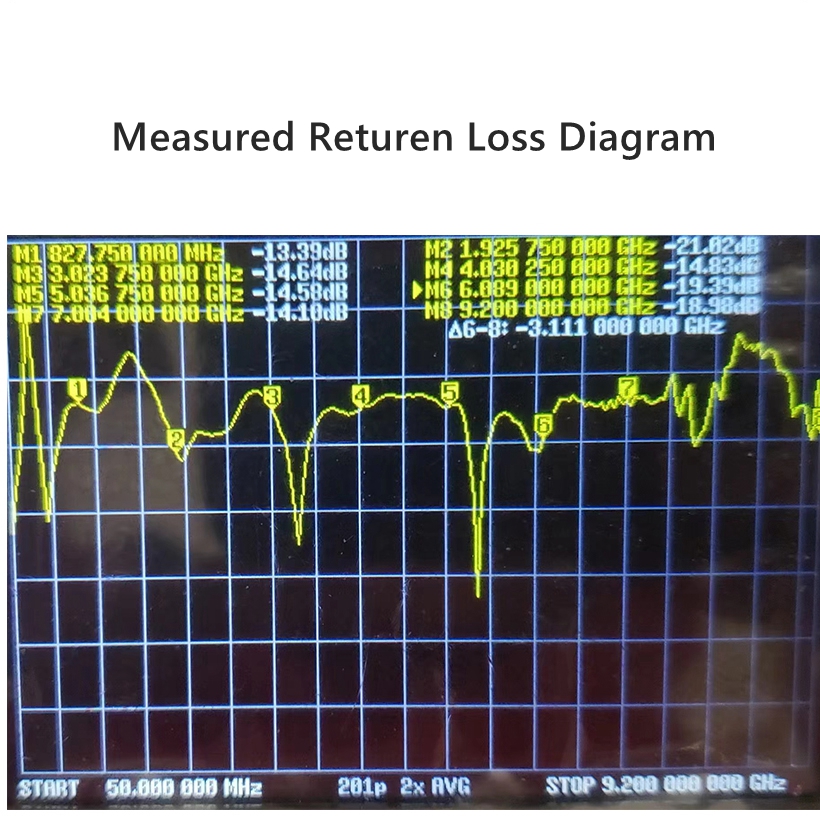

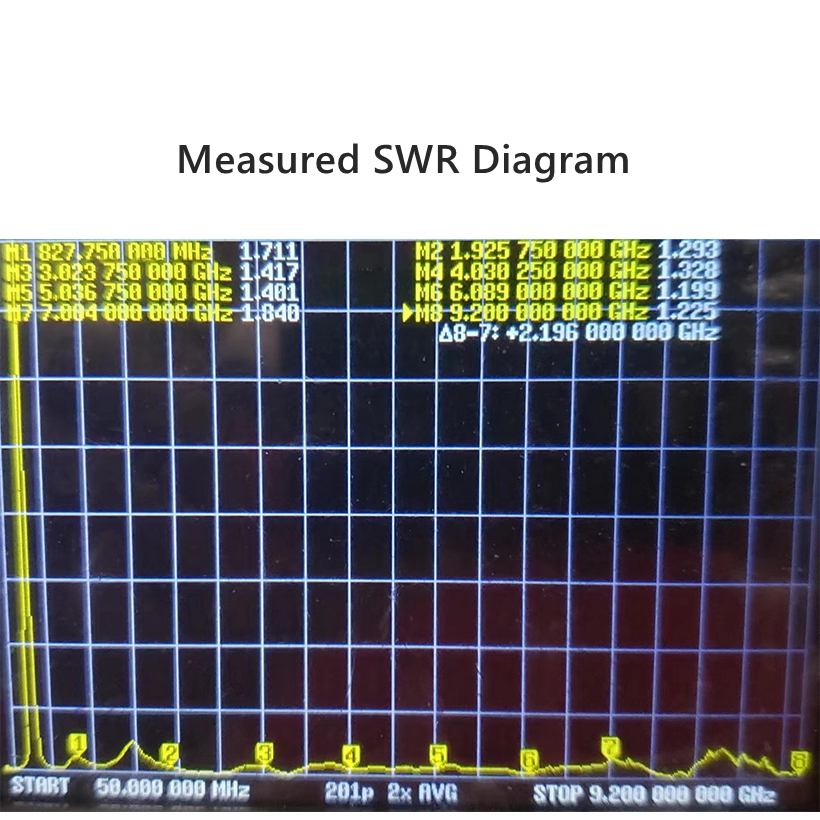

- This antenna is a coplanar linearly polarized directional ultra wide-band antenna, which has been designed, debugged, and optimized for multiple versions. The final operating frequency can range from 840MHz to 11GHz, with a standing wave ratio of ≤1.8, and a return loss of < - 12dB in the operating frequency band. This antenna can be used for receiving and transmitting signals from aircraft, positioning, image transmission, meteorology, astronomy, etc.
Specification:
- Working frequency: 840MHz - 11GHz
- Impedance: 50ohm
- Gain: 7dBi
- SWR: >1.8 (typical value)
- Input maximum power: 10W
- Connector type: SMA Male (SMA-J)
- Size: 150 x 100mm
Package Included:
- 1 x UWB Antenna (SMA-J Connector)

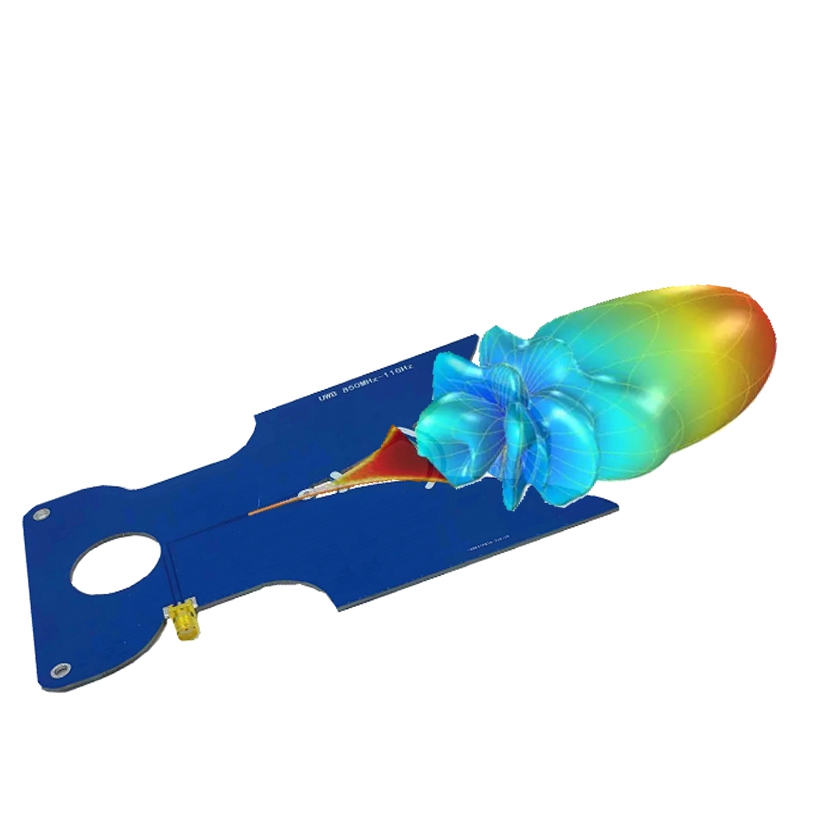

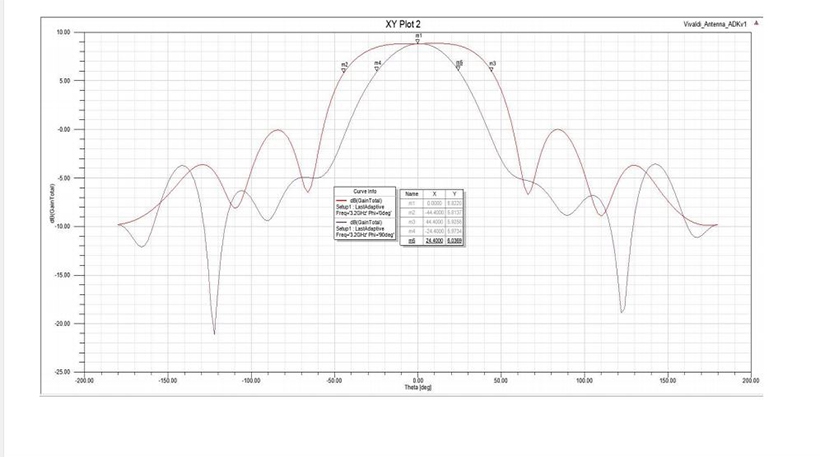

The radiation angle of the antenna operating to 3.2GHz at - 3dB is shown in the figure:
H=88.8°, E=48.8°, maximum gain: 8.82dBi
