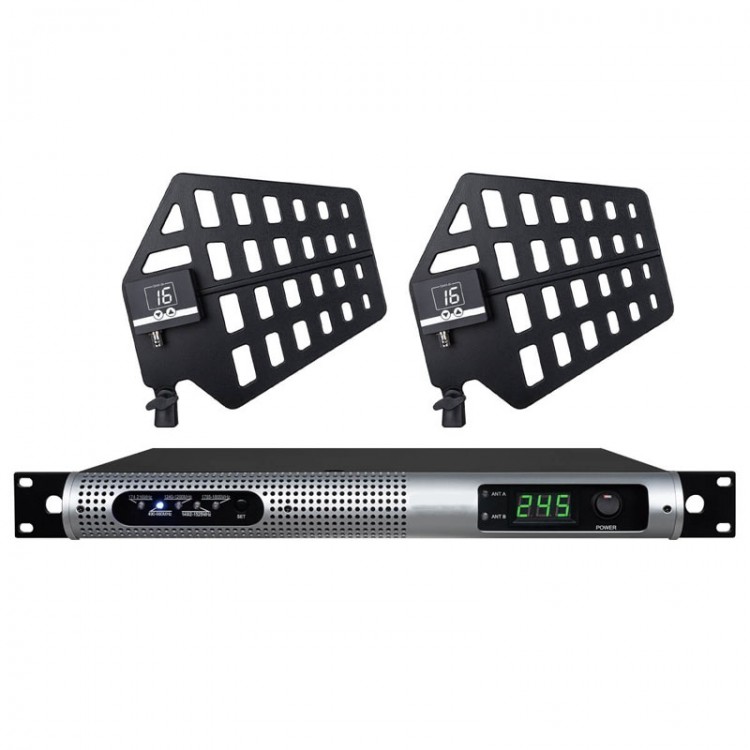

876 5CH Antenna Distribution System Antenna Distributor w/ Large Main Unit for UHF Wireless Systems
Description:
It is a wideband 5-channel antenna distribution system with low internal modulation distortion. With stable performance and exquisite design, it is suitable for UHF wireless systems. It supports the application of 2-4 wireless series or other series wireless systems.
Features:
- With a pair of antennas, it can support 2-4 wireless series and other series of wireless systems to work, simplifying the antenna assembly project and improving the working efficiency of the systems.
- Precise circuit design: it boasts low noise and low inter-modulation distortion. And it can eliminate mixing interference when multiple channels are used at the same time.
- Antenna input sockets can be directly configured with BK-876 directional antennas, to ensure the stability of large-area, multi-directional long-distance wireless transmission and transmission signal.
- With real-time display of input voltage, the stability of the input voltage can be displayed in real time.
Antenna Parameters:
- Frequency range: 480-950MHz
- Directionality: Cardioid
- Polarization: Linear
- Gain: -16 to 16db (1dB in manual steps)
- SWR: <2
- Low-noise amplifier: <0.6dB
- Amplifier OIP3: >38dBm
- External power supply: 6-12DCV
- Current: 150mA
- Connector port: BNC
Main Unit Parameters:
- Frequency range: 450MHz-950MHz (positive and negative deviation is not higher than 10%)
- Total gain: 0dB, ±1dB
- Resolution: >25dB
- Input/output impedance: 50 ohms
- Connector port: BNC
- Antenna power supply: +12V DC/200mA. The central point is the positive pole
- DC output: 12V DC/1A(MAX)*4 groups. The central point is the positive pole
- Power supply: 100-240V AC, 50/60Hz 36W
Package Included:
- 1 x Main unit
- 2 x Antennas
- 1 x Power adapter
- 4 x DC power cables
- 2 x 2.5m connection cables
- 10 x 0.5m connection cables
- 2 x Bracket connectors
- 10 x Screw-on adapters
- 1 x Aluminum case
Packaging Details:
- Weight: 8.5kg
