96x48mm CHB Load Cell Display + S-Shaped Load Cell Weight Sensor (0-200KG) for Tension & Compression

96x48mm CHB Load Cell Display + S-Shaped Load Cell Weight Sensor (0-200KG) for Tension & Compression

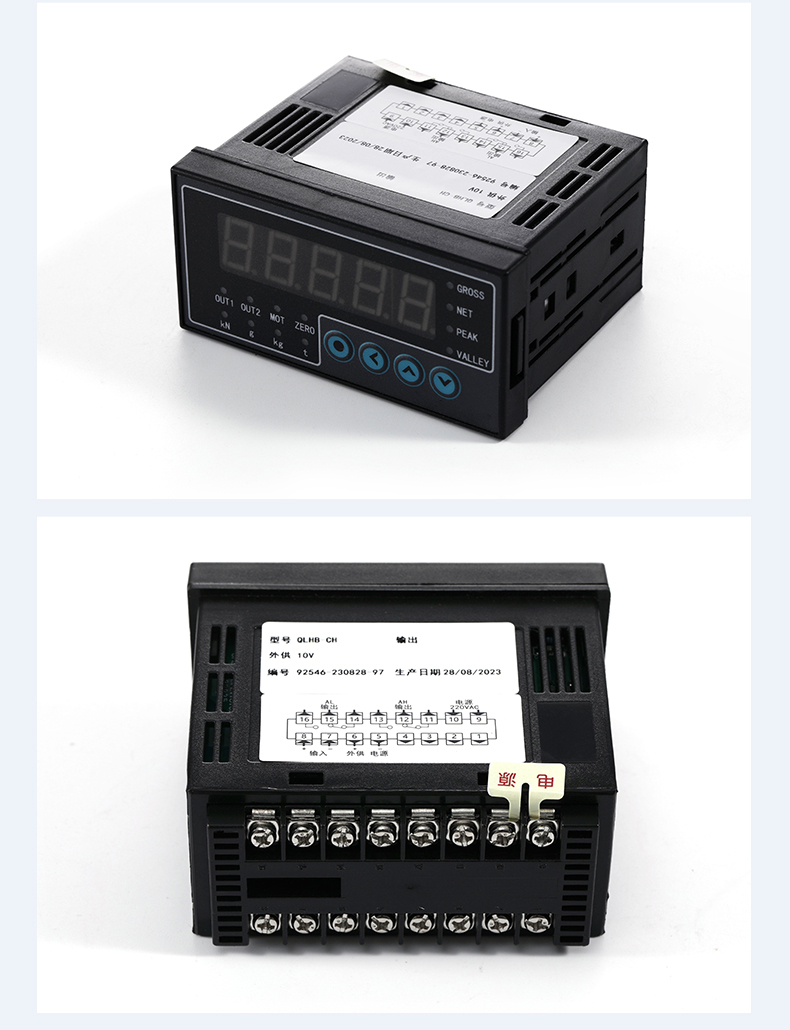

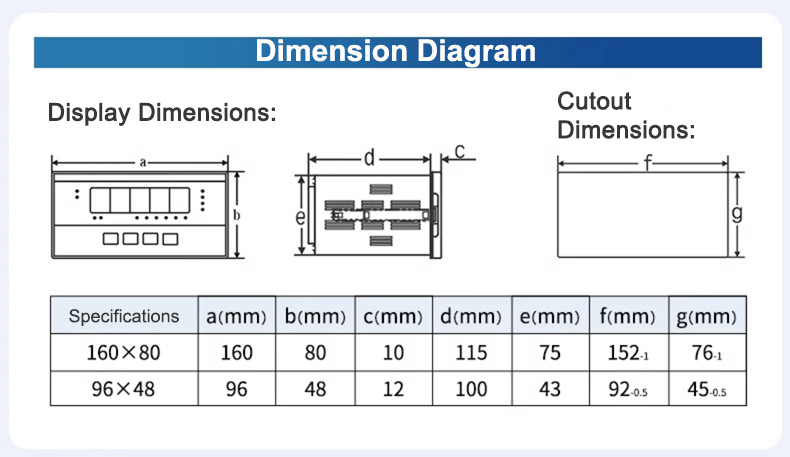

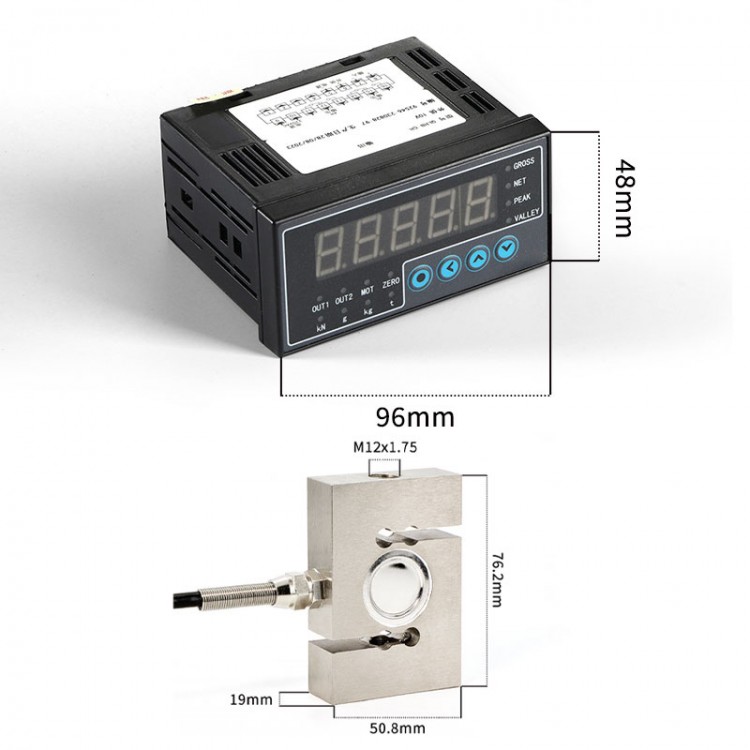

96x48mm CHB Load Cell Display:
1. Description:
The load cell display adopts a 24-bit A/D converter. When used with various sensors and transmitters, it can measure physical parameters such as pressure, flow, level, composition analysis, force, and mechanical quantities. It also supports display, alarm monitoring, data acquisition, and recording of these parameters.

2. Features:

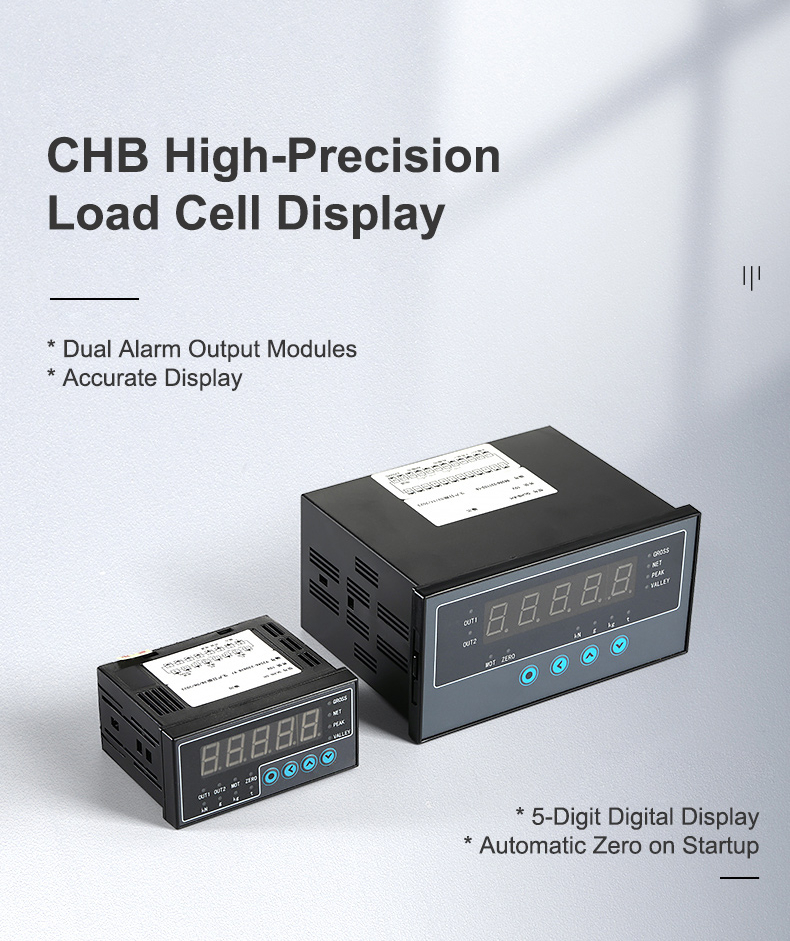

* High-Precision Display: Dual alarm output modules and accurate display
* 5-Digit Digital Display: Automatic zero on startup

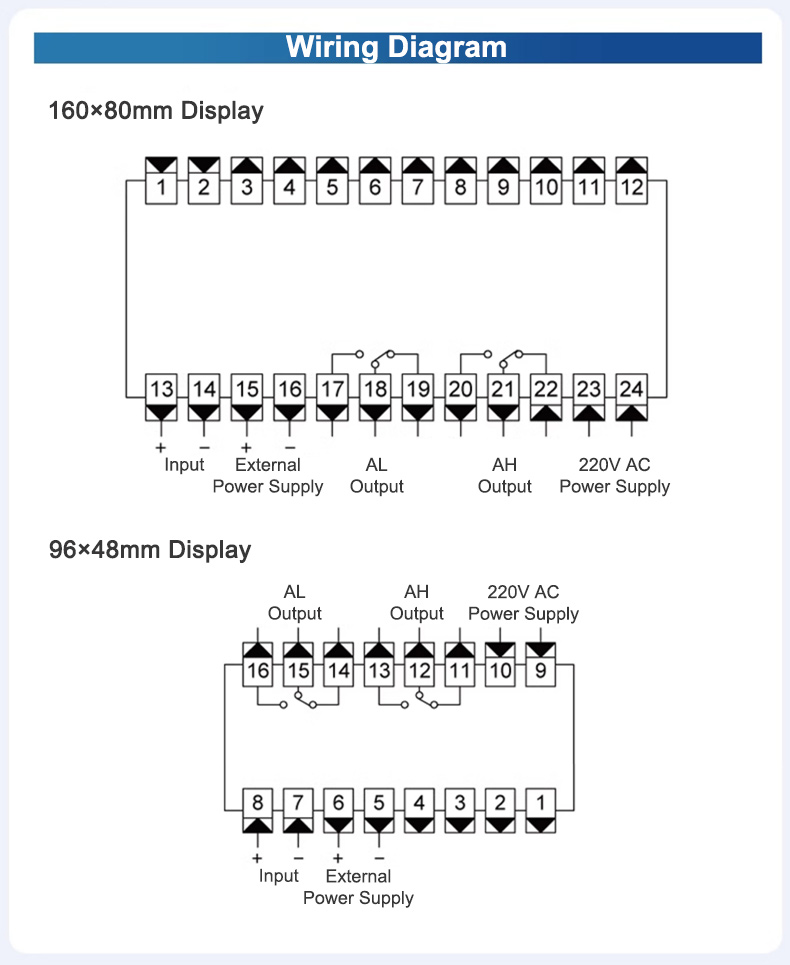

* Clear Wiring Labels: Wiring terminals are clearly marked for quick and easy installation.
* Ventilation Grilles for Excellent Heat Dissipation: Multiple ventilation grilles enhance airflow, ensuring excellent thermal performance.
* High-Quality Enclosure: Durable plastic housing with excellent insulation and mechanical strength.
* Application Scenarios: Suitable for industrial automation measurement and control systems involving various force measurement and weighing devices. Applicable to hopper scales, floor scales, testing machines, industrial automation systems, mixing stations, and belt scales.

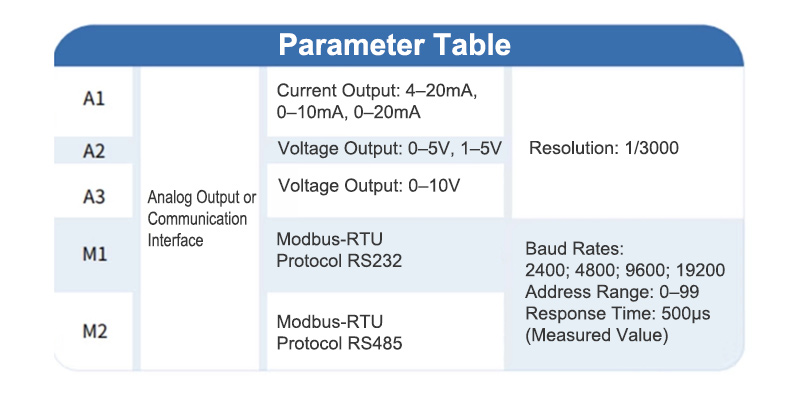

3. Technical Specifications:
* Power Supply Voltage: AC power 100–240 V AC, 50/60 Hz
* Power Consumption: Below 7 VA for AC power
* Allowable Voltage Variation Range: 90% to 110% of power supply voltage
* Insulation Resistance: Above 100 MΩ (measured at 500 V DC MEGA)
* Withstand Voltage: 2000 V AC, 50/60 Hz for 1 minute; IEC61000-4-2 (Electrostatic Discharge), Level III
* Interference Immunity: IEC61000-4-4 (Electrical Fast Transient/Burst), Level III; IEC61000-4-5 (Surge), Level IIII
* Protection Level: IP65 (front part of the product)
* Ambient Environment: Operating temperature: -10 to 55°C; Storage temperature: -25 to 65°C; Operating humidity: 35% to 85% RH; Storage humidity: 35% to 85% RH
* Measurement Control Speed: 10 times per second
* Basic Error: ±0.05% of full scale
* Display Range: -19999 to 45000; shows "OL" when overloaded

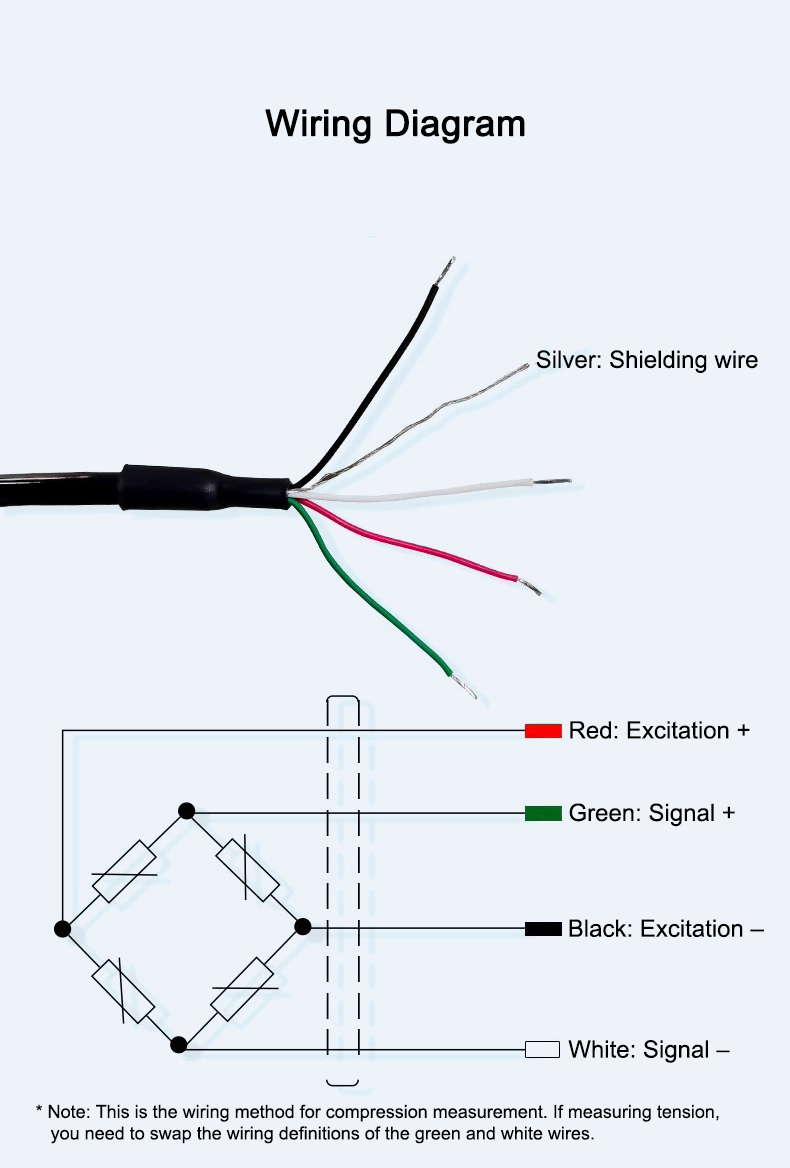

* Ratio Measurement: Compatible with 4-wire strain gauge sensors
* Input Signal: Suitable for 0.8 to 2.5 mV/V

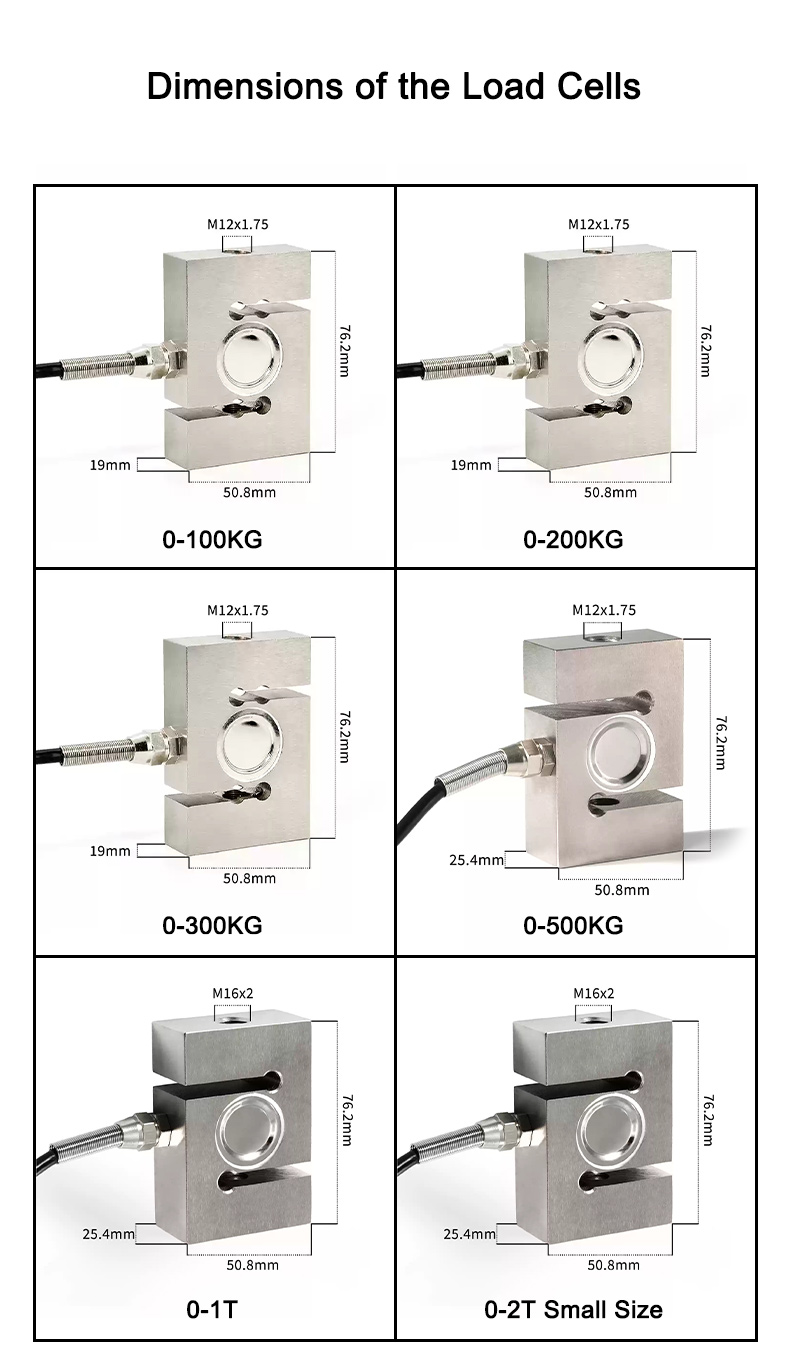

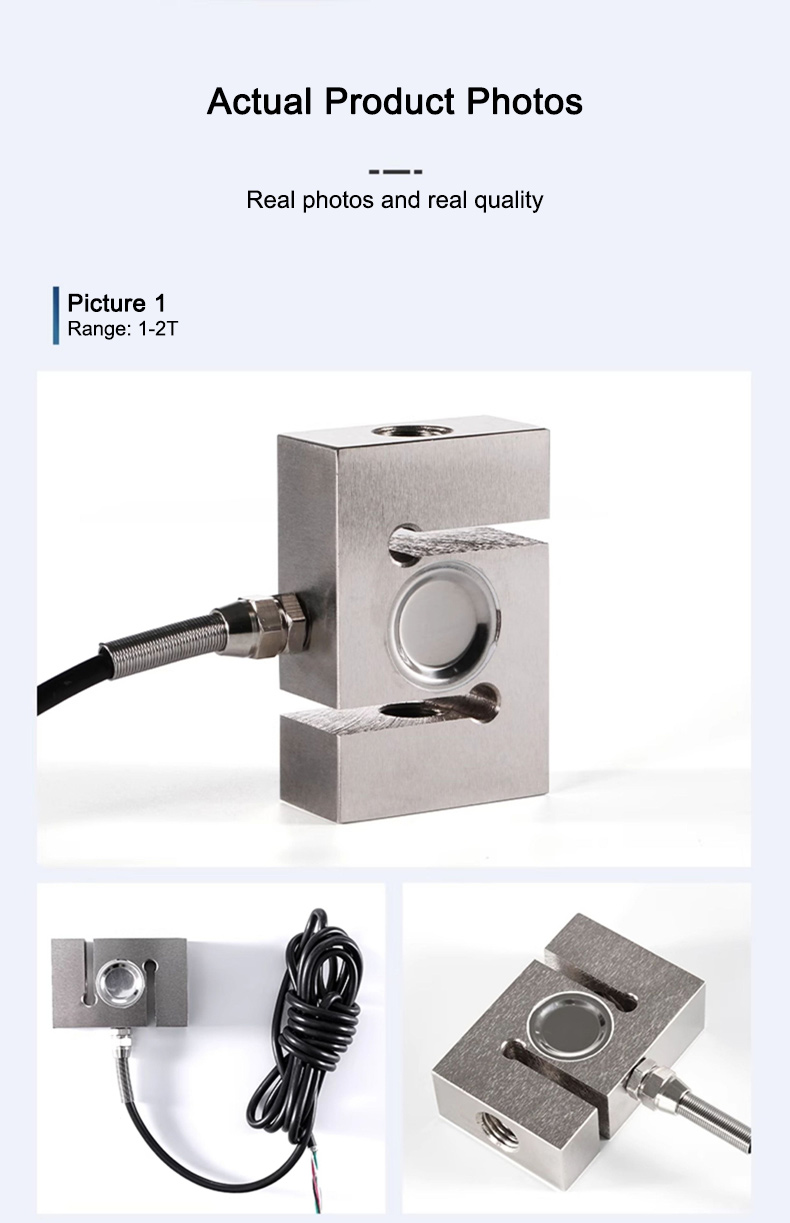

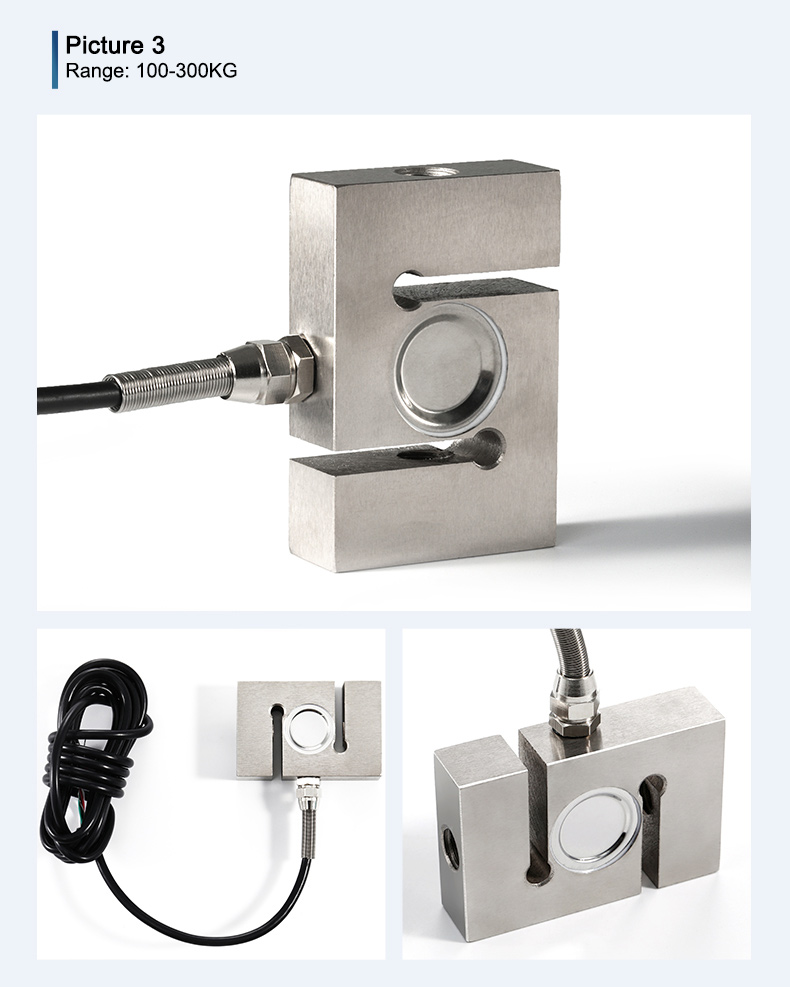

Load Cell Sensor:

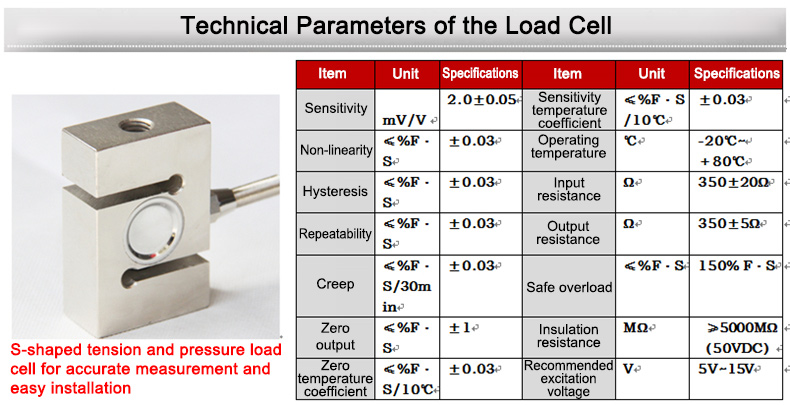

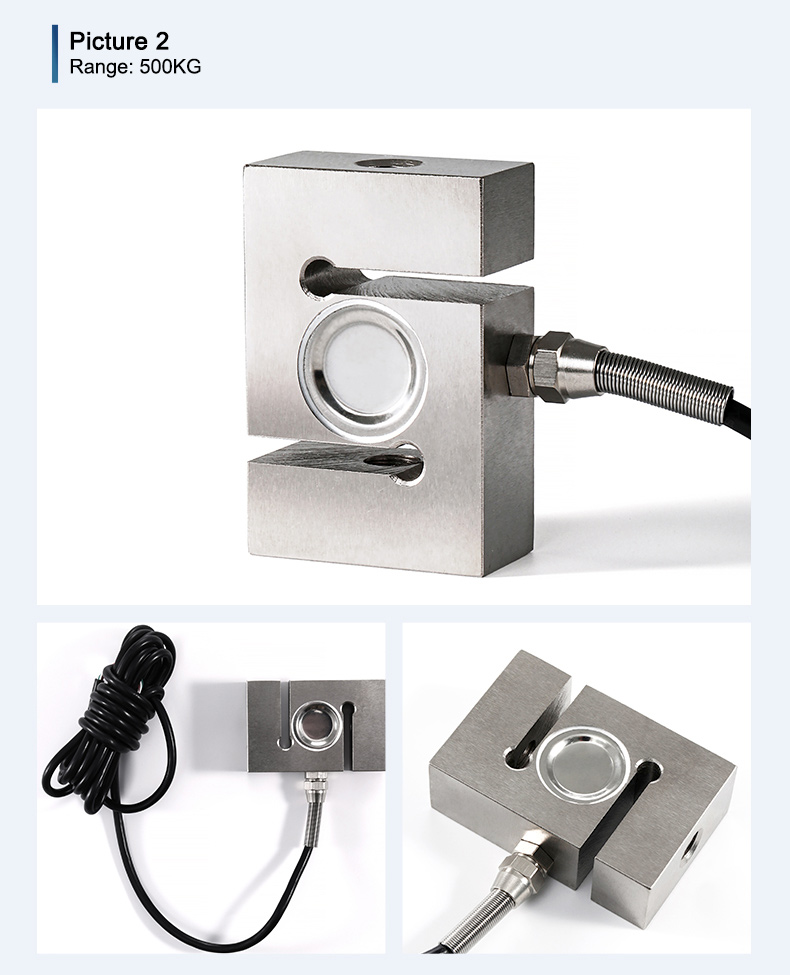

* Integrated Tension and Compression Use: The S-shaped tension and compression load cell offers accurate measurement and easy installation.

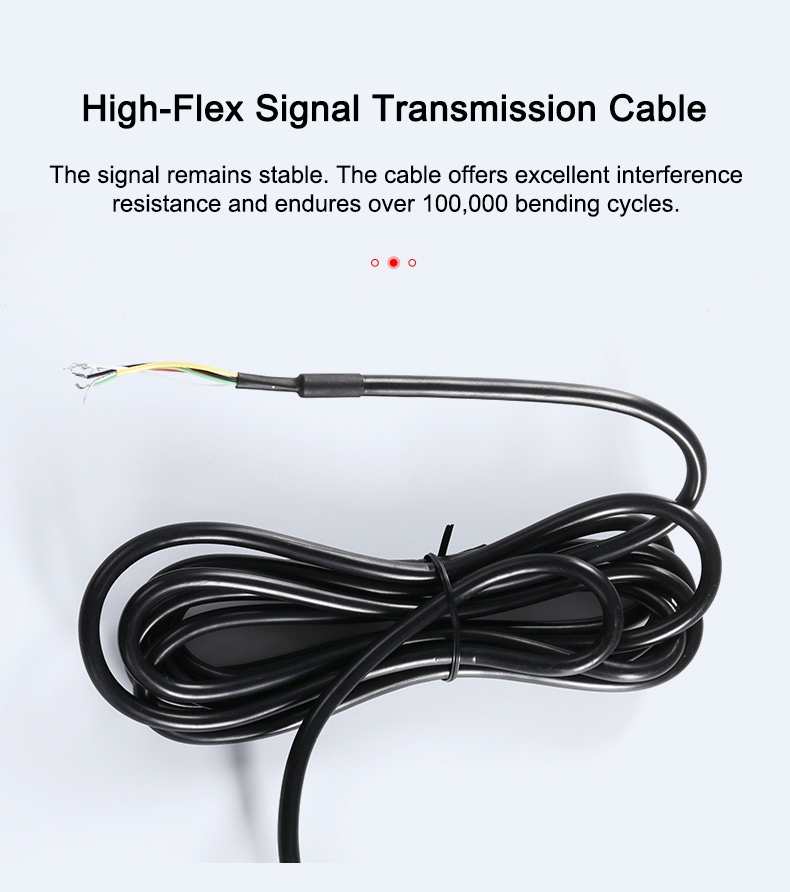

* High-flex signal transmission cable: The signal remains stable. The cable offers excellent interference resistance and endures over 100,000 bending cycles.
* Corrosion-Resistant Stainless Steel Housing: The housing features high toughness and excellent fatigue strength.
* German Imported Sensing Element: Delivers better and more reliable performance.
* High-Standard Pressure-Resistant Structural Design: Withstands 1.5 times the rated pressure, significantly extending the sensor's service life.
* Original Connector for Hirschmann: Triple-sealed for effective waterproof and dustproof protection.
* High-Precision Strain Gauge from AVIC: Offers excellent heat resistance, low creep, minimal thermal hysteresis, long-term stability, and high measurement accuracy. It can operate under extreme conditions such as low temperatures, high temperatures, and high pressure.
* Application Scenarios: Suitable for electronic scales, high-precision medical equipment, IoT data analysis, industrial automation, force data acquisition and transmission, R&D, and debugging. It can be used in high-precision devices, force data acquisition systems, testing machines, and industrial automation.

Packing List:
* 1 x 96x48mm CHB Load Cell Display
* 1 x Load Cell Sensor

Packaging Details:
* Weight: 1kg
