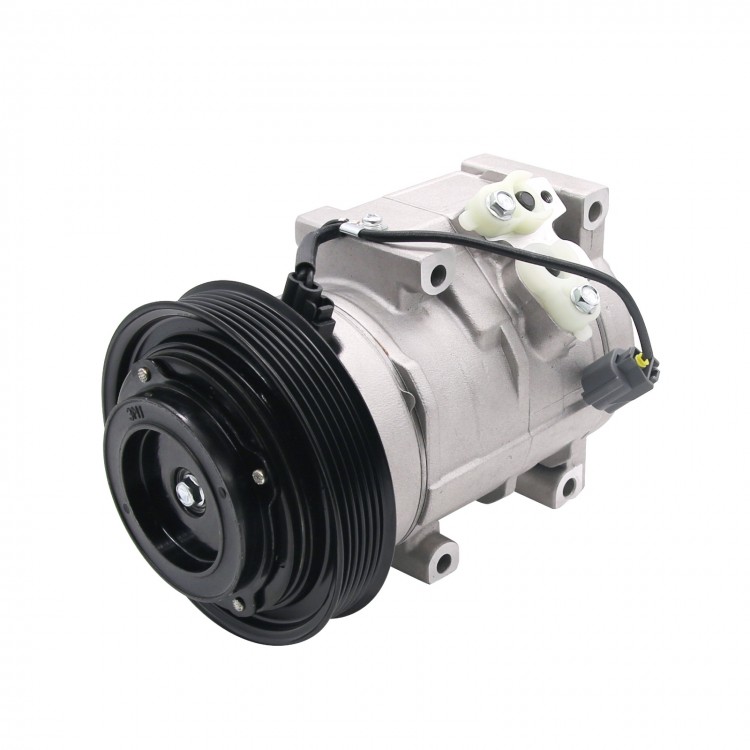

A/C AC Compressor 38810RCAA01 for Acura TL V6 3.2 Honda Odyssey Pilot Ridgeline

A/C AC Compressor 38810RCAA01 for Acura TL V6 3.2 Honda Odyssey Pilot Ridgeline

Fit For:
- 2003-2006 Acura MDX 3.5L
- 2004-2008 Acura TL 3.2L
- 2007-2008 Acura TL 3.5L
- 2003-2007 Honda Accord 3.0L
- 2005-2007 Honda Odyssey 3.5L
- 2005-2008 Honda Pilot 3.5L
- 2006-2008 Honda Ridgeline 3.5L

Interchange Part Number:
1462007830; 146200-7830, 38110RDJA01; 38800RDAA01, 38800RDAA012; 38800RDJA01, 38800RDJA012; 38800RDJA012M1, 38800RDJA02; 38800RDJA023, 38800RGLA02; 38800RGLA021, 38800RGM5050; 38800RJEA02, 38800RJEA021; 38800RYP5050, 38810RCAA01; 38810-RCA-A01, 38810RCJA01; 38810RCJA02, 38810RDAA01; 38810-RDA-A01, 38810RDJA01; 38810-RDJ-A01, 38810RGLA01; 38810-RGL-A01, 4372305040; 437230-5040, 4472204091; 447220-4091

Note:
- Please make sure that this part fits your vehicle. Thank you!
- Professional installer is highly recommended.

Installation Method:
1. Remove compressor:
Remove the A/C belt from the A/C compressor pulley. May involve loosening the belt tensioner (if equipped).

2.Receiver drier or accumulator, orifice tube or expansion valve.

3.Disconnect the negative battery cable.

4.Remove the bolt that secures refrigerant lines to the A/C compressor. Inspect A/C lines for any contamination such as metal or excessive dirt inside of them. If you find any contamination the system will need to be cleaned.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before the  evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet.

5.Drain all the oil from the new compressor ,if you compressor has a drain plug you will need to open it up and drain what oil is in there too.

6.Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated.

7.Install new receiver drier or accumulator and new orifice tube or expansion valve.

8.Evacuate the A/C system for a minimum of one hour.

9.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system.

10.Turn on the A/C system with the engine running and check to see if cold air is now coming out of the air duct.

11.If the A/C system is functioning ,you may find that your electric radiator fan and compressor clutch will be cycling off and on depending on the outside air temperature.

Pay Attention:
- Please add 70-80% refrigerant, do not need to fill up.
- Noise is generated if too much refrigerant is added.

Note:
1. Compressed air and electrical appliances are dangerous, so it is of great importance to make sure the power has been cut off before repair or service the machine, at the same time the engineer should push a warning sign to avoid hurting someone else.
2.Shutdown maintenance must wait for the whole A/C compressor cooling down and the compressed air is safely released, meanwhile the maintainer need to avoid any vent closing their relevant isolating valve as much as possible.
3. Adopted no-corrosive safety solvent to cleanout the component is very important. Flammable,exposive and volatile detergent is banned.
4.It is of great importance to examine protective system regularlly to make sure their sensitivity and reliability, once a year is okay.

Package Included:
- 1 x A/C Compressor
