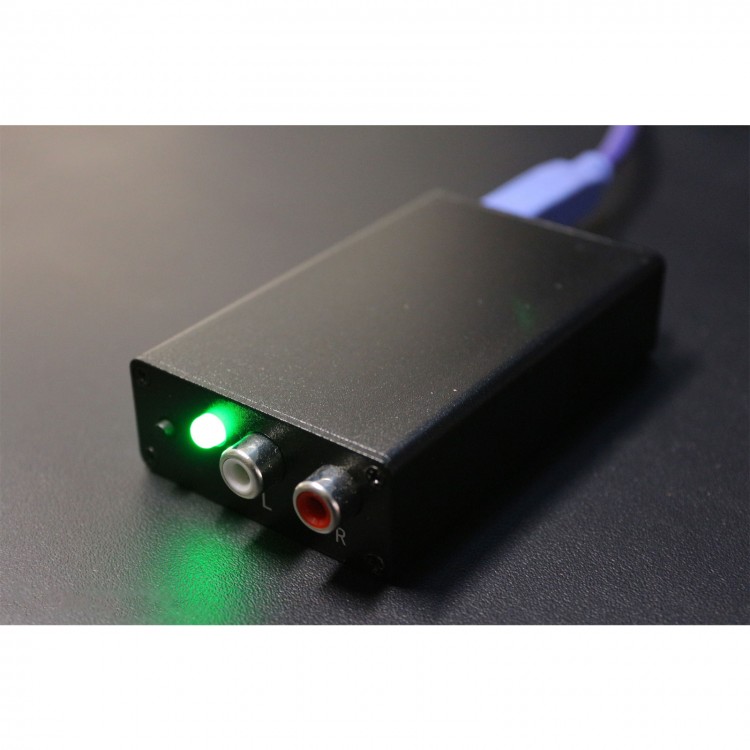

A61 Analog to Digital Converter RCA to Optical & Coaxial Output ADC w/ 44.1KHz 88.2KHz & 176.4KHz
Description:
The ADC transforms analog signals into digital optical and coaxial output, enabling connection to DACs.
Specifications:
* Analog Input: RCA (L/R)
* Input Level: Max. 2Vrms (≈ 2.8V peak)
* Digital Output: Optical and Coaxial PCM, 0dBu level
* Sampling Rates: 44.1 KHz, 88.2KHz and 176.4KHz
* Signal-to-Noise Ratio: 100dB
* THD: < 0.005% (20Hz–20kHz)
* Dimensions: 47mm × 80mm
* Coaxial Output Maximum Sample Rate: 192kHz/176.4kHz
* Optical Output Maximum Sample Rate: 96kHz/88.2kHz
LED Colors Represent Sampling Rates (for 44.1kHz/88.2kHz/176.4kHz version):
* Blue: 44.1kHz
* Green: 88.2kHz
* Red: 176.4kHz
Packing List:
* 1 × ADC
* 1 × USB Cable (for 5V power adapter)
Packaging Details:
* Weight: 0.3kg
Note:
* Power adapter is not included. The USB cable is compatible with standard 5V/1A USB phone chargers.
