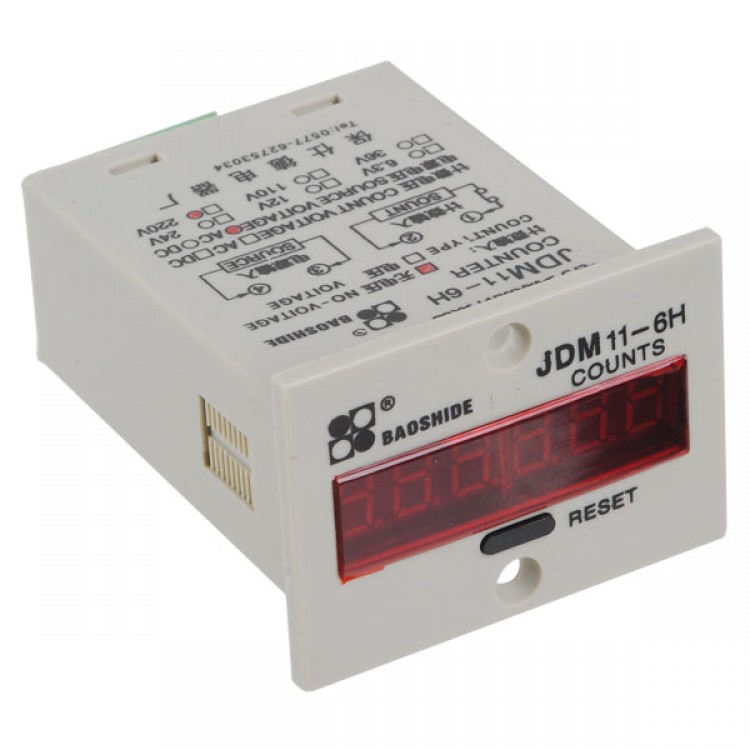

AC 220V 0-999999 Electronic Accumulate Counter JDM11-6H without Voltage Count
Descriptions:
- The signal input circuit should be near to the wiring terminals of the Counter. The input wire should be short and avoid wiring with the stronge electric wire and power line together. The Shielding Line will be the best choice if possible.
Contacts input should be reliable and avoid the wrong counting caused by contacts rebounding. If there is wrong counting, 4.7uF electronic capacitor can be connected between terminal 1 and 2 ( only suitable for no voltage count input type counter).
- NPN (PNP) sensor (DC 12V/24V) is NPN (PNP) type approach switch or photoelectric switch. Please Note the poles of power when connecting.
Specfication:
| Product Name | Relay Counter |
| Model | AN-11(JDM11-6H) |
| Power | AC 220V, 50Hz |
| Display Range | 0 ~ 999999 |
| LCD Display Size | 0.36" |
| Working Temperature | -10°C ~ +40°C |
| Counting Speed | 10 per second (pulse width 50ms) |
| Reset Type | Panel Button Reset |
| Mounting Type | Panel Mount |
| Panel Size | 56 x 42 x 3mm/ 2.2" x 1.65" x 0.12" (L*W*T) |
| Total Depth | 88mm/ 3.5" |
| Mounting Hole Size | 51 x 26mm/ 2" x 1" (L*W) |
| Color | Gray |
| Material | Plastic, Metal |
| Net Weight |
75g |
| Package Content |
1 digital counter |
