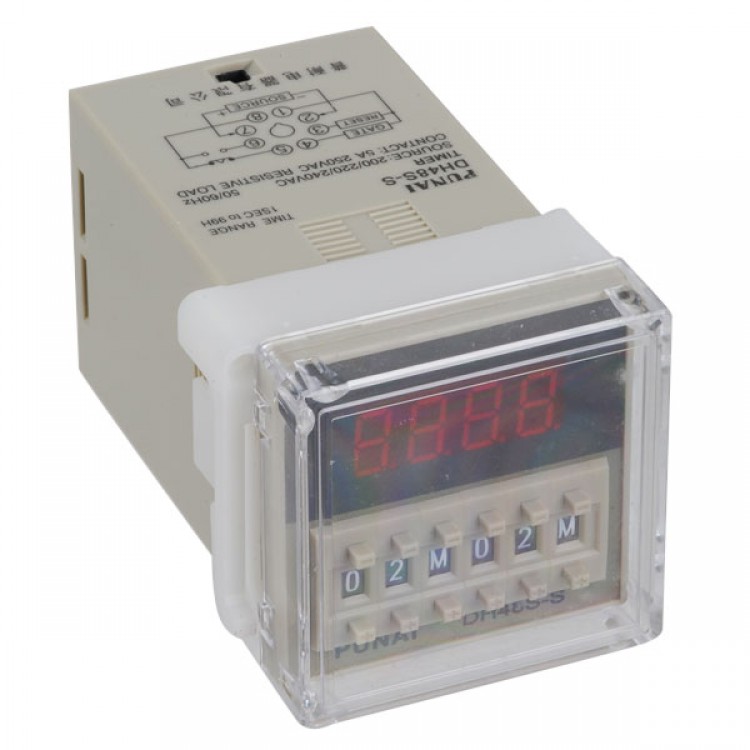

AC 220V Digital Timer Programmable Circle Double Time Delay Relay DH48S-S
Description:
- Please pay attention to the Working Voltage to make sure the time relay can be used at your place before ordering.
- Timing Range: 0.1S-9.9S 1S-99S 0.1M-9.9M 1M-99M 0.1H-99H.
- Channel A & Channel B's time units can be set at discretion, for a example 11S-9.9M 50S- 99M, 2M-99H etc.
- Contacts Number:one Group Delay NC & NO.
- Used widely for timing delay control in the industrial automation system and mechanical equipment
Specification:
Product Name | Timer Time Delay Relay |
Model Number | DH48S-S |
Digit Display | 4 |
Working Voltage | AC 220V 50/60Hz |
Contact Capacity | AC 250 5A |
Time Range | 0.1S - 99H |
Installation Model | Panel Mounting |
Casing Material | Plastic |
Total Size(Included Socket) | 10 x 5.5 x 4.5cm/3.9" x 2.2" x 1.8"(Max.L*W*T) |
Net Weight | 213g |
Package Content | 1 x Digital Time Delay Relay |
