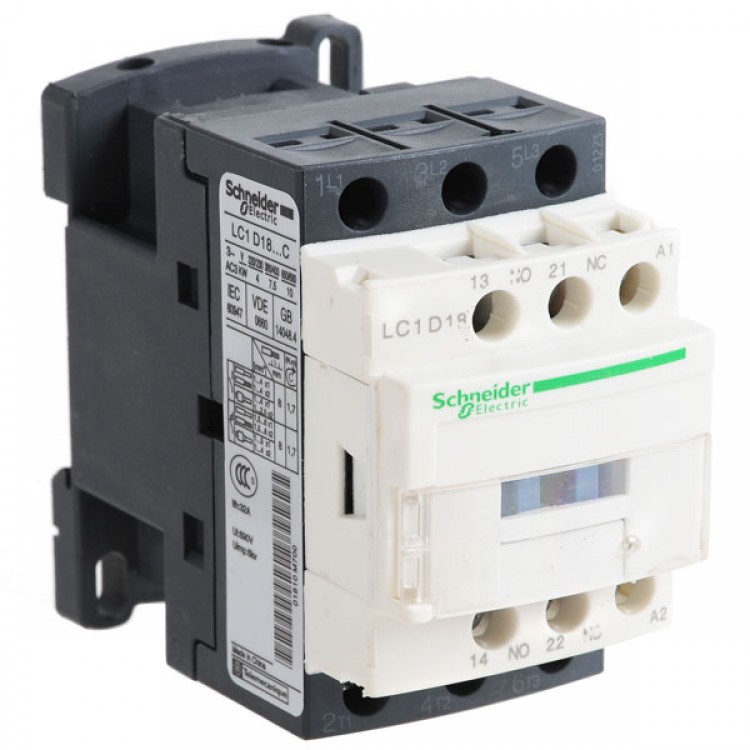

AC 24V Coil Power Contactor18A 3P+NO AC Contactor LC1 D18 B7C
Descriptions:
- LC1 D18 AC Contactor is suitable for making & breaking, frequently starting & controlling the AC motor.
- Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.
Specifications:
| Product Name | AC Contactor | ||
| Model Number | LC1 D18 | ||
| Coil Voltage | AC 24V | ||
| Rated Operation Current(AC-3) | 18A | ||
| Capacity of 3-phase squirrel-cage motor(AC3) | 220/230V | 380/400V | 660/690V |
| 4KW | 7.5KW | 10KW | |
| Number of Contact | 3P+NO | ||
| 3P+NC | |||
| Conventional Thermal Current(Ith) | 32A | ||
|
Insulation Voltage(Ui) |
690V | ||
| Rated Impulse withstand Voltage(Uimp) | 6KV | ||
| Overall Size(Approx.) | 77 x 45 x 87mm/3.0" x 1.8" x 3.4"(L*W*H) | ||
| Material | Plastic, Metal, Electronic Parts | ||
| Color | Gray, White | ||
| Weight | 335g | ||
| Package Content | 1 x AC Contactor | ||
