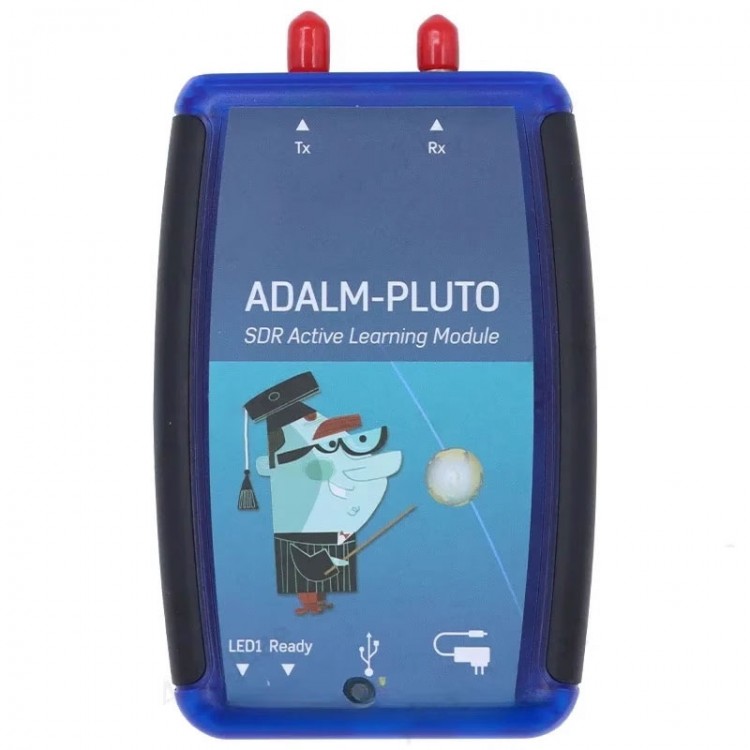

ADALM-PLUTO Portable 325MHz-3.8GHz SDR Development Board Software Defined Radio Active Learning Module with Shell

ADALM-PLUTO Portable 325MHz-3.8GHz SDR Development Board Software Defined Radio Active Learning Module with Shell

Description:
- This active learning module helps to introduce RF and communication fundamentals as advanced electrical engineering topics, whether through self-study or instructor guidance. The active learning module (model of ADALM-PLUTO) is perfect for anyone, including developers using software defined radio or any RF application.

- Software defines radio as a technology that provides a reusable 'future proof' radio platform due to its powerful software configuration and control, improved system performance, reduced system size, minimized design risk, and time to market. The active learning module is based on the AD9363 highly integrated RF agile transceiver and for Xilinx Zynq Z-7010 FPGA, making the tool extremely portable, independent, and efficient.

- Whether you are an educator, student, or even an RF developer, the size of this active learning module is perfect and can be used for almost any prototype or learning application. Considering its high quality as an analog device product, this module is a supplement to its product line and the entire RF industry.

- Even with RF coverage ranging from 325MHz to 3.8GHz, the module itself can provide up to 50MHz of instantaneous bandwidth. This module also provides support for Matlab and Simulink, making it very easy to educate and having multiple different language APIs. This easy-to-use module is essentially a portable RF laboratory that connects RF theory with RF practice.

- Specially designed for teachers, students, and self learners: For PlutoSDR has independent receiving and transmitting channels and can operate in full duplex. The active learning module can generate or acquire RF analog signals ranging from 325 MHz to 3800MHz, with a sampling rate of up to 61.44Mbps (MSPS). For PlutoSDR is compact in size and can fit into a shirt pocket. It is completely independent and powered entirely by USB when using the default firmware. For PlutoSDR is supported by the driver for Libiio, it supports for OS, Windows, and Linux, allowing students to learn and explore on various devices.

Specification:
- Power: 4.5V - 5.5V
- Product size: 117 x 79 x 24mm
- Net weight: 114g
- Temperature range: 10℃ to 40℃

Conversion performance and clock:
- ADC and DAC sampling rate: 65.2kSPS - 61.44MSPS
- ADC and DAC resolution: 12bit
- Frequency precision: ±25ppm
- Tuning range: 325MHz - 3800MHz
- TX power output: 7dBm
- RX noise ratio: <3.5dB
- RX and TX modulation precision (EVM): -34dB (2%)
- RF shielding: without

Digital parameters:
- USB: 2.0 OTG
- Core: single ARM Cortex-A9 (667MHz)
- FPGA logic unit: 28k
- DPS fragmentation: 80
- DDR3L: 4Gb (512MB)
- QSPI flash: 256MB (32MB)

Package Included:
- 1 x Development Board (with Shell)
