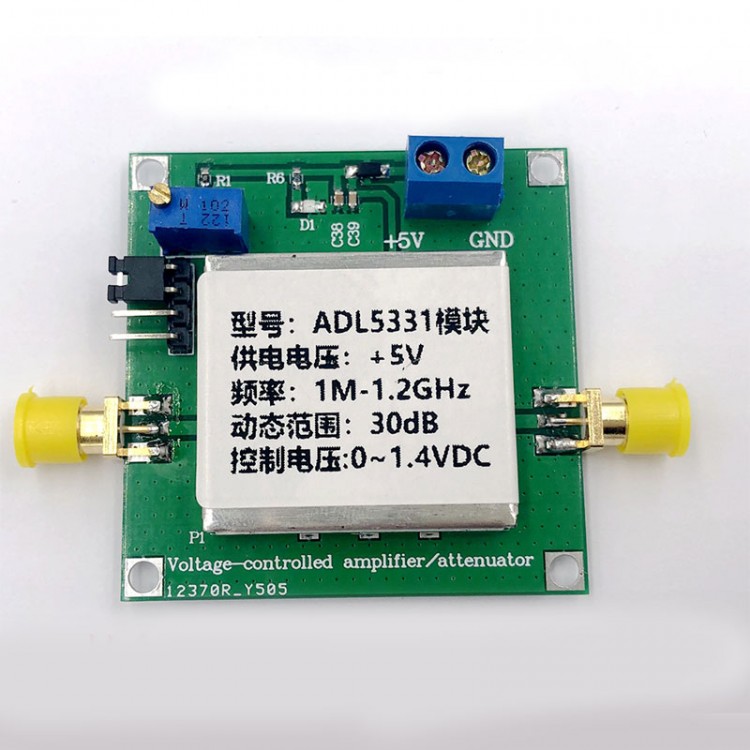

ADL5331 Amplifier Module Variable Gain RF Amplifier Board 1M-1.2GHZ VCA
Module Parameters:
1. Voltage control amplifier / attenuator
2. Operating frequency: 1 MHz to 1.2 GHz
3. Input impedance: 50Ω
4. Output impedance: 20Ω
5. Wide gain control range: 30 dB
6. Linear dB gain control function: 40 mV / dB
7. Single power supply voltage: 4.75 V to 5.25 V

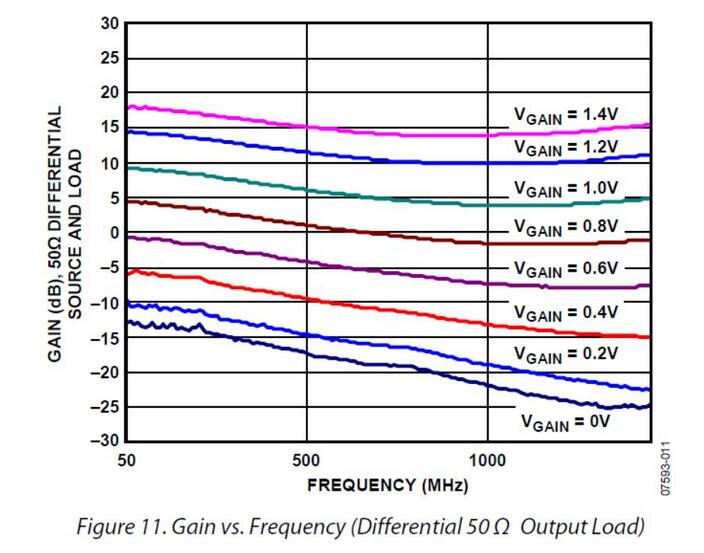

8. The reference gain curve is as follows:
Features:
Voltage-controlled amplifier/attenuator
Operating frequency: 1MHz to 1.2GHz
Optimized for controlling output power
High linearity: OIP3 47 dBm @ 100 MHz
Output noise floor: -149 dBm/Hz @ maximum gain
Input impedance: 50Ω
Output impedance: 20Ω
Wide gain-control range: 30 dB
Linear-in-dB gain control function: 40 mV/dB
Single-supply voltage: 4.75V to 5.25V
Applications:
Transmit and receive power control at RF and IFCATV distribution.
Package Included:
1 x Amplifier Module
