AIFEN-A9 Pro 120W Soldering Iron Station Soldering Station Kit with C115 Handle and 3 Soldering Tips

AIFEN-A9 Pro 120W Soldering Iron Station Soldering Station Kit with C115 Handle and 3 Soldering Tips

Description:
The AIFEN-A9 Pro smart soldering station is compatible with C115/C210/C245 handles. The soldering station kit can be used for BGA phone and PCB repair.

Features:
- The handle with buttons to control temperature and can be used to turn on/off
- Larger plug-in box design adapts to C245/C210/C115 tips
- Sleep bracket with adjustable angle
- The temperature control of the program chip is different from the traditional AC voltage temperature control, and the temperature rises quickly and accurately
- Automatic sleep: the handle is placed on the stand and it will immediately switch to sleep state. And it will heat up immediately when raised
- The temperature compensation function automatically compensates the temperature of the soldering iron tip during soldering, so that the soldering iron tip is always kept at the set temperature
- Mechanical short-circuit protection: when the machine is short-circuited, it will automatically stop operating to protect the machine
- There are 4 sets of standby temperature (0°C, 150°C, 180°C & 200°C), and the standby temperature can be set according to your needs
- Key lock, °C and °F conversion, buzzer and other functions

Specifications:
- Power: 120W maximum
- Input voltage: Universal AC 220V/ AC 110V
- Frequency: 50-60Hz
- Temperature range: 100°C-450°C/212°F-842°F
- Product size: 24 x 21 x 17.7cm/9.4 x 8.3 x 7"
- G.W.: 1.55KG/3.4LB

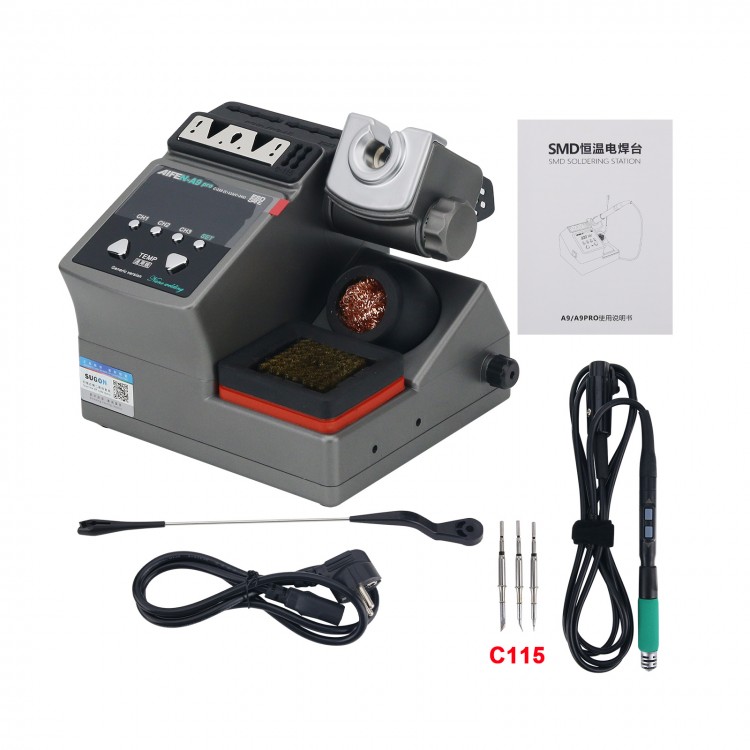

Package Included:
- 1 x Set of AIFEN-A9 Pro Soldering Station

Note:
- AIFEN-A9 Pro is suitable for C210/C115/C245 tips.

FAQ:
Q: What is the difference between the tip and handle of C115, C210 and C245?
A: Their main difference is the thickness of soldering tip and the place where it works. C115 is the finest and belongs to the nano-scale. It is mainly used for very fine operations under microscopes such as jump wire (fingerprint). C210 is fine, mainly used for delicate operations such as ordinary jump wires, repairing mobile phones, etc. Its cutter head and face are 2.5 mm. C245 is the thickest. It's about the same as the 936 series. And it is mainly used for computers, automotive parts and maintenance. The cutter head and face are available in 3.5mm and 5.5mm.

Q: Why does the screen display "5-E" as soon as the soldering iron tip is plugged in?
A: "5-E" means that the heating core and soldering iron tip are not plugged in properly. Just pull out the soldering tip and insert it again. If that doesn't work, replace the tip.

Q: After using the soldering station, the soldering iron tip turns black. What can I do?
A: The C210/C245/C115 series tips heat up very quickly. If you are not careful, the soldering iron tip does not eat tin, and it is easy to oxidize and blacken. Just clean the tip with a steel wool ball and re-apply the tin. It is best to use soldering tip refresher. This series of soldering iron tips is relatively fine, and please avoid scraping and rubbing the soldering iron tips. After using the soldering iron tip, please stick tin to protect the soldering iron tip.

Q: The temperature of the soldering iron tip is adjusted to 420°C. Why the temperature is not high than the 280°C of 936?
A: The A9 series is the latest generation of soldering stations. The focus of its development is on small and fine temperature tolerances. The temperature difference of the soldering iron tip of the 936 series is very large, and the actual temperature deviation is large. Instant tin melting is used to cater to beginners. We can't work by feeling. Users need to use the actual measured temperature as the standard.

Q: What are the differences and features between A9 and T21 series and T26D and T36D?
A: A9 series and T21 series both use switching power supply and step-down mode through the circuit board, and the temperature rise is fast and the temperature return is fast. However, in terms of stability and durability, their soldering tips are not as good as the soldering tips of the T26D and T36D that are stepped-down by transformers. The A9 series and T21 series support many handles (C115, C210 & C245), while T26D can only use C210 and the T36D can only use C115.
