Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $37.53 | $36.77 | $35.62 | $34.09 | Contact US |
AK41118 Optical Fiber Coaxis Receiving Board
Description:
- Original AK418
- Coupling capacitor adopts Siemens capacitor, main filter electrolysis capcitor adopts ELNA brand, capacity 2200UF, gurantee strong and constant driving support
- PCB adopts 1.6mm two sides board, 2.0 oz copper thickness, full tin plated
- Taiwan imported fever level gold plated RCA
- AK4188 power supply part adopts LT1963EQ-3.3 stabilization chip
- Optical fiber, coaxis, USB input signal can be switched by decode swtich
- Coaxis input supports to 192KHz, optical fiber input support to 96KHz, USB daughter card can be chose freely
Parameters:
- Input voltage: AC9V(15W for each group)
- PCB size: mainboard: 100*70MM display board: 102*38MM
- Output : data signal I2S mode (it needs to be connected to decode board to make sound)

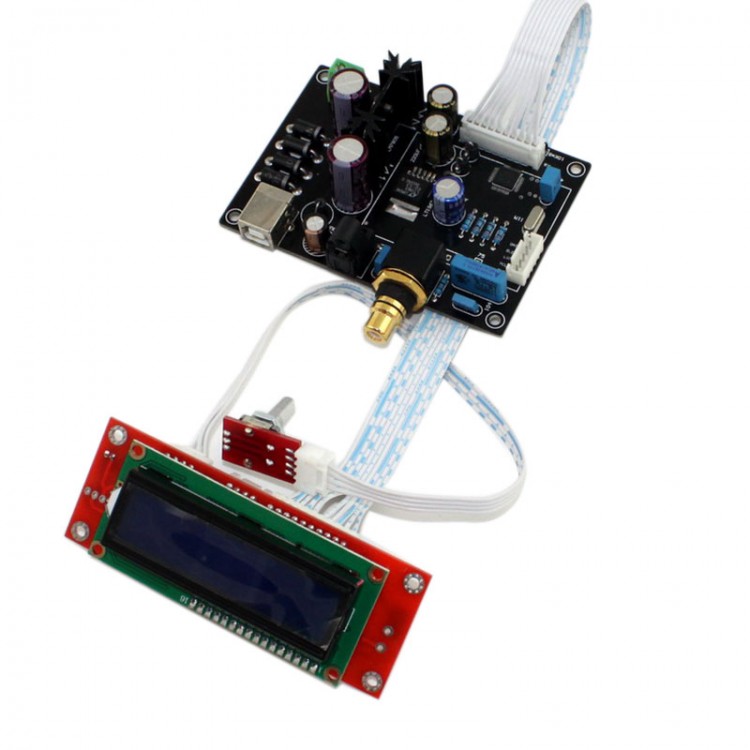

Note: the real product PCB board is blue, other part are the same as the picture
