AK4118 Digital Receiver DAC Board SPDIF to IIS + Remote Controller Kit For XMOS/Amanero USB Card

Availability: Out Of Stock

  • Price:$45.80
  • Price in reward points: 458 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.88 $43.97 $42.59 $40.76 Contact US
Quantity:

AK4118 Digital Receiver DAC Board SPDIF to IIS + Remote Controller Kit For XMOS/Amanero USB Card

Description:

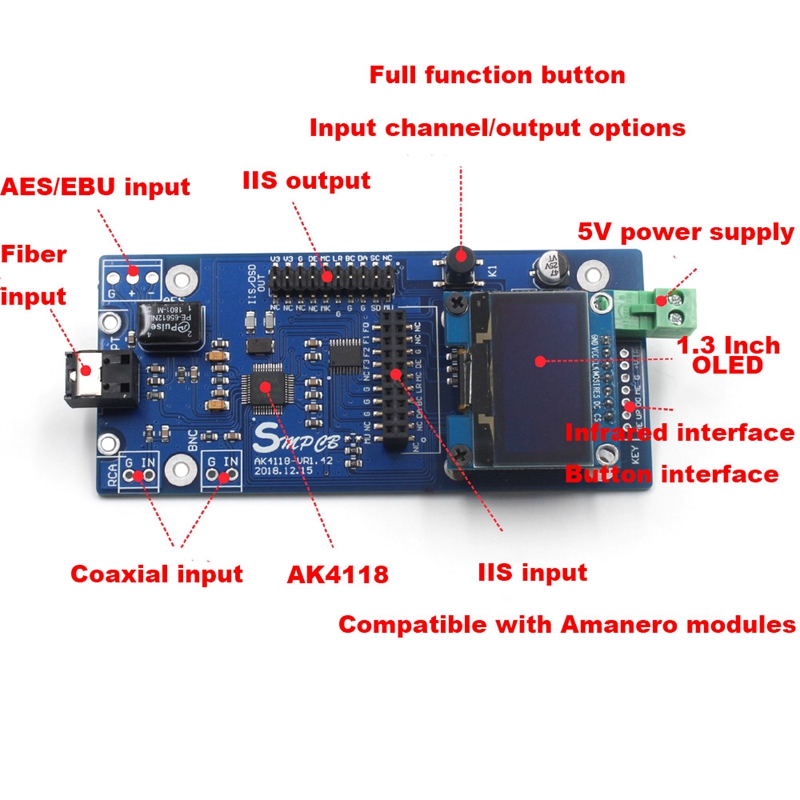

This product uses the latest audio dedicated mediation chip AK4118, supporting 24bit 192K data reception. As a coaxial signal receiver, the AK4118 has the lowest Jitter in the industry. It is fully optimized by the MCU software control, and its performance is much higher than that of the WM8805 DIR9001 CS8416. It inputs fiber coaxial SPDIF signal, with one-channel IIS/DSD input (applicable to our XMOS module / Italian USB), output in IIS/DSD format.

Features:

1.Supports five groups of input signals

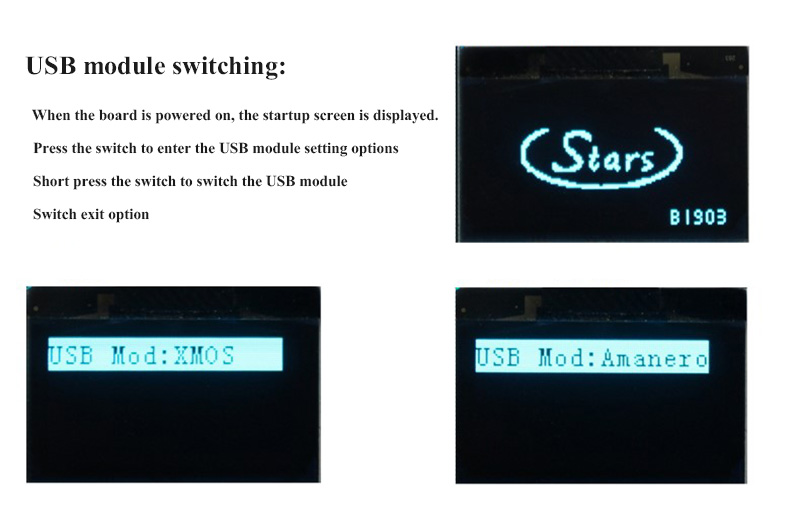

2.Supports for our XMOS module/Italian USB, enabling display of sampling frequency

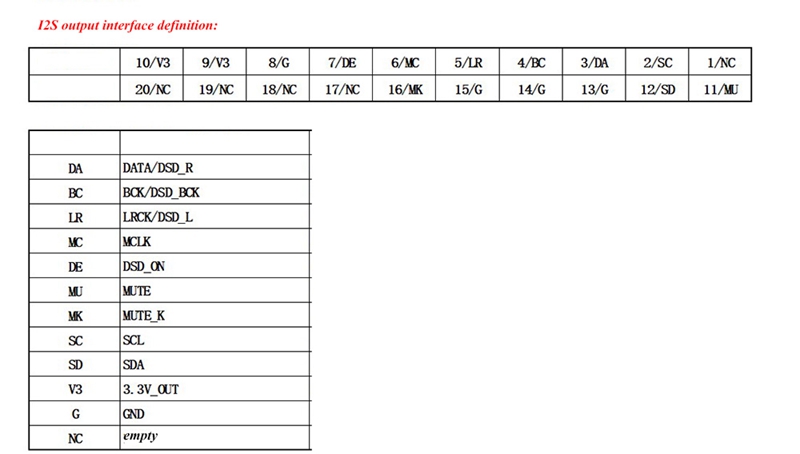

3.The double-row 20-pin output interface is compatible with an Italian USB output interface

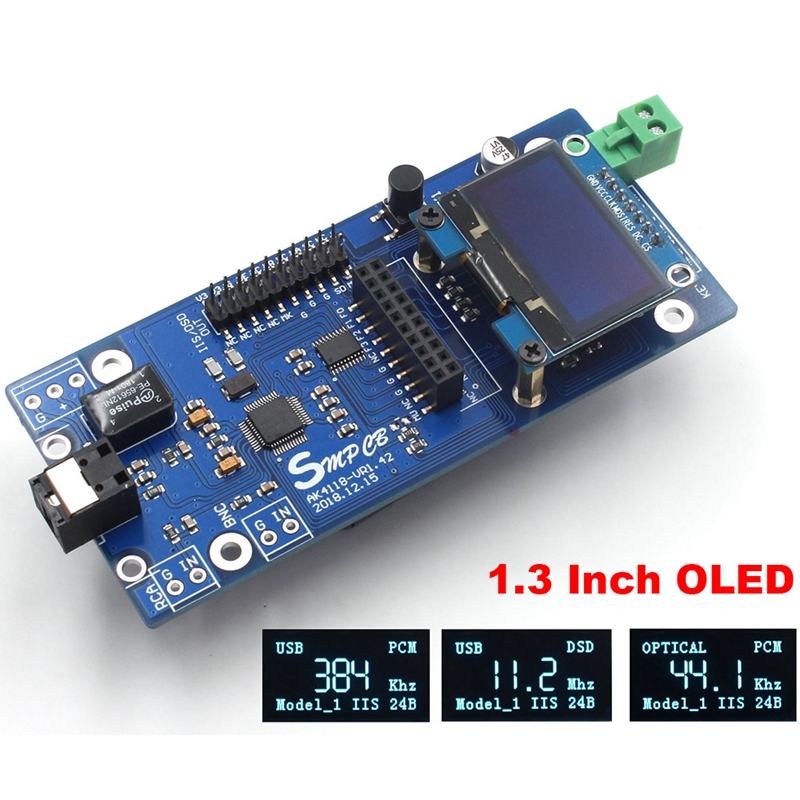

4.Using 1.3-inch OLED to display working status
5.The output interface has DSD_OE and MUTE output control, which is convenient to cooperate with a DAC board to realize PCM / DSD switching and mute control
6. All settings are automatically saved

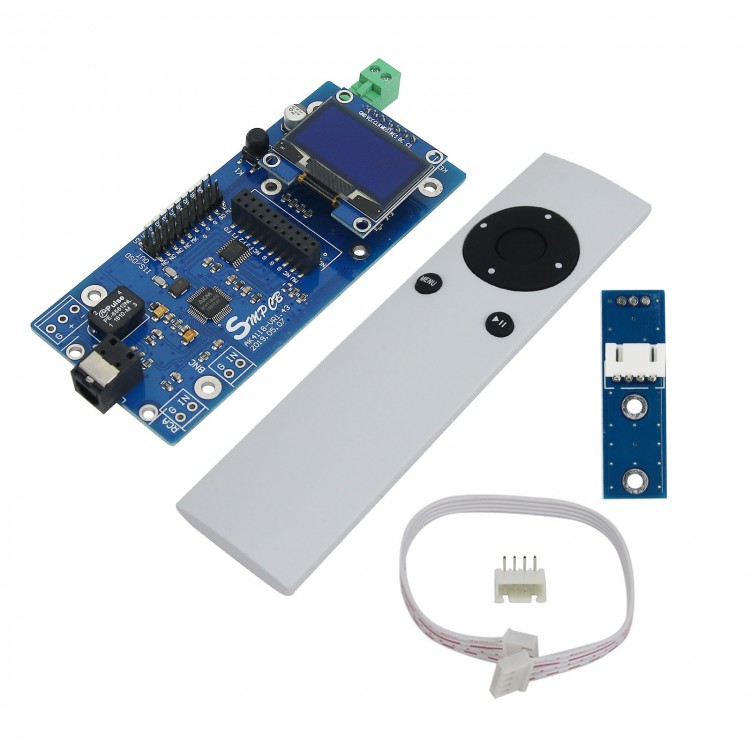

Package Included:
- 1 x AK4118 DAC Board
- 1 x Remote Control
- 1 x Switch Board with IR Receiver
- 1 x 2.54_4P Cable About 20cm
- 1 x 2.54_4P Pin Socket

Note:
- Hands-on ability and basic knowledge are highly recommended.
- Schematic diagram, component list and soft control code are not provided.
- Soldering and assembling are needed.

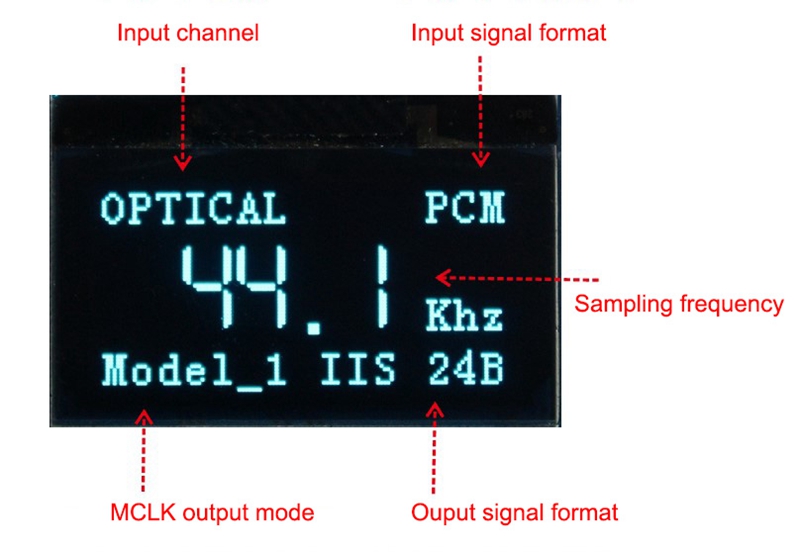

OLED Display & Functions:

1.Input channel: Coax Bnc,coax, RCA, USB, OPTICAL, Aes/ebu
2.Input signal format: PCM, DSD (Real-time display based on input signal)

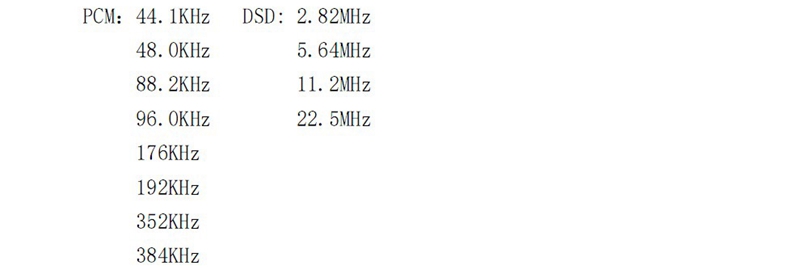

3. Sampling frequency of the input signal(Real-time display based on input signal)

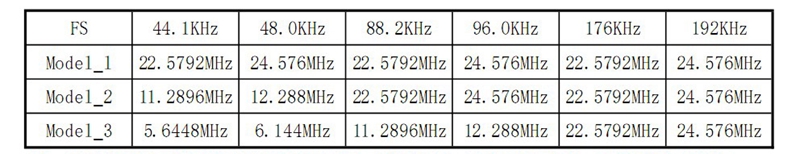

4.MCLK Signal Output Mode (Configurable):


NOTE: This feature is limited COAX BNC, COAX RCA, OPTICAL, AES / EBU input, USB input invalid when the USB input, the board follows the USB module output signal MCLK

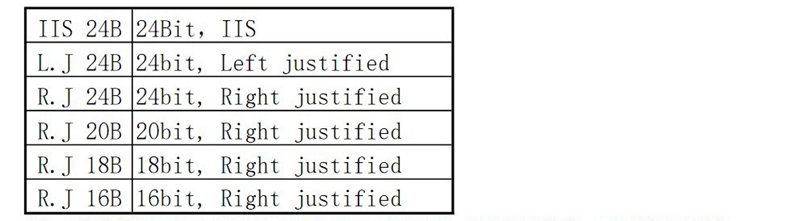

5.Output Signal Output Mode (Configurable):

NOTE: This feature is limited COAX BNC, COAX RCA, OPTICAL, AES / EBU input, USB input invalid when the USB input, the board follows the USB module output signal MCLK

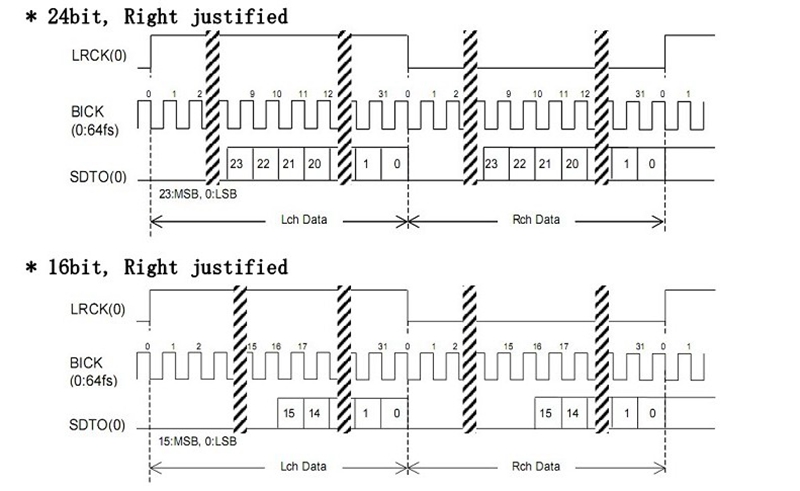

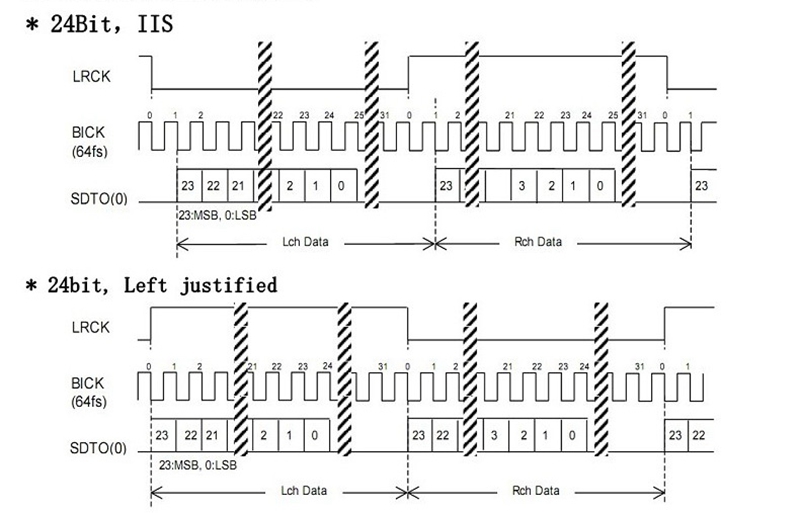

6.Timing Diagram for Different Output Signal Formats:

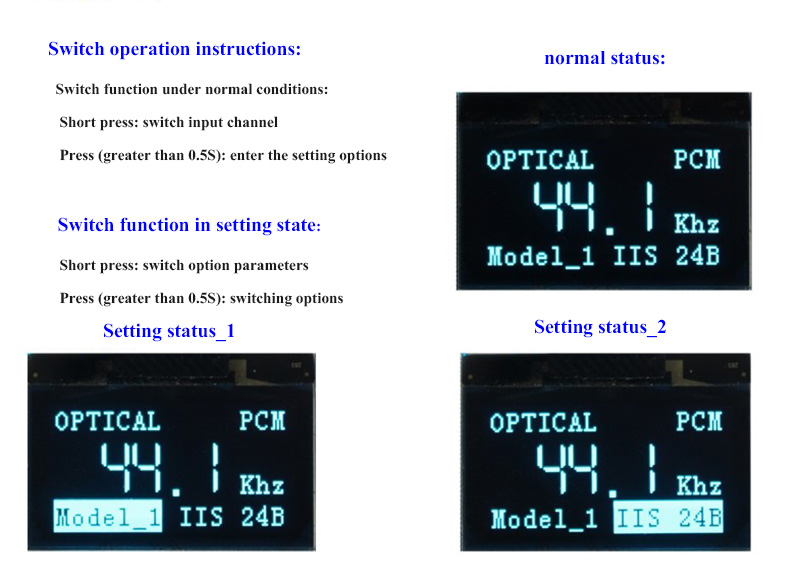

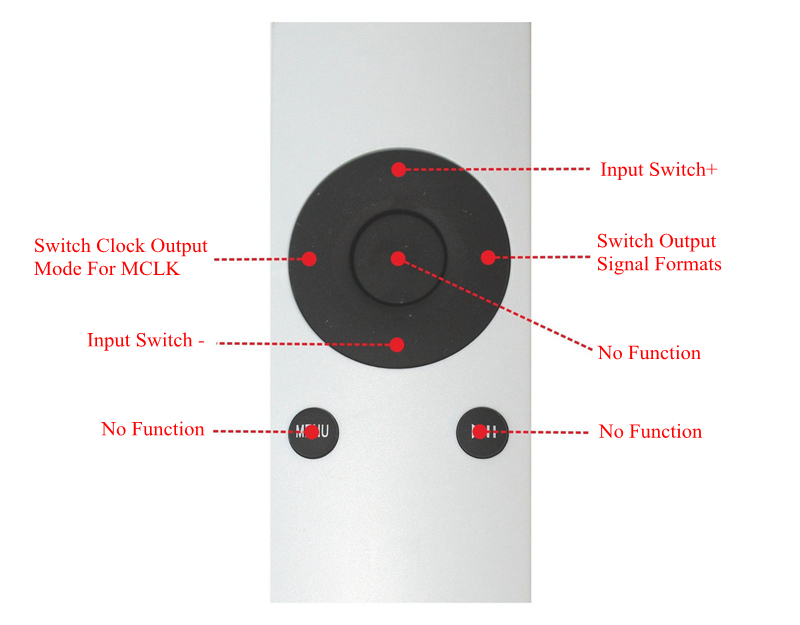

Operations of Remote Controller:


Input Parameters:
- COAX BNC, COAX RCA, OPTICAL, AES/EBU: 44.1K-192K 24BIT
- USB (IIS/DSD/Using XMOS module): 44.1K-384K 32BIT / DSD64, DSD128, DSD256
- Output parameters (using XMOS module): 44.1K-384K 32BIT/DSD64, DSD128, DSD256
- Supply Voltage: DC 5V

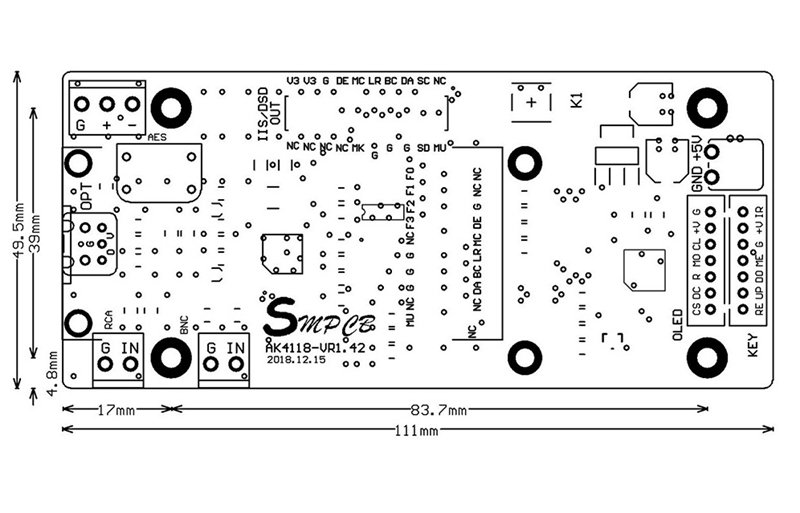

- Board Size: 111mm*49.5mm
