Alctron HE200 Hum Eliminator Ground Loop Isolator Noise Canceller Supports XLR and 6.35mm Connection

Alctron HE200 Hum Eliminator Ground Loop Isolator Noise Canceller Supports XLR and 6.35mm Connection

Features:
HE200 Audio Isolator
* Efficient noise reduction and isolation
* Effectively eliminates electrical hum and background noise
* 2-in-1 Input: Supports both XLR and 6.35mm connection
* High-quality transformer: Professionally removes low-level electrical noise
* Aluminum alloy housing: Durable and rugged

Say Goodbye to Ground Loop Noise Issues
* Equipped with a GND/LIFT switch to toggle between shared-ground and isolated modes, this device effectively filters out electrical noise caused by ground loop interference. It eliminates harsh sound artifacts and restores clean, pure audio.
* Ground Switch (LIFT/GND): Reduces noise caused by grounding issues.

High-Performance Signal Conversion — Preserve the True Character of Music
* It uses advanced transformer coupling technology to convert unbalanced line-level signals into balanced outputs. It also features a wide frequency response, handles high signal levels with ease, and effectively blocks interference like electrical hum — ensuring stable, delay-free signal transmission.

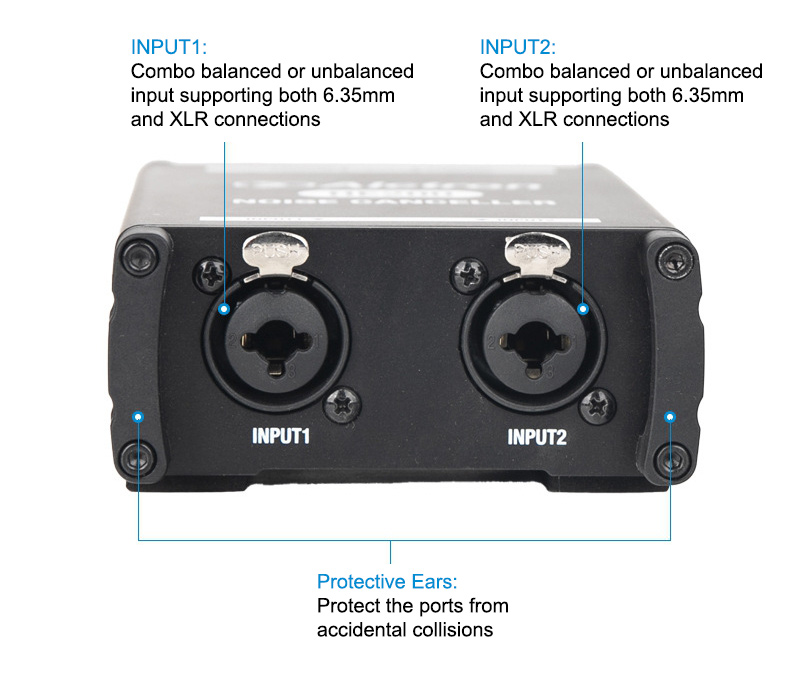

Dual-Function Input Port — More Flexible Connectivity
* The input port supports both XLR and 6.35mm connections, offering greater compatibility and freedom in setup.

Scratch-Resistant and Durable
* The enclosure is made of high-quality aluminum alloy, providing excellent durability and impact resistance. The base is equipped with a premium EVA cushion for shock absorption. The surface features an anti-oxidation coating for enhanced resistance to rust and scratches.

Protective Ears
* These shock-resistant protrusions are designed to protect the device from accidental impacts or physical damage.

Metal Housing
* The shell effectively shields against static electricity and reduces external interference, ensuring safe signal transmission and improved audio quality.

Applicable to Multiple Scenarios
* It resolves electrical hum caused by venue power usage, cabling, and interference, making it suitable for a wide range of applications.
* Daily Use: Restores natural sound
* Concerts and Large Events: Restores natural sound
* Conference Use: Clearer vocals

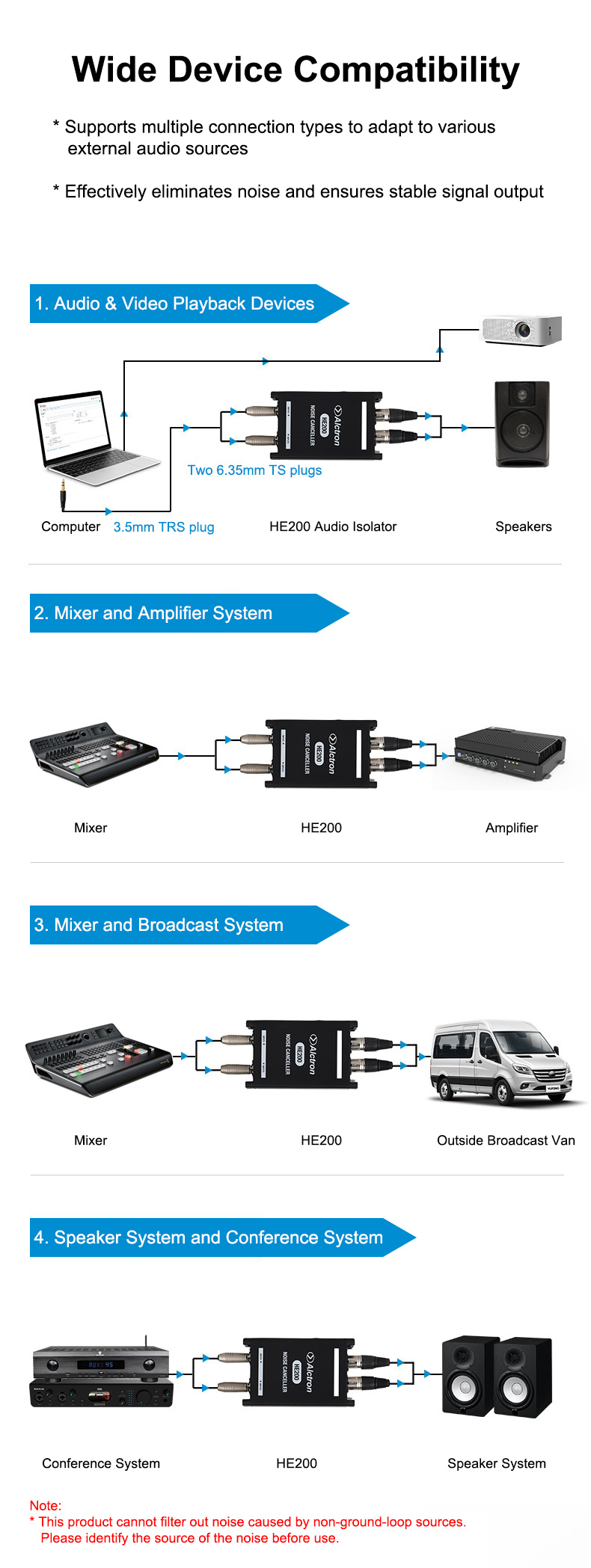

Wide Device Compatibility
* It supports multiple connection types to adapt to various external audio sources. It effectively eliminates noise and ensures stable signal output.

Specifications:
* Frequency Response: 20Hz–20kHz
* Distortion: ≤0.005% at 1kHz
* Crosstalk: ≥-97dB
* Output Impedance: 8.7kΩ
* Net Weight: 398g
* Product Dimensions: 145mm × 89mm × 36mm

Packing List:
* 1 × HE200
* 1 × User Manual
* 1 × Warranty Card
* 1 × Certificate of Conformity

Packaging Details:
* Weight: 1kg

Note:
* This product cannot filter out noise caused by non-ground-loop sources. Please identify the source of the noise before use.

FAQ:
Q: What type of noise can this device eliminate?
A: It eliminates humming noise caused by ground loops when the audio source and devices like mixers or home audio systems share the same power supply, resulting in a clearer sound output.

Q: What is ground isolation?
A: Ground isolation is a technique that connects the ground terminals of multiple devices to a single grounding point. This reduces high-frequency noise (such as ground loop noise) on the ground line and improves overall system performance.

Q: Can it eliminate noise that's not caused by shared grounding and power?
A: This product can only eliminate noise and electrical hum caused by shared ground and power sources. It cannot eliminate noise caused by other factors, so users must first identify the source of the noise.

Q: How can I tell if the noise is caused by a ground loop?
A: Methods include:
1. Computer, amplifier, speaker, CD player: Connect passive headphones directly to the computer and check for noise. Then connect the computer to the amplifier and speakers to test again. If neither test alone produces noise, but noise occurs only when all are connected together, the problem is likely due to ground loop interference.
2. If you hear electrical hum between a mixer and an amplifier, you can install this product between them to eliminate it.
3. If connecting a laptop to a projector and amplifier produces noise, try using the laptop on battery or with a power adapter. If disconnecting the amplifier or the projector makes the noise disappear, a ground loop isolator between the laptop's headphone jack and the amplifier may resolve the issue.
4. If you connect a battery-powered phone or MP3 player (not connected to any power source) to a car's central control AUX input using an audio cable and there is no noise while playing music, then the previous noise was likely caused by a ground loop.
