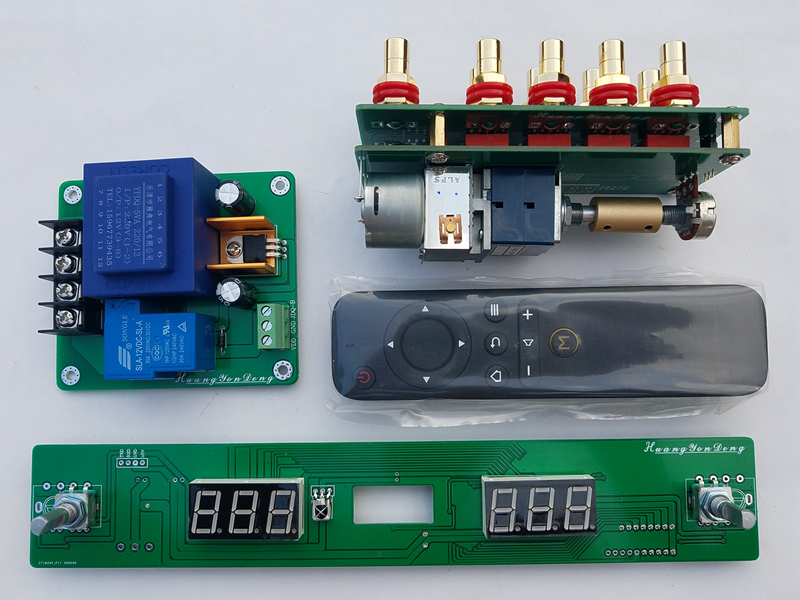

ALPS 27 Electric Motor Potentiometer Remote Volume Control Board Preamp Board With RCA Terminals
Optional Versions:
- Without RCA Terminal.
- With RCA Terminals. 4 sets of RCA input selection and one set of output are available.
Description:
The volume control board of ALPS 27 electric motor potentiometer adopts 100 levels (type A potentiometer has resistance values of 10K,50K and 100K). It is controlled by the ALPS 27 electric motor potentiometer.
Features:
- Remote control volume control board with remote switch function, no need for additional components control.
- The remote-control volume control board boasts power-off memory, that is, it can return to the state before the last shutdown every time it is turned on.

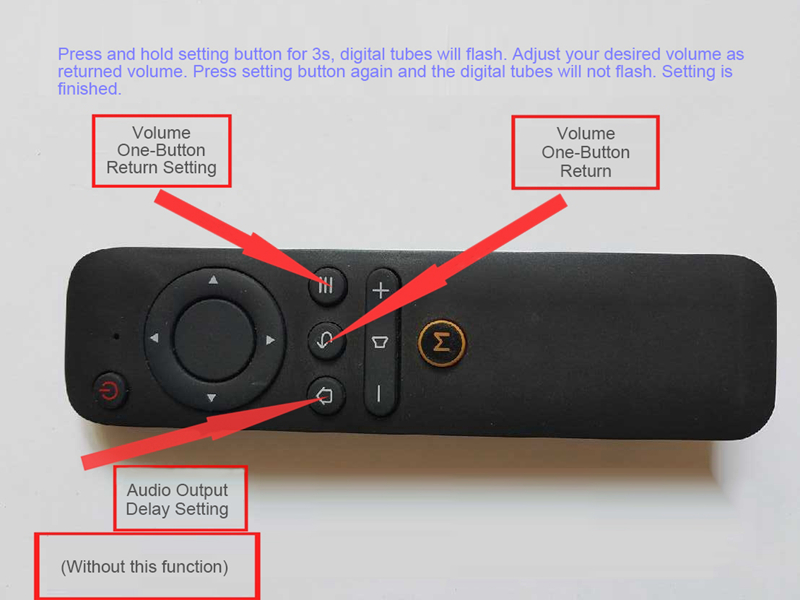

- The control panel also enables volume one-button return. Users can set returned volume at will, that is, no matter the current volume is set at that position, just press volume one-button return key on the remote control to return to the volume set by yourselves. (Press setting key on the remote control. When the volume display flashes, press the volume key to set desired volume, and then press the setting key to save.)
- Encoder function: Left Encoder - Pressing it when functions as a power switch. Turn it clockwise/counterclockwise to select inputs. Right Encoder – Pressing it to make it mute. Turn it clockwise/counterclockwise to adjust volume.
- Encoder installation distance 220mm and 240mm, suitable for the installation of preamp shell based on that for Goldmund.

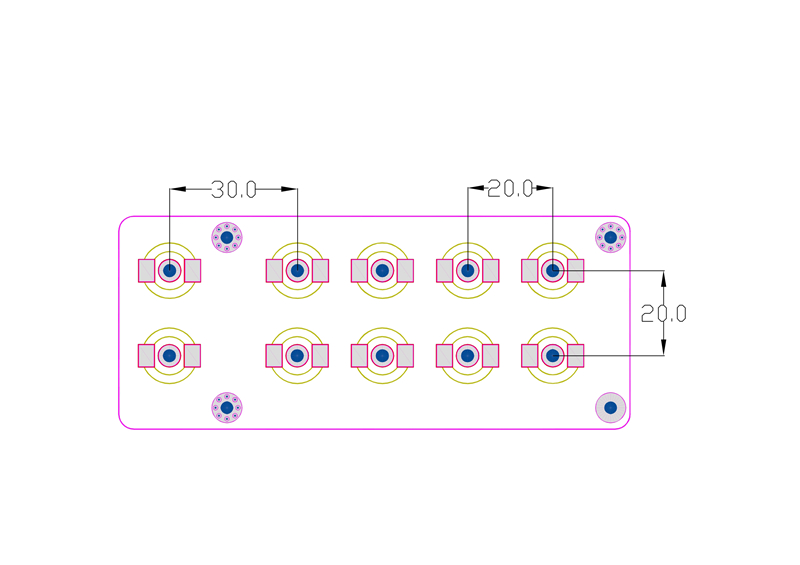

- RCA installation size: The distance between input RCA is 20mm*20mm, distance between the 4th RCA and audio output RCA is 30mm.
Package Included:
- 1 x Set of Volume Control Board
