ALTERA FPGA Developing Board Studying NIOS EP4CE6 Chip SPI FLASH AX Expansion for Students

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.86
  • Price in reward points: 489 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.88 $46.91 $45.44 $43.49 Contact US
Quantity:
Buy it now Add cart

You might like

Altera CycloneII EP2C8Q208 NIOS II SOPC FPGA Main Board

Altera CycloneII EP2C8Q208 NIOS II SOPC FPGA Main Board

$78.77

(0)
ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

$166.69

(0)
EZLOGIC FPGA Development Board EP4CE15F23 Learning Board 3-way PMOD Interface Support TF Card

EZLOGIC FPGA Development Board EP4CE15F23 Learning Board 3-way PMOD Interface Support TF Card

$62.15

(0)
Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

$173.48

(0)
SF-EP1C FPGA Develop Board Learning Board Cyclone altera

SF-EP1C FPGA Develop Board Learning Board Cyclone altera

$41.94

(0)
SF-EP1C FPGA Develop Board Learning Board Cyclone altera

SF-EP1C FPGA Develop Board Learning Board Cyclone altera

$33.79

(0)
FPGA Development Board EP2C8 ALTERA FPGA/NIOS II EP2C8Q208C8 w/ USB Blaster

FPGA Development Board EP2C8 ALTERA FPGA/NIOS II EP2C8Q208C8 w/ USB Blaster

$159.90

(0)
Altera CycloneIV FPGA Learning Board EP4CE6E22C8N 32Mbit SPI FLASH for DIY

Altera CycloneIV FPGA Learning Board EP4CE6E22C8N 32Mbit SPI FLASH for DIY

$36.13

(0)

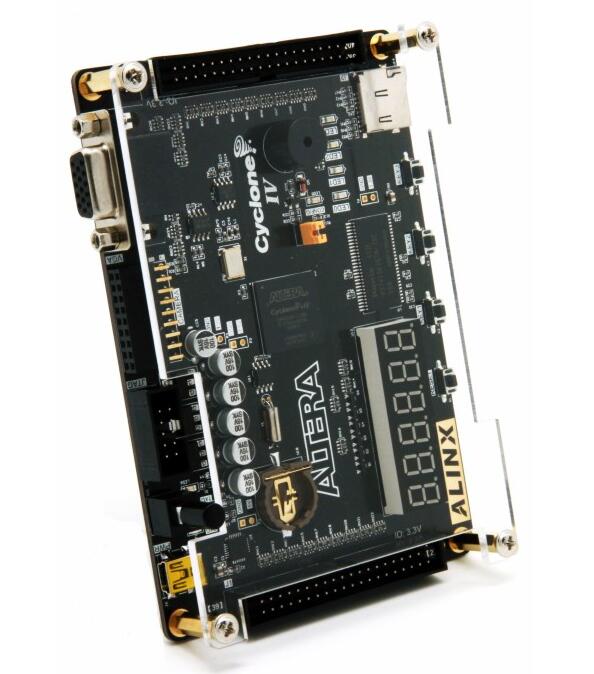

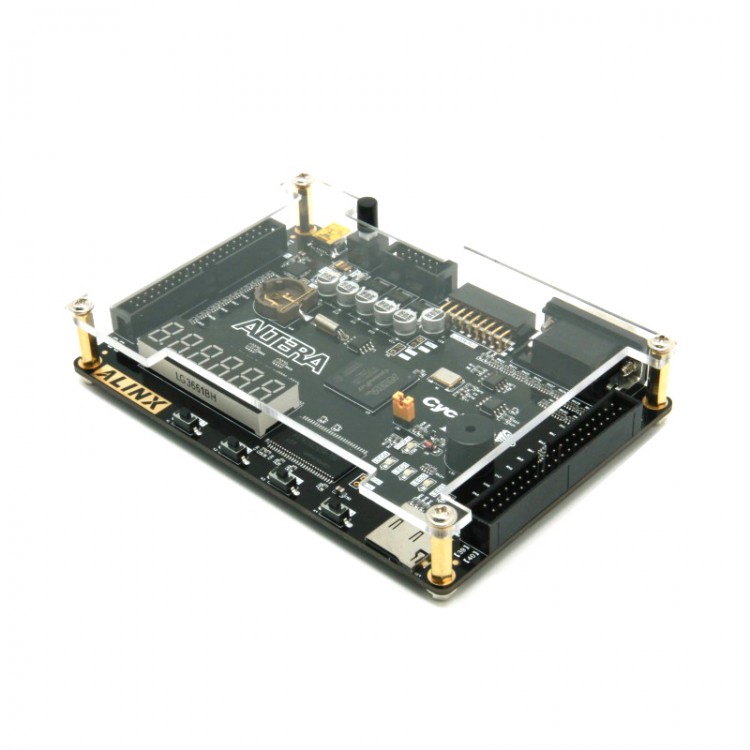

ALTERA FPGA Developing Board Studying NIOS EP4CE6 Chip SPI FLASH AX Expansion for Students

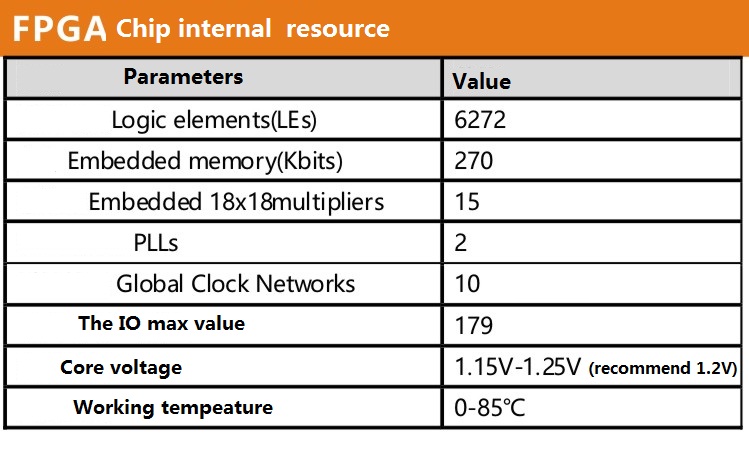

FPGA Chip internal Parameters:
- Logic elements (LEs) value:6272
- Embedded memory (Kbits):270
- Embedded 18x18 multipliers:15
- PLLs:2
- Global Clock Networks:10
- The IO max value:179
- Core voltage:1.15V-1.25V (recommend 1.2V)
- Working tempeature:0℃-85℃

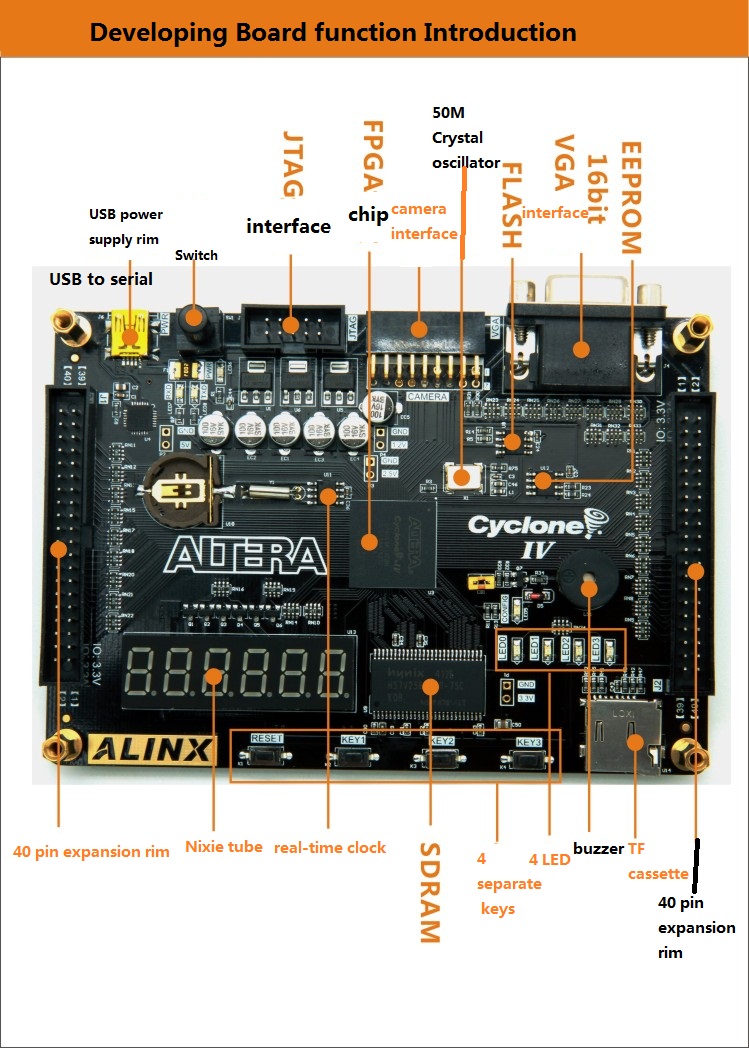

Main Parameters:
- USB interface power supply,can achieve USB to serial .
- 256M bit SDRAM,can be date memory
- 16M bit SPI FLASH,can used as FPGA configuration file and user date memory
- A camera interface
- 16 bit VGA interface,can display 65536 kinds of color as well as colorful image and other information.
- RTC real-time clock
- EEPROM 24 LC04
- Four red LED
- Four keys,one reset,three user keys
- Onboard 50M Active crystal,supply stable for developing board source
- 2 way 40 pin ALINX Standard AX Expansion port(2.54mm spacing)
- Reserved JTAG rim,can debuge and solidify FPGA
- 1 way Micro SD cassette,support SPI model
- One 6-figure Nixie tube,can show six-figure dynamic display

Package List:
- 1   x   ALTERA FPGA Developing Board
- 1   x  Mini USB wire
- 1   x  Transparent protective plate
