| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $57.62 | $56.45 | $54.68 | $52.33 | Contact US |
8055 8050 Video Converter Monitor Monochrome to LED Colorful LCD Converter Dedicated for FAGOR 8055/B-M 8050
$108.83
XCNet-PN Protocol Conversion Gateway for Siemens S7-1200/1500 to S7TCP MODBUS TCP Master Slave
$217.49
XCNet-FX5U Protocol Conversion Gateway Ethernet Communication Module for Mitsubishi MELSEC iQ-F
$116.44
24V and 220V Optional
Difference:
24V : need to connect external power supply (You need but USBACAB230 cable and Serial Port cable DVPCAB215)
220V: Built in power supp
ly
Description:
- High-speed input: 2 channel 100kHZ; 6 channel 10kHz
- Single phase input 8 points: AB phase input 4 groups
- High-speed comparison interrupt: 8 points
- Communication port 1*RS232, 2*RS485
-
8 expansion modules can be connected, support S-curve acceleration and
deceleration function, support inverter control commands
manual from https://www.xueplc.com/ams-es-plc.html
Model | AMS16ESR/T | AMS24ESR/T | AMS32ESR/T | AMS40ESR/T | AMS60ESR/T |
input | 8 | 16 | 16 | 24 | 36 |
output | 8 | 8 | 16 | 16 | 24 |
L | 105 | 126 | 145 | 165 | 225 |
L1 | 97 | 115 | 137 | 157 | 217 |
Power | 24VDC or 220VAC | ||||
Working specifications | When the power supply rises slowly to 95-100VAC, the PLC starts to act. When the power supply drops to 70VAC, the PLC stops. The power supply will continue to operate within 10MS of an instantaneous power failure. | ||||
Power fuse capacity | 2A/250VAC | ||||
Power consumption | 30VA | ||||
DC24V current output*1 | 500MA | ||||
Power protection | DC24V/220VAC output short circuit protection | ||||
Package list:

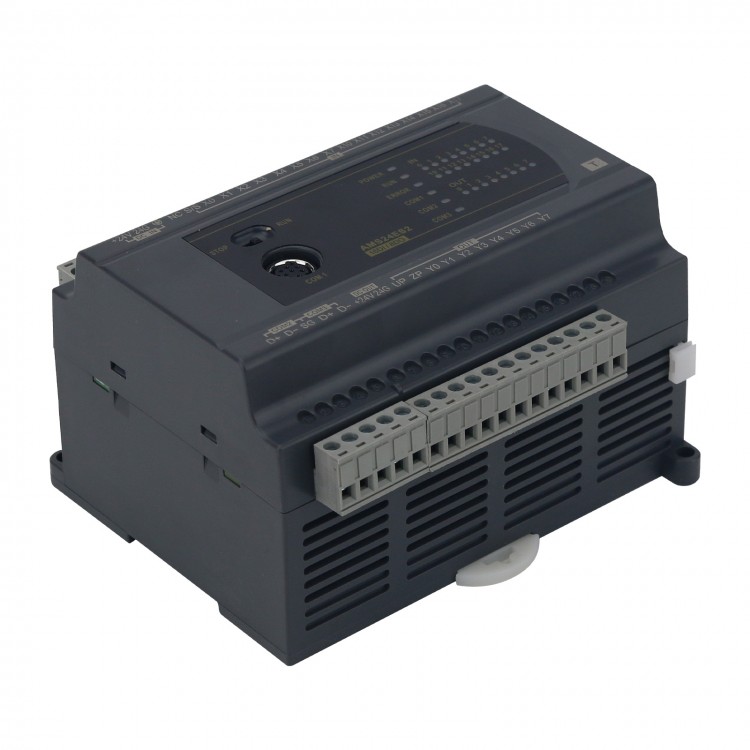

- 1 x AMS-24ES200T PLC module (24V or 220V，Please specify or choose in option box)
