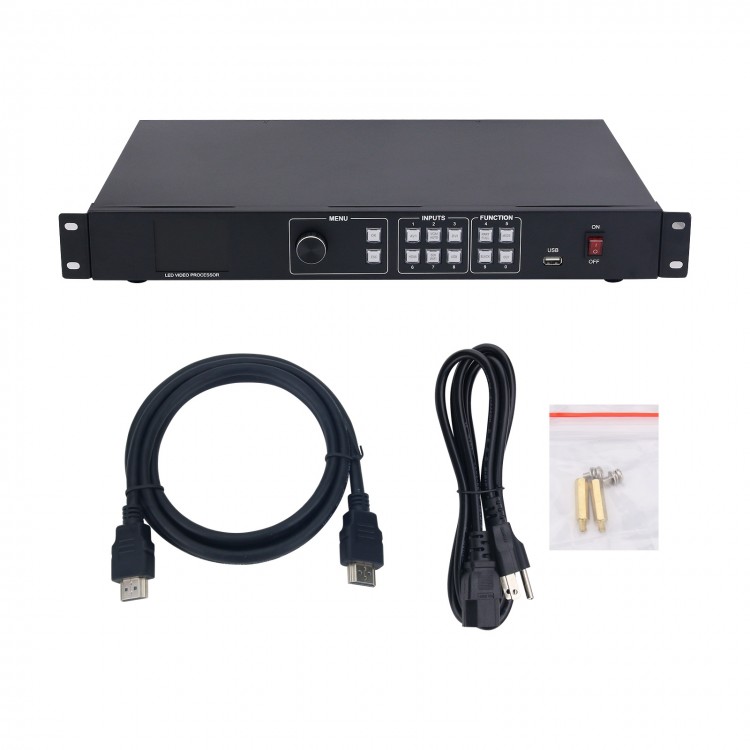

AMS-MVP300 Full Color LED Video Processor Supports Industrial Display Two LED Display Sending Cards
- Seamlessly switch any channel
- Signal detection function
- Maximum output resolution: 1920*1080 at 60Hz

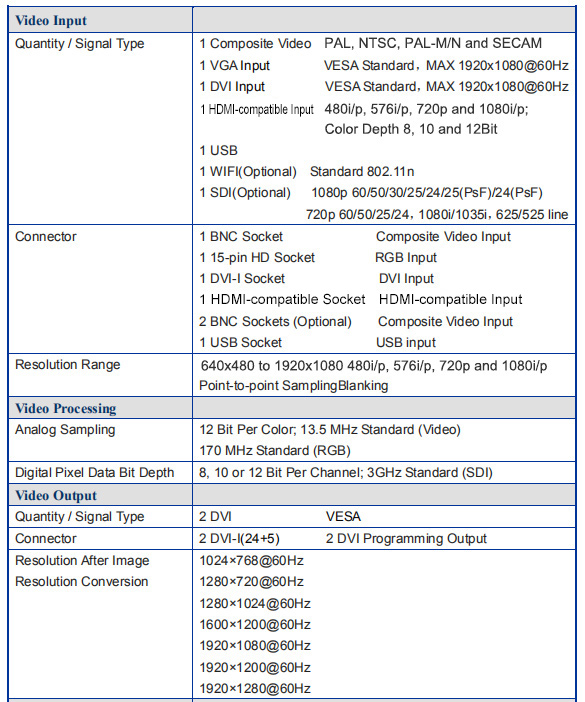

- 6-channel digital-analog video input: 1HDMI, 1DVI, 1VGA, 1AV and 1USB. If you need to add SDI port, WIFI control and remote control, please contact us or you can search
- 3-channel digital-analog video output: 2 DVI
- Quick knob adjustment settings
- Support audio output
- Support U disk playing
- Support SDI input and loop out
- Key lock function
- 10 sets of preset templates can be saved and called
- Support several brand cards such as for Linsn ts802d, Nova msd300, Colorlight S2, etc.
- Multiple Video Input: AMS-MVP300 uses 5 channels of video input, including 1 channel composite video AV (CVBS), 1 channel VGA, 1 channel DVI, 1 channel HDMI and 1 channel USB. Basically, the needs for civil and industrial use have been covered. Seamless switching of all video input.
- Video Output Interface: It has 2 DVI video output. The 2 videos programmed output to LED sending card or display.
- Seamless Switching Of Any Channel: The LED video processor can also seamlessly switch between any channels at a fast speed.
- Output Resolution: It has designed a number of practical output resolutions for users. The widest is 1920 points and the highest is 1080 points. Applicable to a variety of dot matrix
displays. Up to 10 output resolutions are available for user selection and can be adjusted
- Support Audio Video Sync Output: It has 1 channel audio output and audio and video
- One Key Black Or Freeze: It has BLACK features. After setting, press the BLACK button directly to achieve black screen or screen freeze.
- Key Lock: Turn on the key lock. In the process of use, it can effectively prevent accidental touch and provide favorable guarantee for the use process.
- Mode Saved And Recalled: It adopts 10 sets of user presets. Each set of user presets can store all user setting parameters, and it can realize parameter backup and on-site
- Unique Brightness Adjustment Technology: It has a built-in unique brightness
adjustment function, which solves the problem of loss of layering after reducing the brightness, making the color reproduction more realistic.
- Real-time Storage Technology: The ready-to-use technology solves the user's cumbersome
setup and manual storage process, that is, the user does not need to perform manual save
operation after adjusting or adjusting parameters. It can automatically store the user
parameters in the EEPROM. Even after the power is turned off, the previous parameters remain in the device.
- ACC ACM Image Filtering: It uses ACC and ACM image filtering engines. When processing each color, the nonlinear filtering effect minimizes image loss and restores color realism.
- Resolution after scaling conversion: 1024x768 at 60Hz; 1280x720 at 60Hz; 1280x1024 at 60Hz; 1600x1200 at 60Hz; 1920x1080 at 60Hz
- Power supply: built-in 100~240V AC 50~60Hz (Taiwan Meanwell Power supply)
- Size: 485 x 320 x 68mm/19.1 x 12.6 x 2.7" (LxWxH)
- Product weight: 3.0kg/6.6lb
- All rated voltages±10% on average
- 1 x AMS-MVP300
