Anywells AWC708C LITE Laser Controller System for CO2 CNC Laser Cutting Engraving
AWC708CLITE LCD Display Operation Manuals: Click here
AWC708CPLUS LCD Display Operation Manuals: Click here
LaserCAD Manual: Click here
Notice: The panel is English. The system language can be customizable as English and Portuguese, so the delivery time will be in 3-5 days.
Description:
- AWC708C LITE Double Heads Laser controller system AWC708C LITE, AWC708LITE laser motion control system.
- It is the latest research and development of a new generation of motion controller. The controller adopts the new CPU, faster and more stable.
- AWC708C LITE is an independent DSP laser controller used for the laser cutting and engraving systems.
- AWC708 Controller board with Aluminum case.
Technical Specifications:
- Power Model AWC 708C lite
- Power supply DC 24V,3A
- Input 6 roads
- Output 6 roads
- Control axes X YZU axis
- Laser power 0-100%,0.01% continuous adjustment
- Accuracy ±0.001mm
- Laser Source Type : Various AC/DC Excitation and RF co2 laser & Solid medium
- Application laser cutting machine, laser engraving machine, etc.
- Operating temperature -10~40 degree C
- Relative humidity ≤90%
- Certificates CE, ROHS
- Support format DST. PLT. BMP. DXF. DWG. AI
- Support software Laser CAD (Plugin support CORELDRAW, AUTOCAD, Adobe 111- ustrator)
Operating System Environment Requirement:
- Support Windows 2000/Windows XP/Windows 7/Windows 8, etc. Support 64bit (driver installed separately)
- In/Out Interface port: USB or networking
- Real time power control: PWM and analog
- Support Dump drive (no PC required) for up to 200 files
- Cad system support: CorelDraw (v12~X6), Illustrator, and AutoCAD (2004 ~ 2008) direct output with VB plugin
- Celeron 2.1G above
- Suggest using 1G above memory.
- Chapter 2 Installation
- 2.1 Installation Steps
- The difference AWC708C, AWC608, AWC608C as below
- AWC708C is upgrading from AWC608 and AWC608C, same wire connection and better.
- AWC708C can show the photos from display directly, AWC608 can`t.
AWC708C LITE have some improvements as below
- The controller adopts the new CPU, faster and more stable.
- Equipped with a higher resolution image display, display intuitive, new dynamic track display, anchor point returns the humanized function such as pattern, make the machine in operation at the same time can be seamlessly switch machine, effectively improve the control precision machine, and ensure the safety of the machine, at the same time, retain the AWC608 series classic way of human-computer interface.
Software Versions
It includes three versions: General Version (LaserCAD), CorelDraw based version, AutoCAD based version.

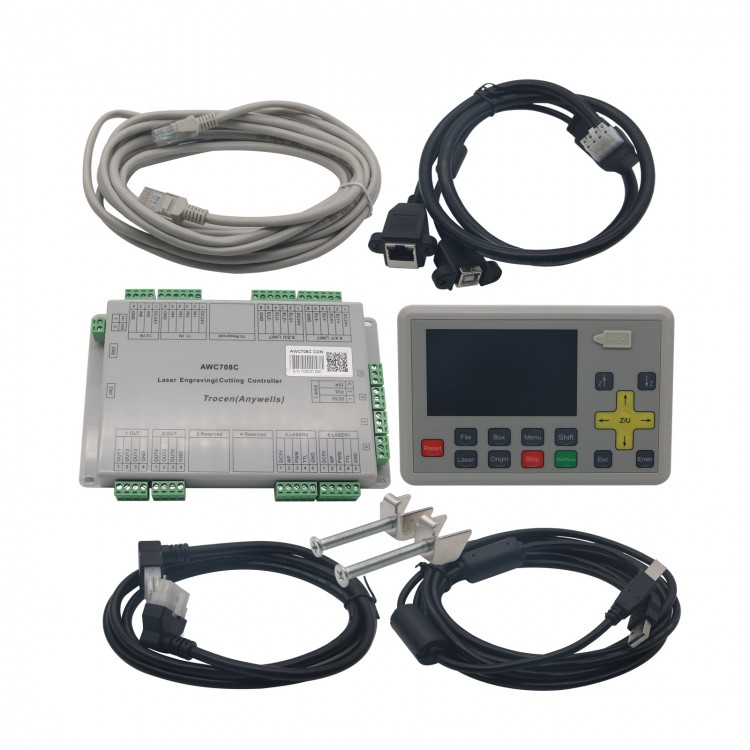

Packing list:
- Anywells AWC708C LITE Control Panel (With LCD) * 1pc
- Anywells AWC708C LITE Control Card (Main Board) * 1pc
- USB Cable * 1pc
- Network Cable Network Cable * 1pc
- 8P Extended Lines * 1pc
- 12P Panel Connection Cable * 2pcs
- Screw * 2pcs
Connection - AWC708C is upgrading from AWC608 and AWC608C, same wire connection and better
Main Features
- The true color screen, display content more abundant;
- Adopt new 32-bit high speed CPU; make the system run faster and more stable;
- The system comes with the clock display, encryption function more perfect and humanity;
- Support U disk offline files preview function, real-time display laser trajectory;
- Can be completely separated from the PC Settings equipment parameters;
- The whole light coupling is completely isolated outside electromagnetic interference, anti-static resistance is strong, make the system work more stable and reliable;
- Support for perfect power carved function;
- Support high speed interface, U disk read and write files more stable and can identify various brand of U disk;
- Support network communication and USB communication, transmission speed faster, more stable;
- Support the dual laser control, adjustable power alone, and can control various laser; Support double shift each cutting.
Applications
- Old Laser Control System Upgrade:
Refresh your co2 laser cutter /co2 laser engraver from slow and old controller.
Match all settings in your co2 laser machine. Can 100% perfect work with all Co2 laser cutting system from China.
- Co2 Laser Cutter Dsp Control System Maintenance and Replacement:
Broken old controller away and test a new high speed perfect cutting and engraving effects.
Don't need to wait a long term repair. Take a little time to restart your program.
- DIY Laser CNC Cutter:Laser Cutter Controller, especially for homemade laser cutter, hobby diy laser cutter and Portable Laser Cutter. Cutting effects will never disappoint you.
- DIY Laser cnc engraver:
Co2 Laser Engraver Controller, especially for household laser engraver, self-made diy laser engraver and Mini Laser Engraver. High speed is the best point for engraving.
Smaller hobby laser engraver with this controller can work in a 400-600 speed.
