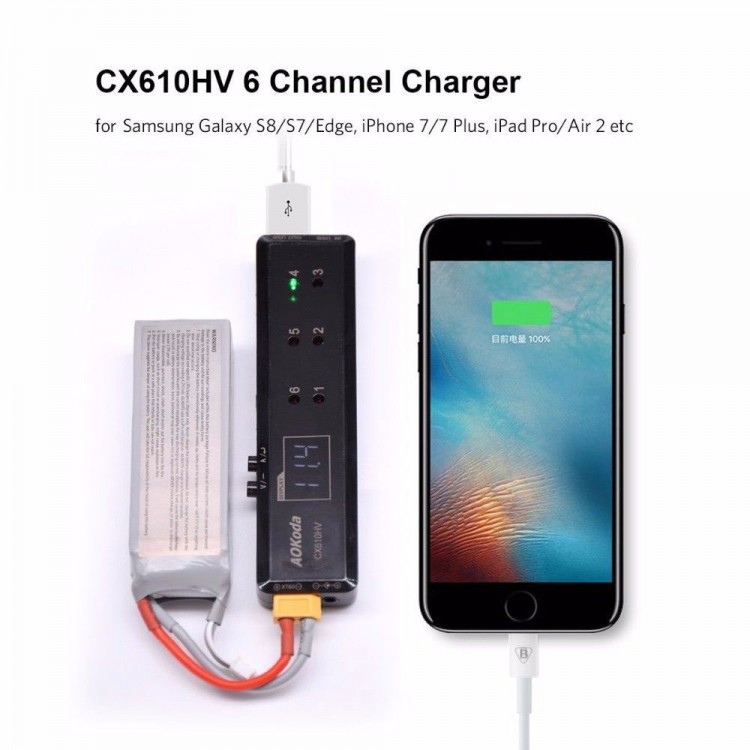

AOKoda CX610HV 1S Lipo Battery Charger XT60 Plug for FPV Tiny Whoop Quad DIY

AOKoda CX610HV 1S Lipo Battery Charger XT60 Plug for FPV Tiny Whoop Quad DIY

Description
- This CX610HV 1S HV LiPo Battery Charger is the next best thing in the world of charging. This thing can be powered by your (micro USB) cell phone charger.No need to wait to charge multiple batteries at a time, just plug a battery in and charging begins.

Feature
- Simple operation, pluy and plag.
- Internal chip intelligent temperature test, to ensure the safety of charging.
- Six channels independent charging output, can charge six batteries simultaneously.
- DC 3.5mm/Batteries XT60/Micro usb three input methods
- LED Digital tube shows input voltage, Six channels battery voltage, input low voltage protection value and setting current value.
- USB 5V 2.4A/2.0A/1.0A Smart fast charging interface to support for apple, for Android mobile fast charge protocol.

 CX605: 0.1A~0.5A Red LED digital display
CX610: 0.1A~1A White LED digital display
CX610HV: 4.35V Upgrade Version can not charge 3.7V lipo battery.



Features:
1. Simple operation, plug and play.
2. Internal chip intelligent temperature test, to ensure the safety of charging.
3. Six channels independent charging output, can charge six batteries simultaneously.
4. DC 3.5mm jack / battery dedicated XT60 interface / Micro USB, three input methods.
5. Charging current setting range 0.1A~1A CX610HV
6. LED digital tube shows input voltage, six channel battery voltage, input low voltage protection value and setting current value.
7. USB 5V 2.4A/2.0A/1.0A Smart fast charging interface to support apple, Android mobile fast charge protocol.

Description:
1. Round 3.5mm jack dc input range: 9V-26V 24W
2. XT60 battery specific interface voltage input range: 9V-26V  3~6S LiPo
3. Micro USB interface input voltage current range: 5V 1A/2A/2.4A
4. In the DC input mode, the setting range of the over discharge voltage: 9V~24V
5. XT60 battery interface, over voltage setting range: Smart settings and user manual tuning
6. Battery charging end voltage: 4.20V+-1%
7. Battery charging power: 4Wx6ch CX610; 2Wx6ch CX605
8. Battery charging current: (0.1-1.0A)x6ch CX610; (0.1-0.5A)x6ch CX605
9. Support battery type: LiPo
10. Support battery section count: 1Cell
11. Display mode: White LED digital display  CX610
12. battery connector: mCPX,MCX (MOLEX,JST  You need to use transit lines)
13. USB output interface: 5V 2.4A/2.0A/1.0AIntelligent fast charging interface (DC or XT60 input)
14. Product size: 142x34x17.5mm
15. Product weight: 60g

Package includes:
- 1 x AOKoda Portable 1S Lipo Battery Charger
- 6 x Charging Cables
