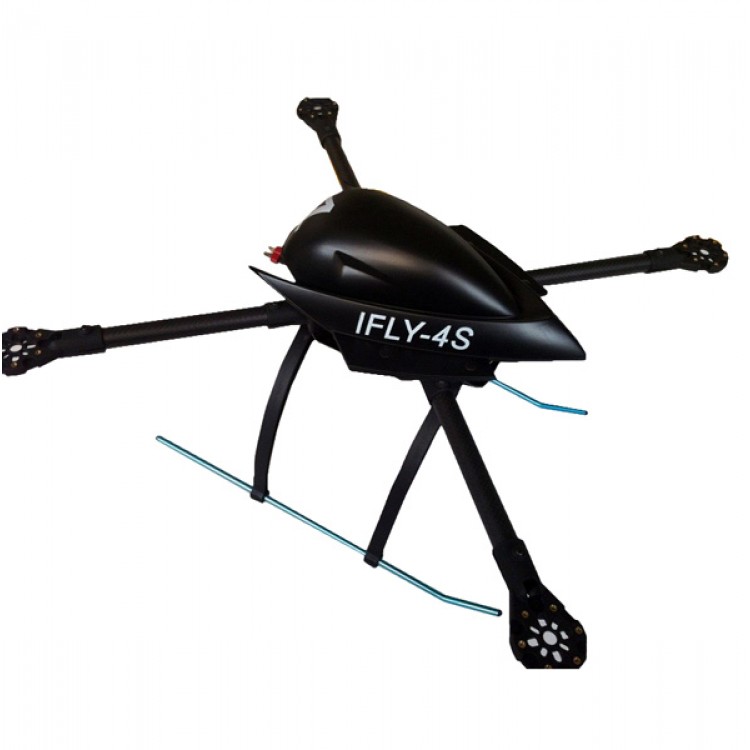

ARF RC Idea-Fly IFLY4S Foldable Quadcopter Carbon Fiber Aircraft Frame Kit

Availability: Out Of Stock
  • Regular Price: $162.89
    Instant Savings: -70.5(43.28%)

    Price:$92.39
  • Price in reward points: 1629 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $92.39 $92.39 $92.39 $92.39 Contact US
Quantity:

ARF RC Idea-Fly IFLY4S Foldable Quadcopter Carbon Fiber Aircraft Frame Kit

Pls note this listing only included Quadcopter frame only,the recommended Flight control,motor ESC and propellers are not included
Description:
- IFLY-4s has high strength carbon fiber cantilever collapsible design.
- equipped with four low-noise brushless motor.
- 4 able to better indicate status highlight LED.
- equipped with a full set of high-performance flight control system (ESC flight control power connection plate) and the installation and    commissioning.
- Weight: 810 g (receiver and battery not included).
- Maximum load capacity: 700g (receiver and battery included).
- Maximum take-off weight: 1550g. Do not overload affect flight status is recommended.
- two-axle distance: 550MM
- Optional connection is a biaxial PTZ.
- Easy to install, only need to calibrate the remote control to start flying.
- foldable, easy to carry.
- more high tripod design.
- based IFLYC4E, comes with the camera auto-balance function output, without having to buy the camera balanced instrument.
- Height control system
- Improved high-performance, regardless of how changes in the load always been able to pinpoint the height.
- automatic take-off and landing, allowing runaway automatically slow landing effectively avoid smashing machine events (height mode).
- better wind resistance, three wind is still able to easily fly.
- minimum 4-channel remote control can flight (not control mode and PTZ)
- comes with 4 bright LED light and buzzer, to provide real-time flight status indication.
- internal built-in voltage detection processing module can detect the battery voltage and other information, real-time monitoring of battery usage.
- with automatic compensation the bi axial (roll, pitch) PTZ control output.

Introduction of IFLYC4E Flight Controller: IFLYC4E is a flight control system specially designed for IFLY4S, which is all-in-one module includes controller, gyroscope, accelerometer and barometer, etc. It supports normal transmitter, offers 6-way PWM ESC output, has online upgrade support and expended GPS, extremely easy to fly even without any adjustment.

Function:
- Manual Mode: aircraft offers normal auto-stabalization.
- Auto-Ballance: aircraft keeps stable under auto-stabalization mode.
- Height Auto-hold: aircraft provides altitude hold and auto take off and land.
- Fail-safe mode.
- 7-way transmitter input.
- 2-way gimbal output.
- 6-way ESC output.
- one LED output.
- one buzzer output
- Built-in power mode.

Propeller:
- Material: Plastic
- Propeller size: 10inch * 2
- Anti-rotating Propeller: 10inch * 2

Motor:
- Bushless Motor: (IFly2212)11.1v
- Drive Configuration: direct drive for each axis
- Governor: 15A digital governor
- Diameter: 28.5mm
- Weight: 42g (without plug)
- Shaft distance: 3mm
- Fixed hole pisition: 16mm*19mm
- Voltage: 11.1v/14.8v 850kv

- Camera Mount: (Optional)
- Camera Mount with vibration isolation
- Material: carbon fibe
- Number of axes: single axis

Workding Enviroment:
- Ambient Humidity: <%80
- Ambient temperature: 0-60 (Celsius degrees )
- Ambient wind speed: <4m/s

IFLY-10A PWM High-speed ESC:
- Output Current: continuous current 10A, short-time current 15A (less than 10 sec.)
- Power Input: 3s li-po battery input.
- Port Type: highspeed I2C data port(1000khz-400khz).
- Safe Rotation Protection: when the motor is suddenly stopped or locked during working, the motor output will automatically stop and will not restart until several seconds waiting, which is effectively protect the ESC and motor from burning.
- No driving Noise: the highspeed output driver can protect you from those boring noise.

IF2212 Brushless Motor:
- This motor is only 45g, specially designed for IFLY-4 multi-rotor aircraft. IDEA-FLY motor adopts latest magnet material with higher effeciency and payload voltage. Besides, its unique all-in-oneblade holder structure can effectively decrease distance between propeller and motor, avoid resonance cased by motor working and speed changing.

Package Includes:
- 1 x IFLY-4S KIT
