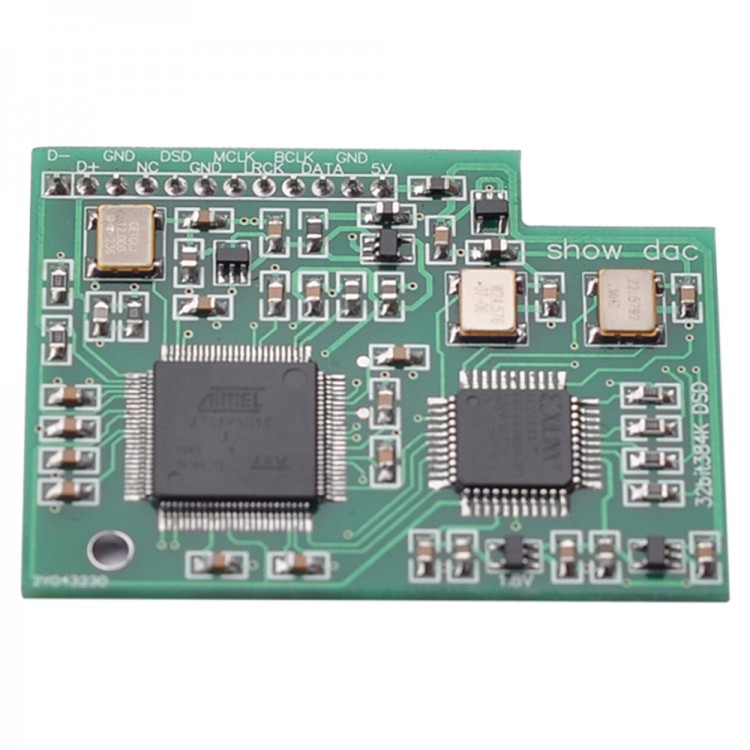

ARM+CPLD Digital Sound Card Interface Module Support 384K DSD for Audio DIY

ARM+CPLD Digital Sound Card Interface Module Support 384K DSD for Audio DIY

Features:
- Same chip programme with the Italy Amanero
- Power supply is improved and change ARM clock signal into active crystal
- Audio optimal design, high performance
- 5 channels 9U Vrms independent power supply
- Low jitter, low noise active clock to improve the accuracy of sound

Specification:
- Supported Sample Rates:44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
- Output Format: I2S 32bit or DSD64,DSD128 - On Windows DSD256,DSD512 too
- Oscillators: 2 Low Phase Noise TCXO
- Dimension: 30x69mm
- Note: DSD output enable line to signal an incoming DSD stream.The card supports output mode only.
- NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
- KS/Wasapi/WDM/ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.
- Upon Request:The user can provide a custom USB VID-PID, a custom Device Name and a custom  CodeSign Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz

Drive download: Click here

Package included:
- 1 x Module
