AS5048a Magnetic Encoder Electronics Controller SPI 32Bit for Brushless Motor FPV

Availability: Out Of Stock

  • Price:$21.56
  • Price in reward points: 216 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.13 $20.70 $20.05 $19.19 Contact US
Quantity:

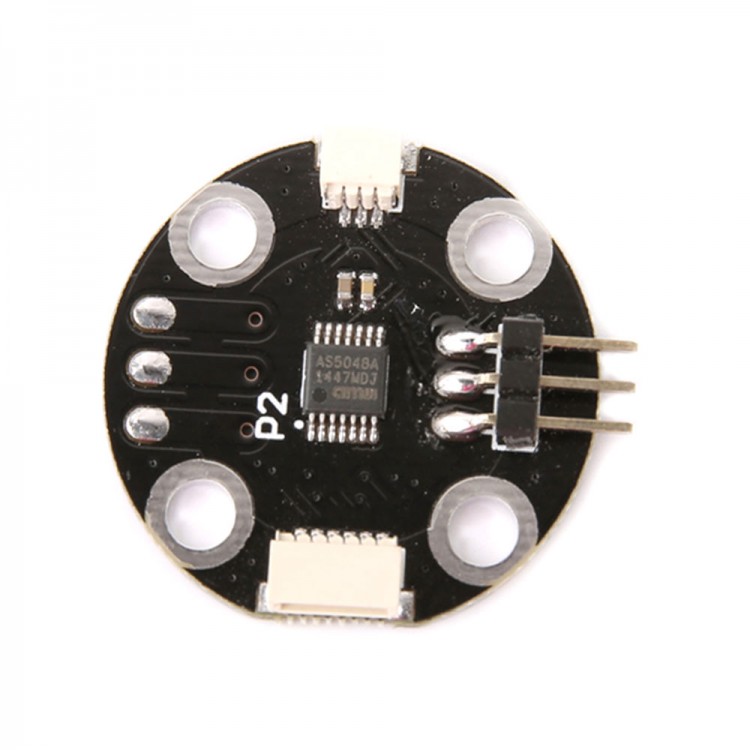

AS5048a Magnetic Encoder Electronics Controller SPI 32Bit for Brushless Motor FPV


Product Description:AS5048 is a 360-degree angle position sensor with a 14 bit high resolution output.The max accuracy is 0.05.Assuming linearization and averaging are performed through external microcontrollers. IC measure magnet rotation angle absolute position of the magnet and the hoare sensor.

key features and advantages:
- 360 degree contact angle position sensor
- Standardand SPI or high speed I2; C interface and PWM
- Through SPI or 1 2 siple programable zero;C order
- You do not need a programmmer.
- 14-bit full scale resolution 0.0219°/ LSB
- Angle accuracy:0.05% syatyem linearization and average
- Capacity device
- Air interstice transformation magnetic field input range:30MT - 70mT
-  -40~ + 150 environment temperature range
- 3.3V and 5V compatible
- 14 pin package,TSSOP package (5x6.4mm)

Magnet dimension:6mm x 2.5mm

Applications:
- Robot Joint detection
- Industrial engine position control (Use Alexmos system BLDC controller)
- Medical robots and fitness equipment

Package List:
- 1 x AS5048a Magnetic Encoder
