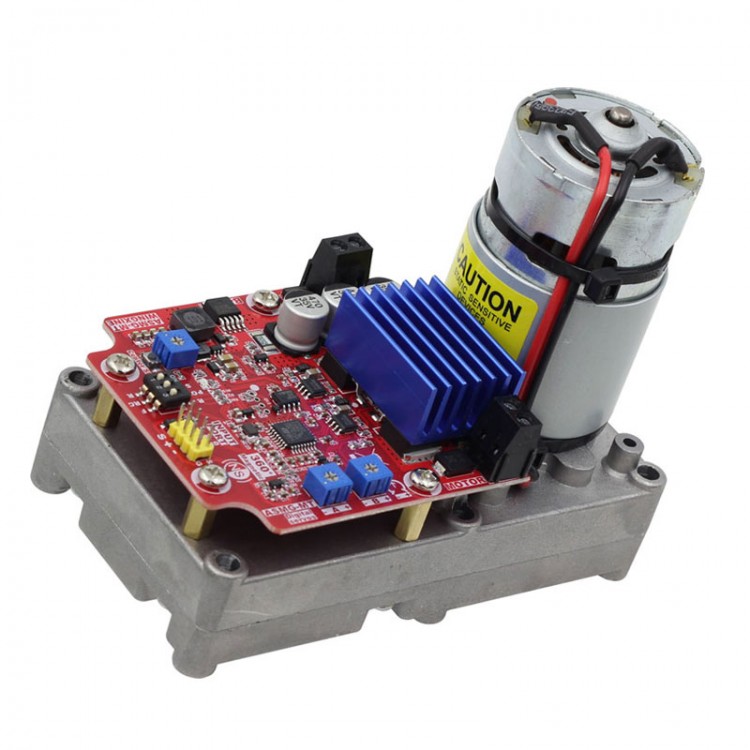

ASMG-MT 500KG High Torque Servo Magnetic Encoder 360-Degree High Torque Steering Servo For Robots

Availability: In stock, usually dispatched in 1 business day

  • Price:$76.32
  • Price in reward points: 763 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.79 $73.27 $70.98 $67.92 Contact US
Quantity:

ASMG-MT 500KG High Torque Servo Magnetic Encoder 360-Degree High Torque Steering Servo For Robots

Features:

- Suitable for servo controllers, wireless remote controllers for model airplanes and analog voltage control
- Alloy gear high power motor high torque output
- Aluminum alloy gearbox body is ultra-lightweight
- Easy to install and durable

Application:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angle
- Large camera pan/tilt remote control
- Various occasions requiring large torque angle control

Rated Parameters:
- Rated voltage: 12V~24V/DC (11V/MIN~30V/MAX.)
- No-load current: <500mA (current limit: 10A. It is recommended to use a switching power supply greater than 15A or battery)
- Limit angle: ±180° or 0°~360°(MAX.) The servo has electronic limit adjustment
- Control mode: RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control mode; 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multi-channel servo controller mode control. Analog voltage mode : 0V-3.3V input voltage (0V corresponds to 0°, 3.3V corresponds to 360°)
- Control resolution: 360°corresponding to 15Bit resolution (32768), for ARM 32-bit MCU, real digital port to read magnetic encoding data
- Materials: Gear and shaft: alloy steel; gear box body: cast aluminum
- Weight: 550g
- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >1,000,000 times/full load (conservative value)

Limit Parameters:
- Limit voltage: 11V~30V/DC (MAX.)
- Current limit: 10A±0.2A (MAX.)
- Working angle: ±180° or 0°~360° (MAX.)
- Control mode: RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency). Analog voltage mode: 0V-3.3V input voltage 0V corresponds to 0°, 3.3V corresponds to 360°
- Weight: 510g~560g

Product Specifications:

- Model: ASMG-MT
- Starting torque: 500kg.cm max.
- Holding torque: 500kg.cm max.
- Rated speed (24V power supply): 0.12s/60°

Package Included:
- 1 x Servo

Note:
- Battery is not included in the package, for demonstration purposes only.
