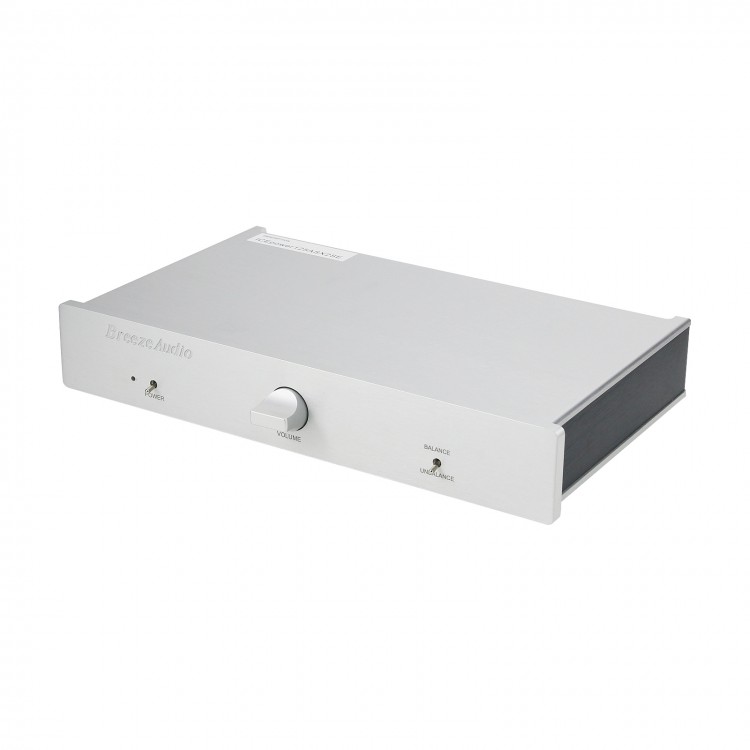

Assembled For ICEPOWER 125ASX2 Digital Power Amplifier Module 2x125W Enthusiast HiFi Power Amplifier

Assembled For ICEPOWER 125ASX2 Digital Power Amplifier Module 2x125W Enthusiast HiFi Power Amplifier

Features:
- Key performance: With power supply, stereo, dual channels
- Protection function: over-current, over-heat protection (need to add temperature switch), efficiency ≥90%, oscillation frequency 100KHz, ripple less than 1%
- Without feedback, instantaneous output current can reach 5-10 times the normal current, which is very suitable for high-power amplifiers
- CNC machining ultra-thin all-aluminum chassis
- Dimensions 320*51*188mm

Premium Components:
- Speaker output cable for AudioQuest, high quality audio signal cable
- Gold-plated AC power socket. Dual RCA input is more convenient to use
- For ALPS 50KX2 Potentiometer
- US for CMC RCA input port
- RCA channel selection, bid farewell to unplugging and plugging
- Retro toggle switch, more beautiful appearance

Performance Parameters:
- Rated power 1% THD+N, SE mode, 4Ω, 1kHz: 2 x 125W
- Rated power 1%, THD+N, BTL mode, 4Ω, 1kHz: 450W
- Maximum power 10%, THD+N, BTL mode, 4Ω, 1kHz: 550W
- Rated power 1%, THD+N, SE mode, 8Ω, 1kHz: 2 x 65W
- Rated power 1%, THD+N, BTL mode, 8Ω, 1kHz: 250W
- Maximum power 10%, THD+N, BTL mode, 8Ω, 1kHz: 300W
- Bandwidth 8Ω, -3dB point, SE mode: 120kHz
- Frequency response, 20Hz-20kHz, 2Ω-8Ω load range: +/- 0.5dB
- Damping factor 8Ω, 100Hz: >500
- Total harmonic distortion THD+N 1kHz, 1W: 0.003%
- Dynamic range signal-to-noise ratio, SE mode: 117 dB
- Dynamic range signal-to-noise ratio, BTL mode: 121dB
- Dimensions: 320*51*188mm
- Impedance: 4-8Ω
- Channels: 2

Package Included:
- 1 x Set of Power Amp

Note:
- It is assembled and ready to use.
