| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $46.42 | $45.48 | $44.05 | $42.16 | Contact US |
Finished 3D Printing Tracked Tank Chassis 6V 370 Reduction Motor Version Intelligent Tank Chassis Support DIY
$75.14
Assembled RC Tank Chassis Tracked Chassis DIY Climbing Car 3D Printing Load 5KG With Motors 370
$49.34
Tracked Robot Tank Chassis Shock Absorption Suspension Assembled DIY Toy Car 3D Printing w/ Motors
$47.37
Assembled RC Tank Chassis Tracked Chassis DIY Climbing Car 3D Printing Load 3KG With Motors 280
Attention:
The crawler chassis is made of 3D printing technology (fdm type printer), so the surface is not beautiful, rough textures, cracks, etc. cannot be avoided, but it does not affect the use. Please make sure that you don't mind before purchasing.
Features:
- High-power motors
- Load capacity 2.5-3KG
- Two motors respectively control the forward and reverse rotation of the crawler on one side

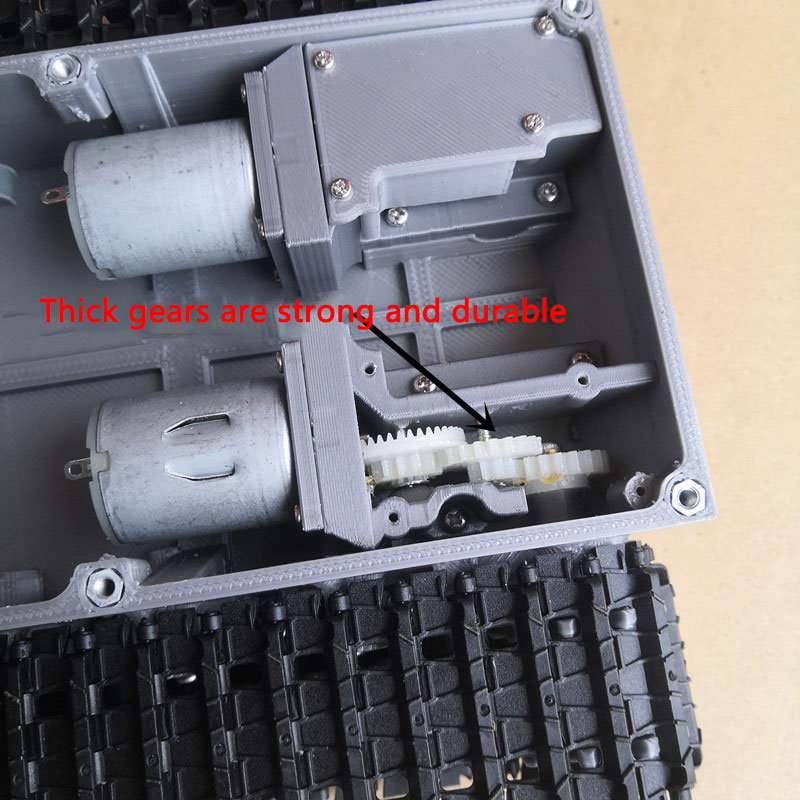

- Thick gears are strong and durable
- The whole car has nearly 28 bearings

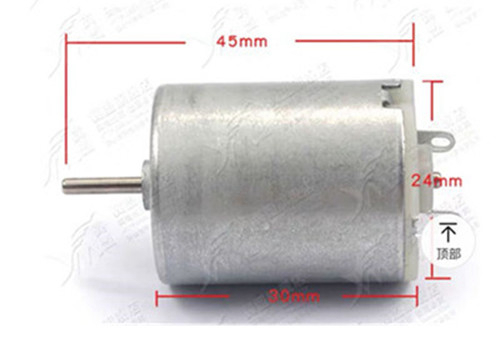

280 Motor Parameters:
- Size: 45*24*30mm
- Shaft diameter: 2mm
- Shaft length: 12mm
- Rated power: 7.2V 380MA 13500 rpm
- No-load voltage/current: 3V 250MA 6800 rpm; 6V 350MA 11000 rpm; 9V 420MA 16800 rpm
Package Included:
- 1 x Tank Chassis
Note:
- It is assembled.
- It comes with motors but without battery or remote controller. It is a DIY product.
