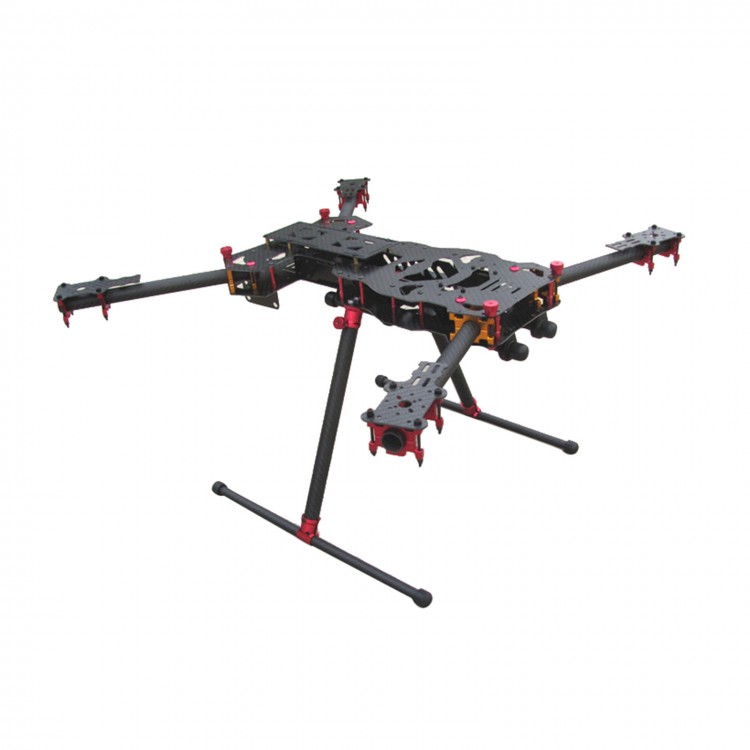

ATG-18-H4-12 Full Carbon Fiber Folding Quadcopter Kits for FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$182.95
  • Price in reward points: 1830 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $179.29 $175.63 $170.14 $162.83 Contact US
Quantity:

ATG-18-H4-12 Full Carbon Fiber Folding Quadcopter Kits for FPV Photography

Description:

- ATG-18-H4-12, indicates the battery mounting tube is 12X10X250mm

Parameters:
- Unfolded wheelbase: 680mm, front axis max length is about 471mm
- Prop distance: max support 12-13inch, recommend to use ATG 1238 prop enchanced version
- Arm dia: 3K full carbon 18X16mmX235mm
- Material: 1.5mm full carbon 3K
- Components: 7075 aluminum CNC components
- Center board height: 30mm
- Motor pitch: support most disc motor pitch and special 30mm pitch (base dia>=51mm)
- Weight: 880g (Including landing gear)
- Flight control damper plateform: built in
- Folding specs: 390*260mm*265mm
- Control mode: quadcopter X shape control mode or X shape coaxis dual prop eight rotors controlling mode

Advantages:
- Quadcopter main axis adopts 3k full carbon tube 18mm, with 1.5mm full carbon fiber board, and 7075 aerial aluminum material
- 4 holes to fix the 18MM carbon fiber tube, easy to fix aircraft components and motor
- The inner two holes are to fix tube , the outside two holes are used for motor base or mobile holes, easy to solve the balance problem
- 18MM tube dia is thicker than 16mm, more anti-damper, or can be added two 16*14mm tube at the outside

Features:
- 18MM arm fixing components function: one time to balance four fixing bases
- Hand nut can make the dismentle more quick, folding function, to make the fixed arms stable and cannot be moved, no space to produce vibration.
- If you want to use the bigger motor, or think 18mm carbon fiber tube is not strong enough, 25mm tube aircraft can be considered
- Arm rotating pitch adopts 12.9 grade, high strength M3 screw can be fixed both head and tail, working with M3 anti-slip nuts with large spacer, solving the screw loose and dropping screws phenomenmon, larger spacer is to prevent the damages to carbon board caused by screws, enhancing the using life
- Battery board can be moved back and forth to adjust the changes caused by aircraft gravity and folding shape
