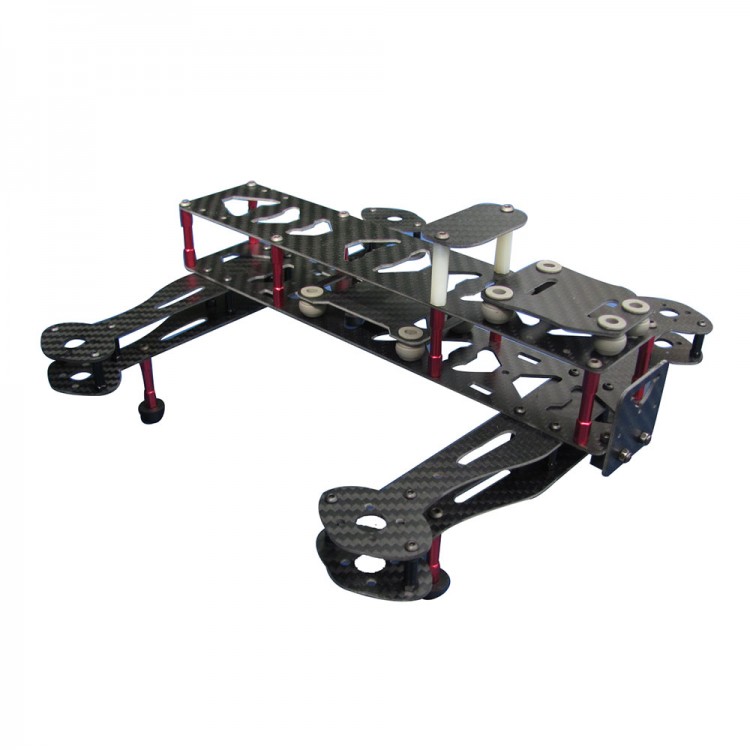

ATG 280 H Micro Quadcopter Small QAV-280 Carbon Fiber Frame Kit
Description:
- ATG-280 QAV H structure is micro size with some new ideas
- Short wheelbase aircraft has some disadvantages, cause the distance betwwen motor and flight control is comparably shorter than normal aircarft, so the flight control is easily effected by the high frequency vibration by motor
- The added flight control damper base is to reduce the bad effect caused by motor
- Light weight, small size, long lasting time, easy modification
- Carbon fiber body frame structure
- Body board thickness: 1.5mm
- Arm board thickness: 1.5mm(double layer)
- With CCD HD camera installaion
- Body adopting aluminum alloy column connection, guarantee the body strength
Parameters:
- Diagonal wheelbase: 280mm
- Empty aircraft weight: 170g
- Board material: 3K mixed carbon fiber 1.5mm
- Aluminum column: center board M3x30, main shaft M2.5x15
Recommended configuration:
- Motor: MT1806 2280KV x 4
- Prop: 5-6 inch carbon fiber prop x 2 pairs
- ESC: 10A x 4
- Battery: 1550mAh 25C 11.1V
Type:
- QAV-280 Carbon fiber, the material is carbon fiber board and 7075 aluminum nut column structure
