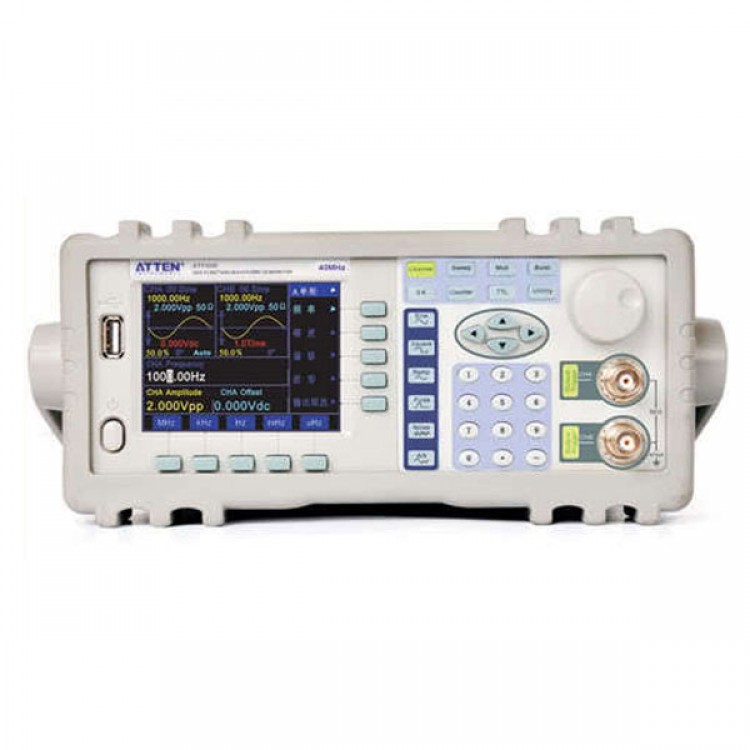

ATTEN DDS Waveform Digital Function Signal Generator 40MHz ATF40D Tester
Description:
- ATF40D series Function generator uses Direct Digital Synthesis (DDS) technology. Its outstanding performance andsystem features make it a perfect solution for your testing requirement. The simplified and optimized design of the front panel and dual-language (English/Chinese) TFT display interface make your testing much easier for operation and observation. Additionally, the extendable optional functions can also improve your system characteristics.
Features:
- Direct Digital Synthesis(DDS) technology, 2 independent output channels
- 3.5-inch TFT LCD display
- 32 kinds of standard or build-in fixed waveforms
- Minimum stable output waveform: 1mV(50Ω)
- Multiple modulation functions: FM, FSK, ASK, PSK
- Frequency sweep, amplitude sweep, burst and A+B functions
- Count the frequency, period, amplitude RMS value or peak-to-peak value
- Over voltage, over current, short circuit protection, reverse voltage protection.
- Optional configurations: RS232 interface, USB interface, Frequency Counter, Power Amplifier
Specfication:
| Waveform type | Sine,square,pulse,DC |
| Waveform length | 4~16000 points |
| WAVEFORM | WAVEFORM |
| Sample rate | 180Msa/s |
| Waveform amplitude resolution | 10 bits |
| Sinusoidal Harmonic Rejection | ≥50dBc(≤1MHz),≥40dBc(1MHz~20MHz) |
| Sine wave Total distortion | ≤0.5%(20MHz~40MHz) |
| Pulse wave and square wave | Rise or fall time: ≤20ns,overshoot |
| Square wave duty cycle | 50% |
