| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $56.82 | $55.66 | $53.92 | $51.60 | Contact US |

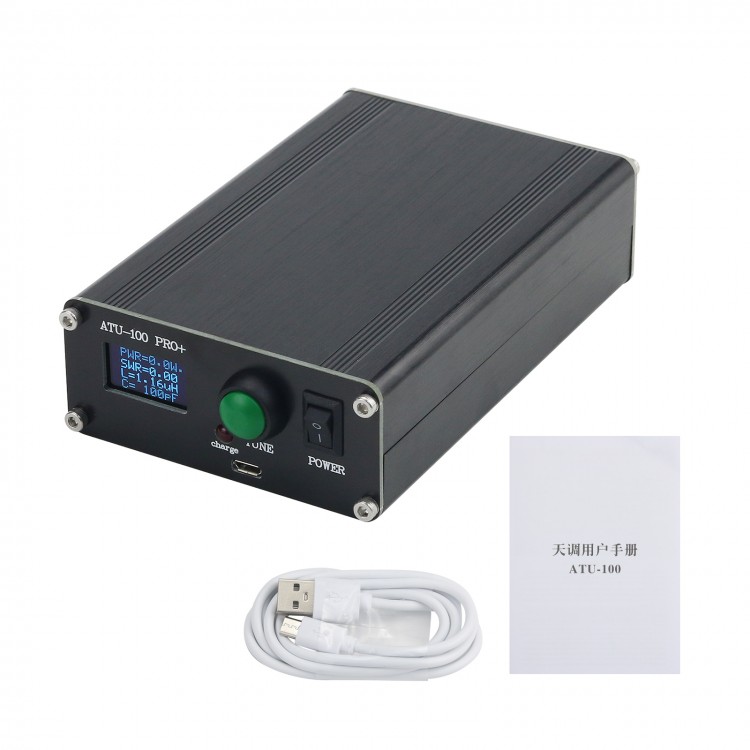

ATU-100 PRO+ 100W 1.8-50MHz Automatic Antenna Tuner Assembled with 0.96-Inch OLED Display and Shell
Features:
- 0.96-inch OLED display
- Frequency 1.8-50 MHz
- Power supply voltage range: 10-15V DC
- Maximum current consumption: 300 mA
- Maximum working power: 100W
- Maximum possible measured power: 150W
- 1W: It is necessary to start setting the minimum power
- Minimum possible measured power: 0.1W
- Step for measurement on powers under 10W: 0.1W
- Step for measurement on powers above 10W: 1W
- Power measurement accuracy: 10%
- Specified maximum inductor: 8.4 uH capacity
- The minimum installation step of inductor: 0.05μH
- Maximum installation capacity: 1870 pF capacitor
- Minimum installation step: 10 pF
Package Included:
-1 x Automatic Antenna Tuner
-1 x USB Cable
-1 x User Manual
Note:
- The product is assembled and with shell.
- Due to its design, stable standing wave value cannot be measured when the power is lower than 10W, so the adjustment work cannot be guaranteed. QRP radio users please not purchase the product.
