| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $16.35 | $16.01 | $15.51 | $14.85 | Contact US |

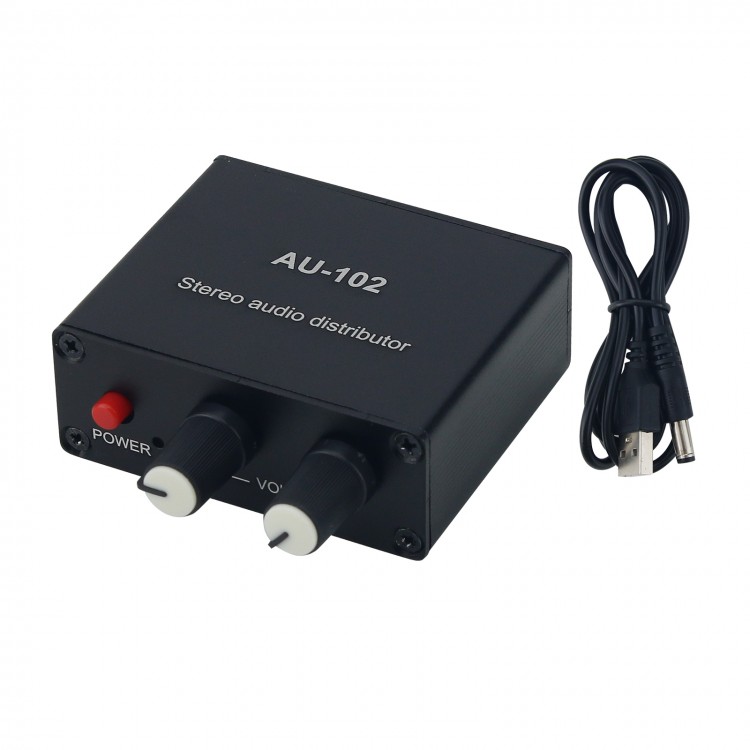

AU-102 Stereo Audio Distributor Audio Splitter Box Supporting 1 Input 2 Outputs + USB Power Cable
Features:

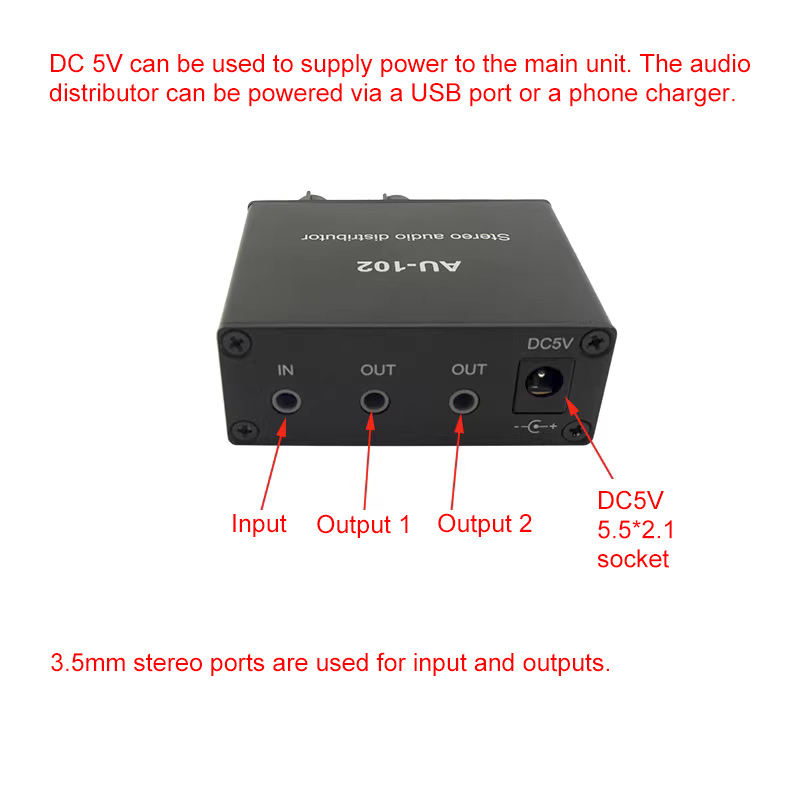

- Input and outputs are 3.5mm interface, enabling two-channel signal

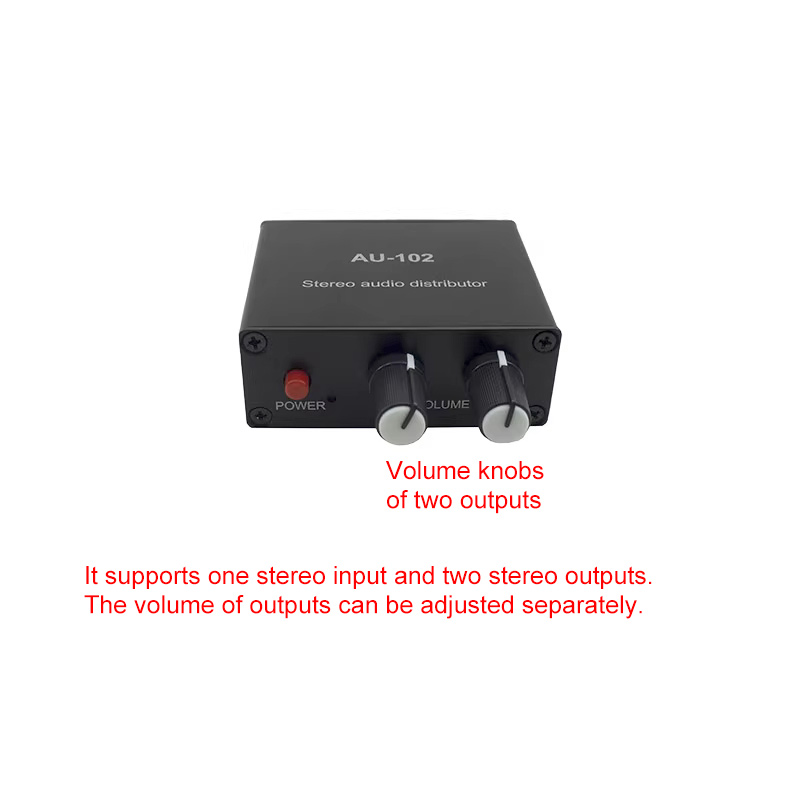

- The audio splitter supports one input and two simultaneous outputs. The outputs can be connected to audio equipment such as headphones and audio amplifiers, and the volume can be adjusted independently
- Supply voltage is DC5V. Quiescent working current is 100mA. It has a built-in isolated boost power supply, which converts 5V to ±9V to provide working voltage for the internal circuit. It is recommended to use a high-quality pure power supply to supply the power, which can ensure that the sound is interference-free and clear
- Gain: 3.5dB
- Input impedance: 100K; output impedance: 16Ω-600Ω; maximum output power 32Ω/500mw
Specifications:
- Size: about 8.3 x 5.3 x 2.4cm/3.3 x 2.1 x 0.9" (LxWxH)
- Weight of main unit: about 88g/0.2lb
Package Included:
- 1 x Main unit
- 1 x USB power cable
