AUA28U Optical Fiber Ranger OTDR Meter 5M-60KM Optical Time Domain Reflectometer Visual Fault Locator
Features:
- Simple optical time domain reflectometer
- Easy to find breakpoints, distance and attenuation
- Test the point of failure and loss. Curve and list display mode
- Simple operation, one-key test
- 3M short blind zone
- Test distance 5M-60KM
- Automatically save 5 sets of data
- SC and FC are common, different interfaces can be replaced, the operation is simple and practical. Equipped with FC, SC adapters
- Stable and powerful, with good penetrating effect. Replaceable ceramic core
- 2.5mm SC/FC/ST universal interface
- AUA28U, UPC interface, single wavelength 1550nm (AUA28A, APC interface, single wavelength 1550nm is also available. If you need it, please contact us)
OTDR Meter:
- Working wavelength: 1550nm±20nm
- Dynamic range: 18dB
- Fiber type: SMF single-mode fiber
- Connector type: FC/UPC (SC interchangeable)
- Maximum measuring distance: 60km
- Unit of measurement: m/km
- Event dead zone: 3m
- Attenuation blind zone: 10m
- Distance accuracy (reflection event): ±(1m+2x10-4x distance)
Visual Fault Locator:
- Working wavelength: 650nm±20nm
- Output power: ≥2mW
- Connector type: 2.5MM SC/FC/ST general interface
Machine Parameters:
- Working temperature: -10℃ to +40℃
- Storage temperature: -40℃ to +70℃

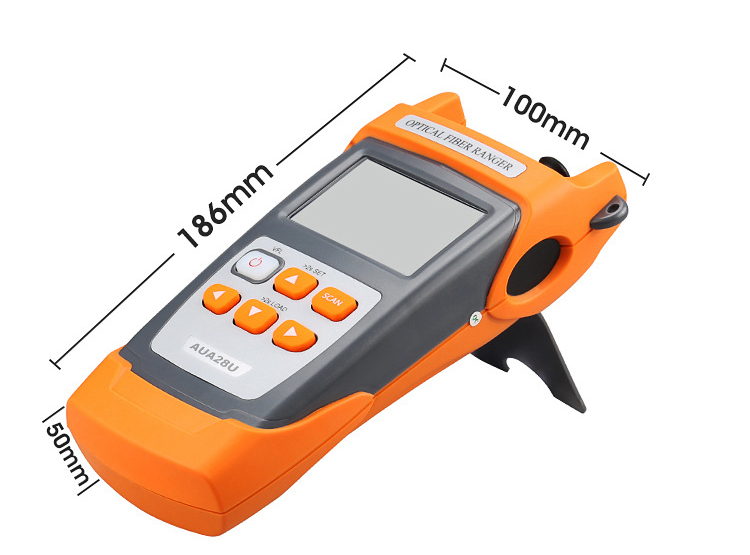

- Size: 186mmx100mmx50mm
- N.W.: ≤280g
Package Included:
- 1 x OTDR
- 1 x Portable Bag
- 1 x Instructions
- 1 x Ceramic Core
- 1 x SC Adapter
Note:
- It is recommended to use 3pcs AA batteries which are not included.
